ER-6100

Dual Channel Wireless Microphone System

Product Description Functional Features Details Components Accessories FAQ

Product Description

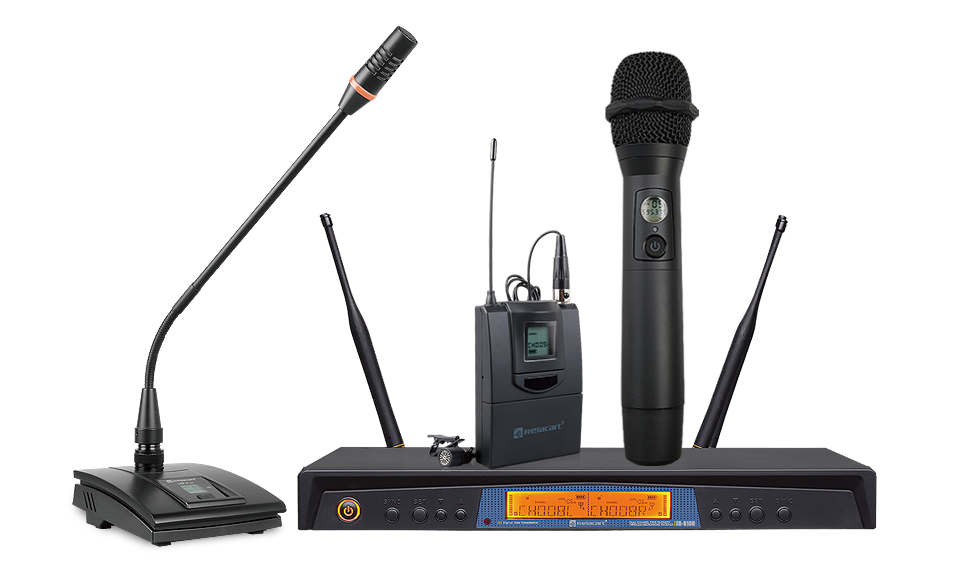

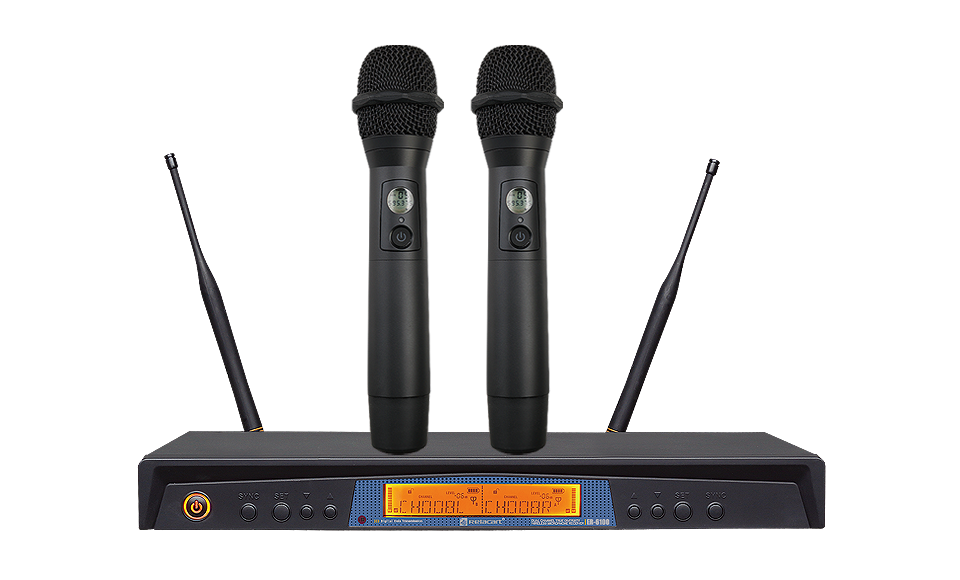

ER-6100 is a true diversity wireless receiver independently developed by Relacart; optional handheld microphone, body bag lavalier microphone or head-mounted microphone, desktop gooseneck conference microphone; adopt true diversity FM superheterodyne receiver to ensure RF reception The stability of the signal and the anti-interference of the receiver itself; the operating frequency range is 521.25MHz-936.85MHz according to the radio wave control laws and regulations of various countries.

Functional Features

IR Infrared

With [IR] infrared automatic frequency matching function, press the [SYNC] button, the transmitter can automatically and accurately lock the working frequency of the receiver.

Extendable Antenna

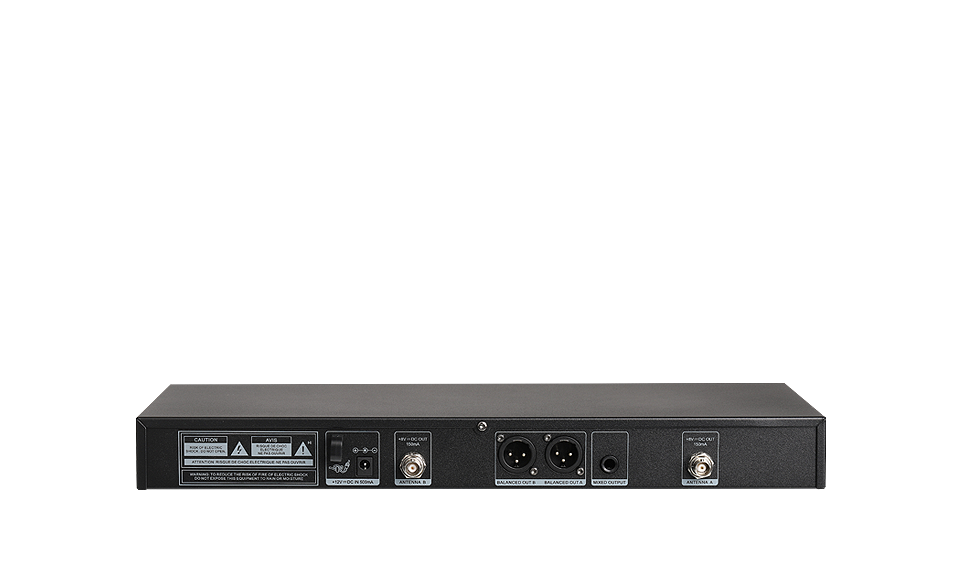

BNC antenna port can be connected to coaxial antenna and extension antenna, and provides antenna power supply voltage, supports connection to Relacart’s antenna distribution system, expands multiple devices using a set of antennas and enhances receiving distance and signal stability.

Multiple Channel Group Mode

The channel group mode is selected, and each frequency band has 50 channel groups for user selection.

Four Frequency Band Selection

128MHz wideband transmitter, receivers of four different frequency bands can be used interchangeably, which greatly facilitates KTV debugging and management.

Audio Companding Circuit

Combined with Relacart's classic audio companding circuit, it reduces the noise in the transmission of sound from radio waves, and maximizes the sound pickup effect of the product in use.

[AFS] Automatic Frequency Selection

Support Relacart "AFS" automatic frequency selection function, quickly and accurately scan and calculate interference-free working channels according to the preset frequency.

Details

Connection Diagram

Frequency Response

Polar Pattern

Specifications

Package Contents
