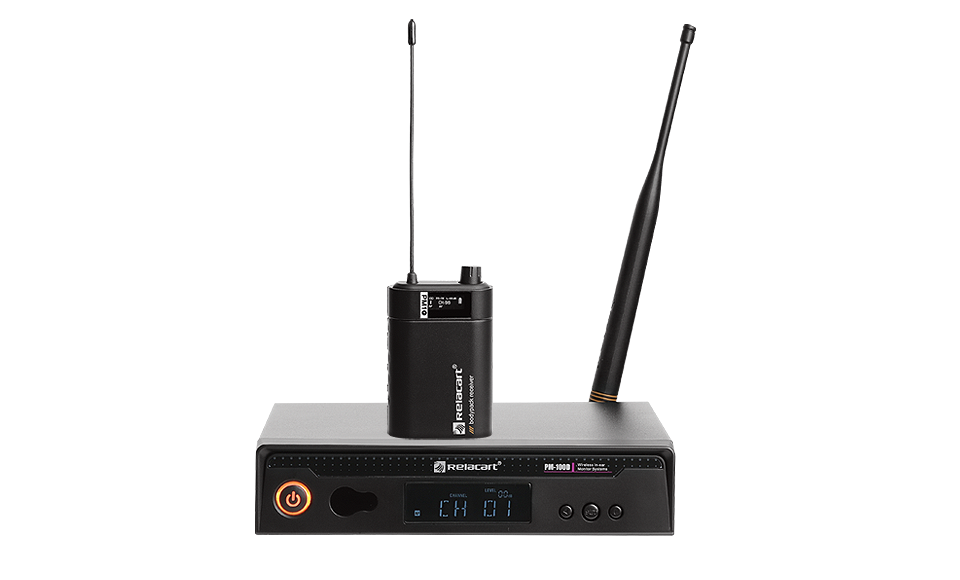

PM-100D

Stereo Wireless In-Ear Monitor System

PM-100D is a stereo wireless in-ear monitor system. The PM-100D receiver is made of plastic and weighs only about 55 grams (without battery). It is one of the lightest transmitter pockets on the market. The receiver adopts bright OLED display. At the same time, it has built-in 1-99 frequency group channels for selection, and can select the cleanest channel in a complex environment. Digital transmission technology can convert the input sound into a digital signal and send it to the receiver. During the digital communication transmission process, it can protect the integrity of the audio and prevent the accumulation of noise, so it is very suitable for: live streaming and small bands.

Product Description

PM-100D is a stereo wireless in-ear monitor system. The PM-100D receiver is made of plastic and weighs only about 55 grams (without battery). It is one of the lightest transmitter pockets on the market. The receiver adopts bright OLED display. At the same time, it has built-in 1-99 frequency group channels for selection, and can select the cleanest channel in a complex environment. Digital transmission technology can convert the input sound into a digital signal and send it to the receiver. During the digital communication transmission process, it can protect the integrity of the audio and prevent the accumulation of noise, so it is very suitable for: live streaming and small bands.

Functional Features

UHF Transmission Frequency Band

Using the UHF frequency band, multiple systems can be used at the same time, the transmission is more stable and zero latency.

Practical Functions

• 1U Half-Rack chassis made of metalChassis Specifications • The transmitter and receiver have a simple and bright multi-function display, which can make it easy for users to operate various settings.

Easy to Carry

The receiver's housing is made of a strong and lightweight material, weighing only 55 grams.

Two output modes

Stereo and mono output modes can be selected

Widely Applicable

Long transmission distance, suitable for various occasions.

Multiple audio outputs

The receiver not only has a headphone output, it also has a line output, which you can connect to an active speaker to create a wireless auido transmission system.

Details

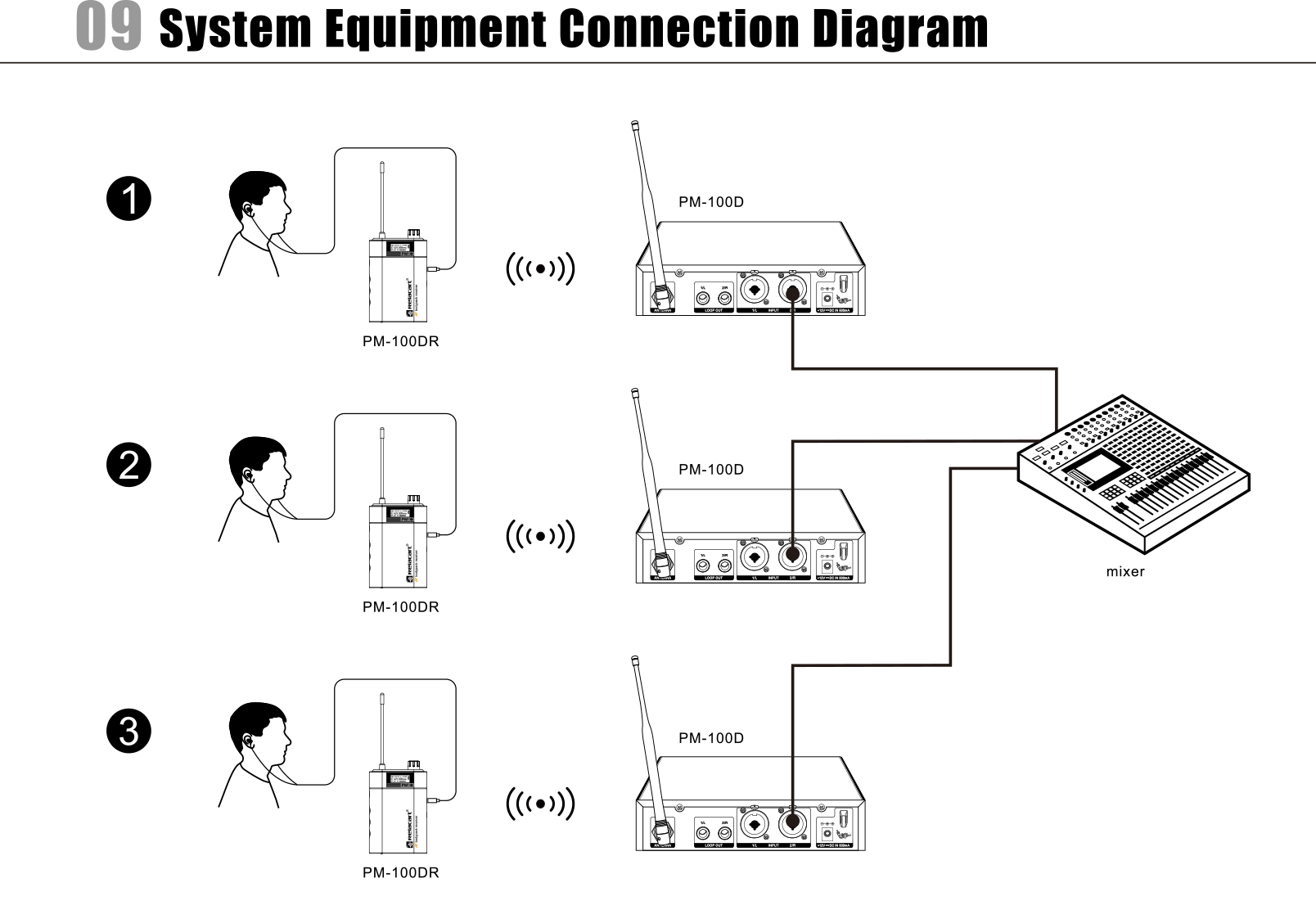

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

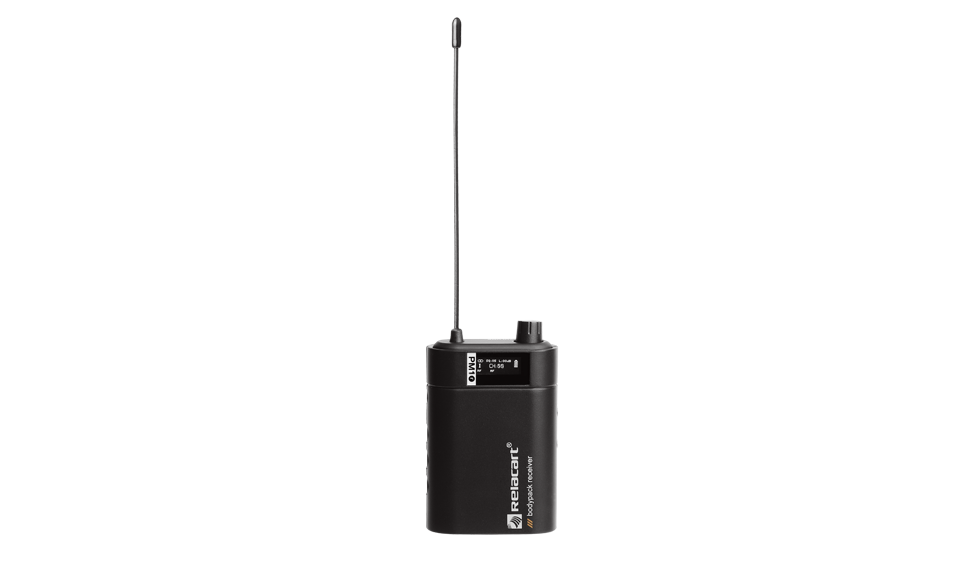

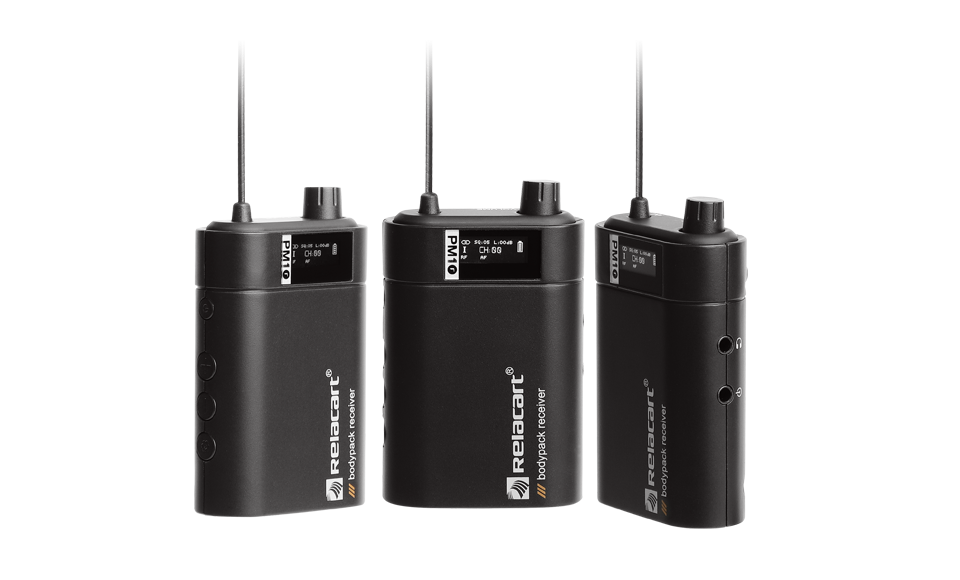

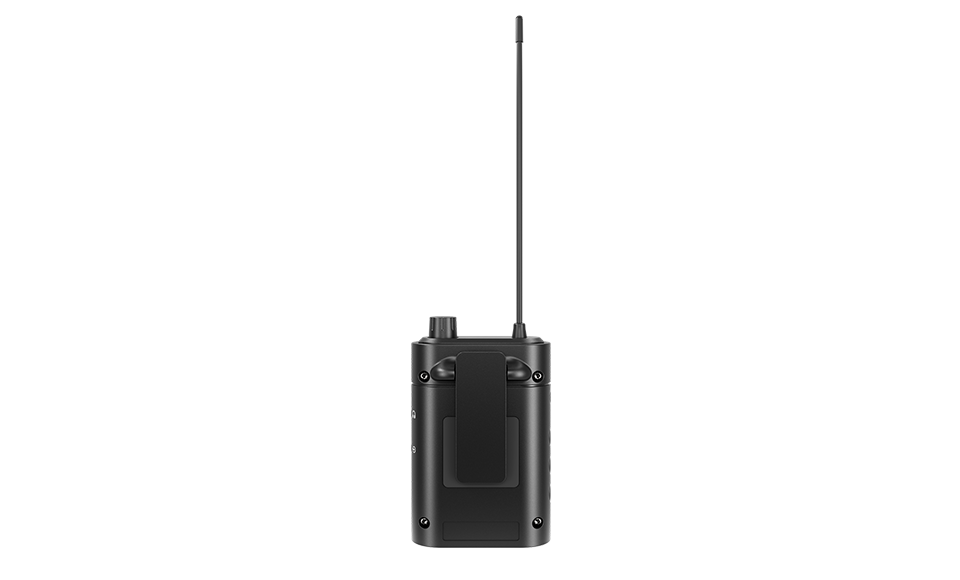

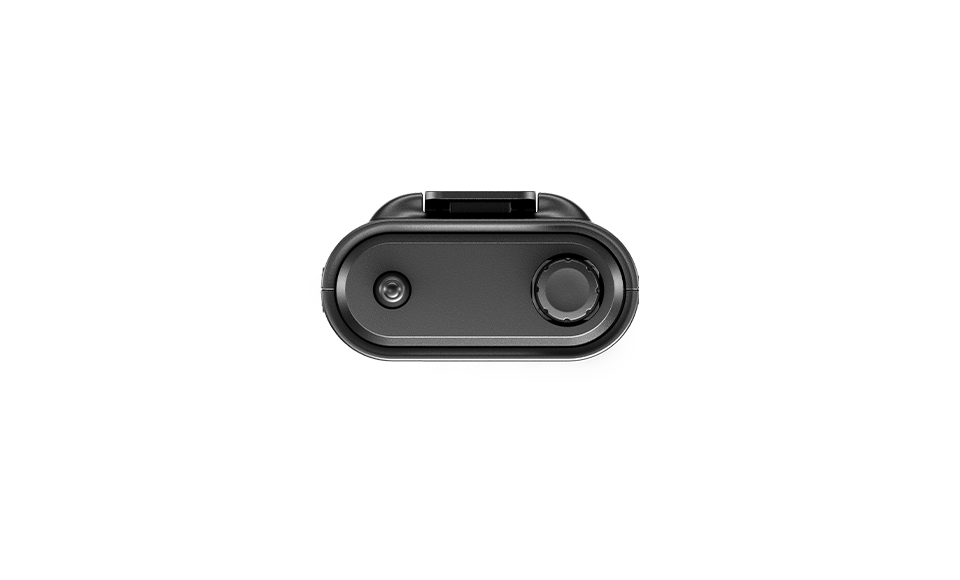

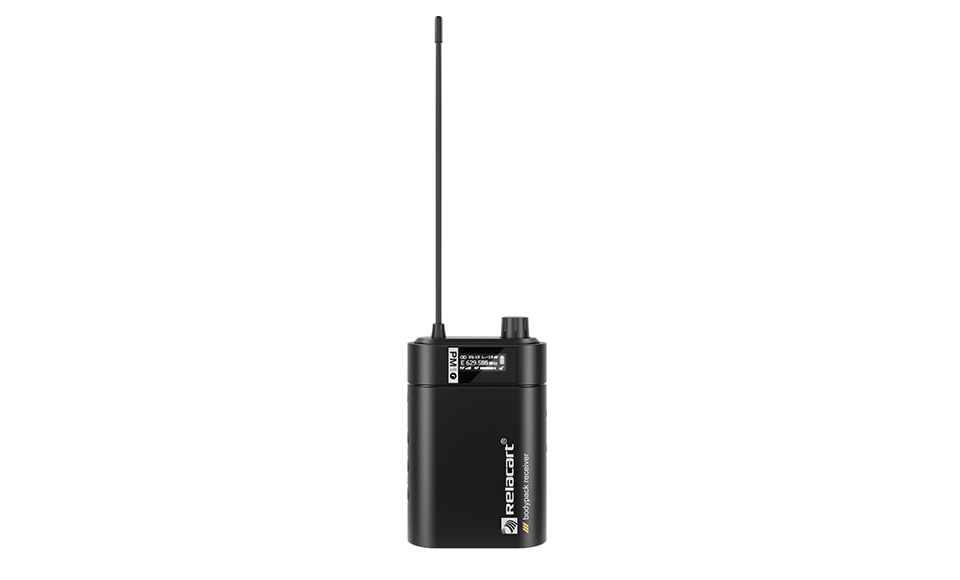

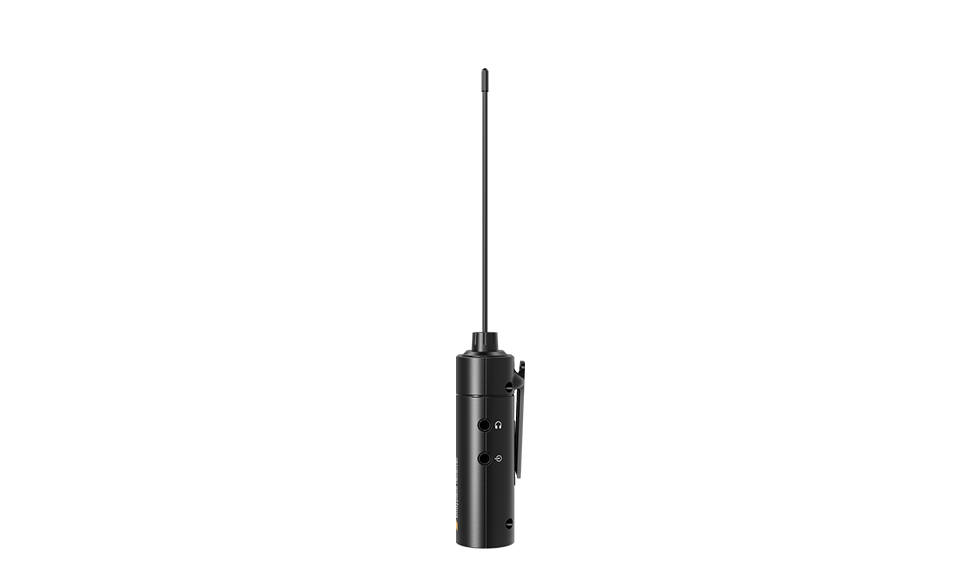

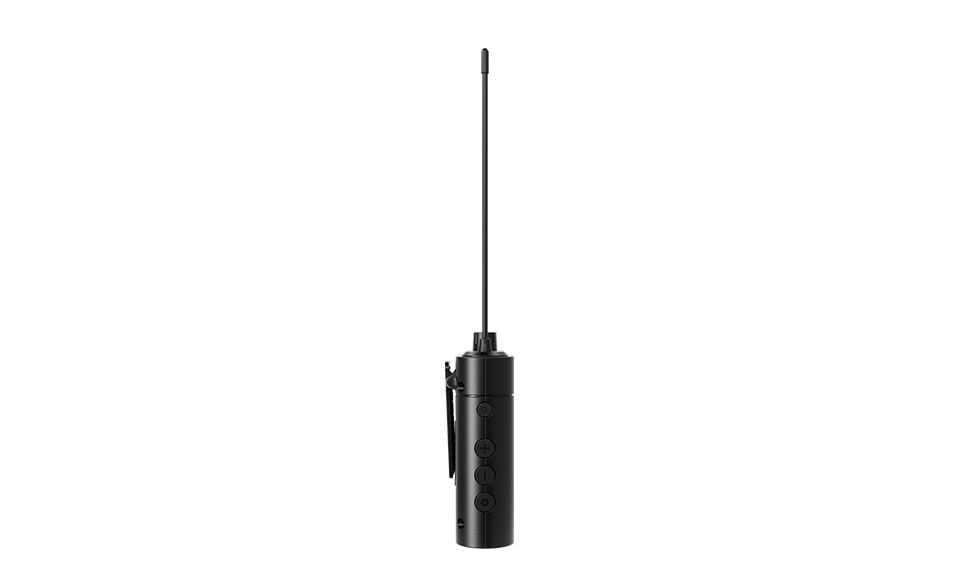

PM-100DR Stereo Mini Receiver

● Receiving Method: Antenna reception

● Carrier Frequency Range: 521.25MHz-936.85MHz

● Modulation Method: Integrated mode

● Comprehensive T.H.D: <0.9%@1KHz

● Stereo Separation: ≥65dB at 1KHz

● Comprehensive Frequency Response: 20Hz-20KHz ±3dB

● Batteries: AA x 2

● Current Consumption: 140mA (Typical)

● Battery Life: ≤8 hours

● Effective Working Distance: 80 meters (open place)

● Output Socket: Φ3.5mm stereo  headphone socket

● Output Power: 2×40mW at 1KHz (T.H.D: 0.03%)

● Dimensions (mm): 198 (H) × 52.5 (W) × 25 (D)

● Weight: approximately 55g  (without battery)

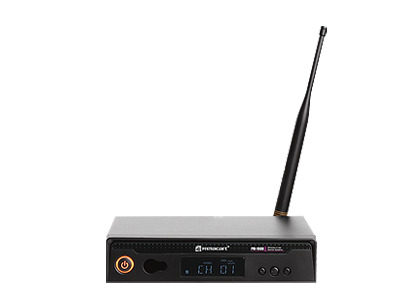

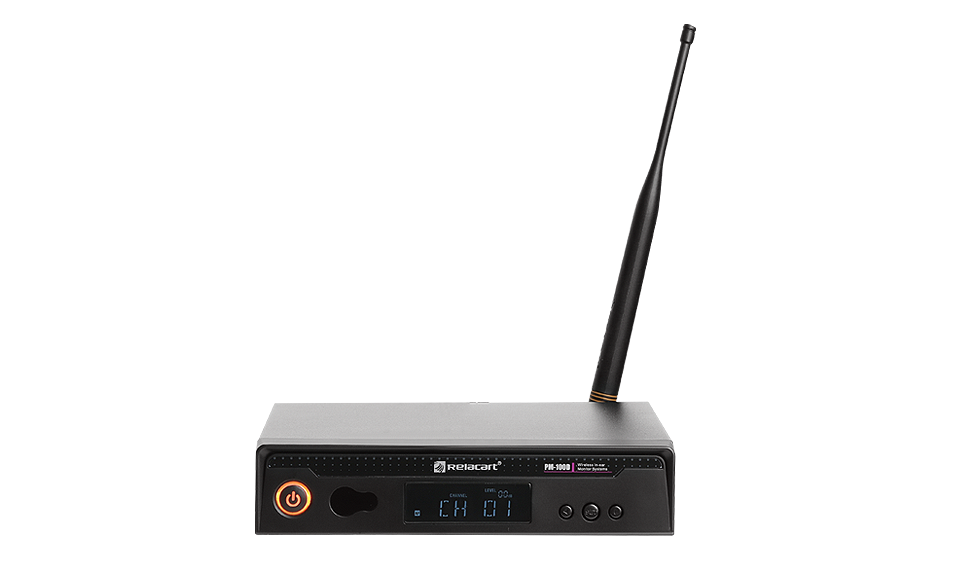

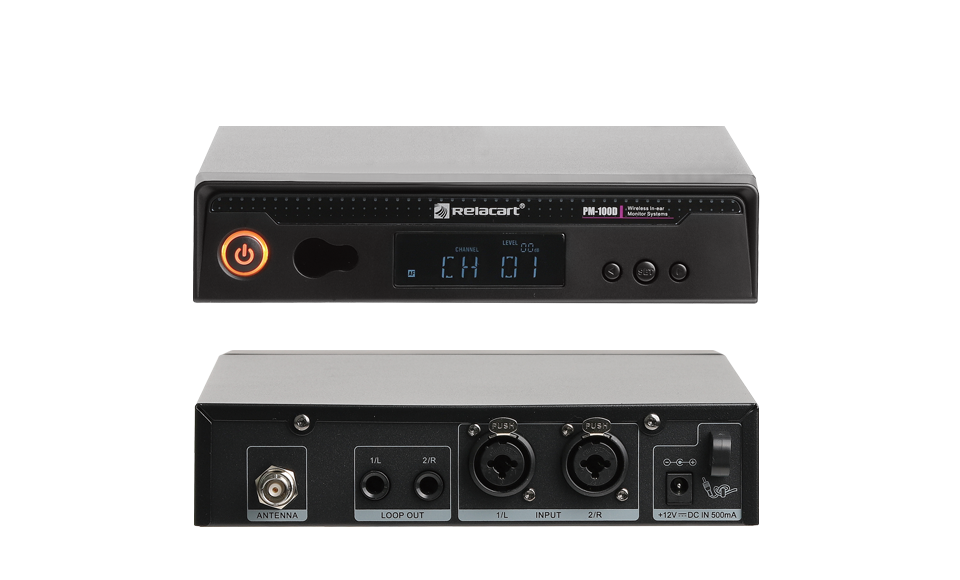

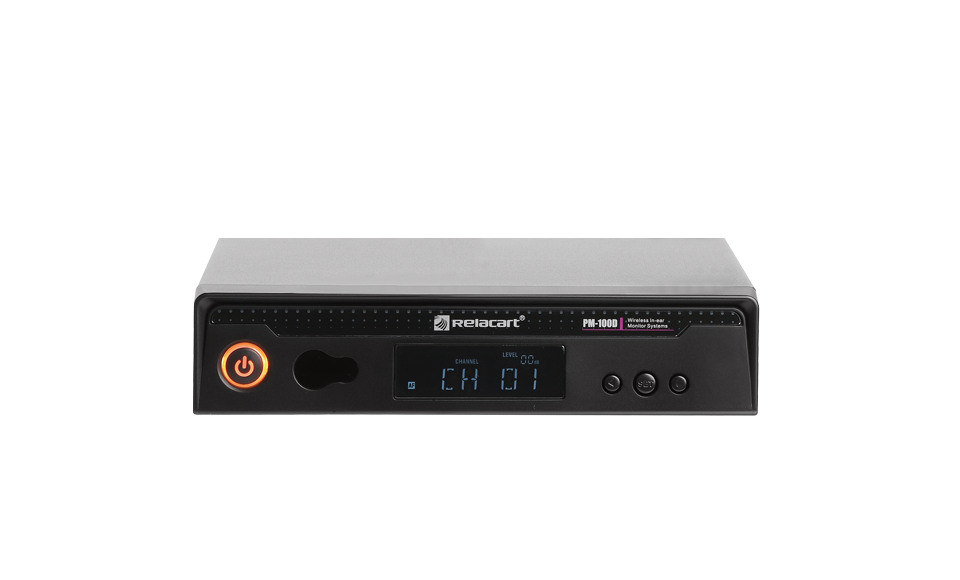

PM-100DT Stereo Transmitter

● Chassis Specification: 1U Half-Rack

● Carrier Frequency Range: 521.25MHz-936.85MHz

● Modulation Method: Integrated mode

● Comprehensive T.H.D: <0.9%@1KHz

● Frequency Bandwidth: 32MHz (depending on the region)

● Comprehensive Frequency Response: 20Hz-20KHz ±3dB

● Output Power: 50mW

● Current Consumption: 160mA

● Power Supply Mode: DC 12V

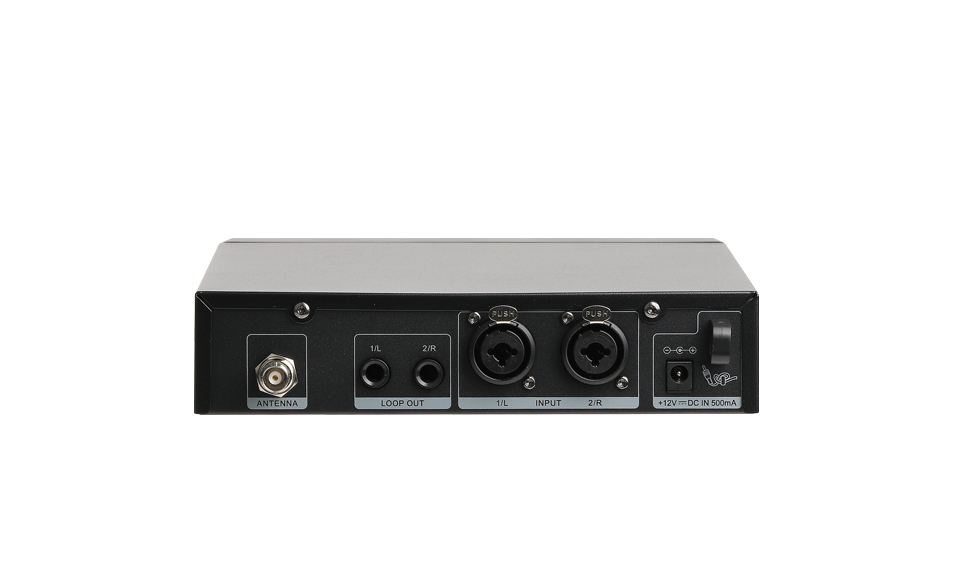

● Audio Output: Φ6.3mm balanced socket × 2

● Audio Input: XLR and Φ6.3mm    composite socket

● Dimensions (mm): 205(W)×43(H)×206(D)

● Weight: approximately 1kg
