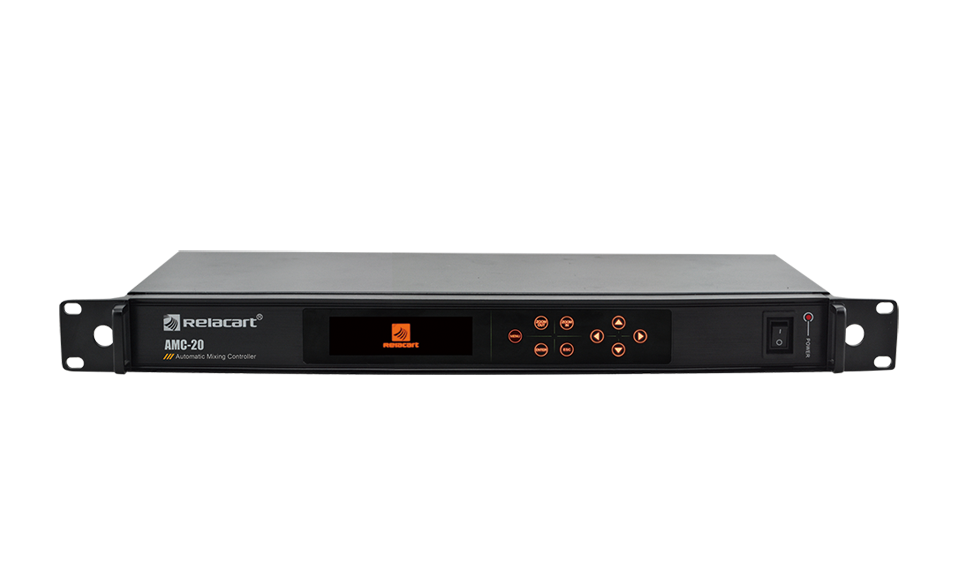

AMC-20

AUDIO AND VIDEO INTEGRATED CONTROL SYSTEM

5 balanced audio mixing inputs and 1 balanced audio mixing input; 5-way mixer data RJ11 interface, 4-way high-definition video input and 1-way high-definition video output, two camera control interfaces, the connected mixer can automatically calculate and set the frequency point without mutual interference.

Inquire Now

AMC-20

Product Description Functional Features Details Support

Product Description

Functional Features

HD OLED display

Front panel, equipped with 256x64 dot matrix OLED display and navigation touch buttons, camera control buttons;

Camera and audio input and output

DC-12V power supply, 5-way balanced audio mixing input and 1-way balanced mixing input; 5-way mixer data RJ11 interface, 4-way HD video input and 1-way HD video output, two camera control interfaces; External RS-232 interface;

Chassis standard

Standard 1U aluminum panel, all metal chassis;

Automatic frequency calculation

Support automatic frequency calculation of the system; The connected mixer can automatically calculate and set mutually noninterference frequencies, up to 20 clean frequencies.

Details

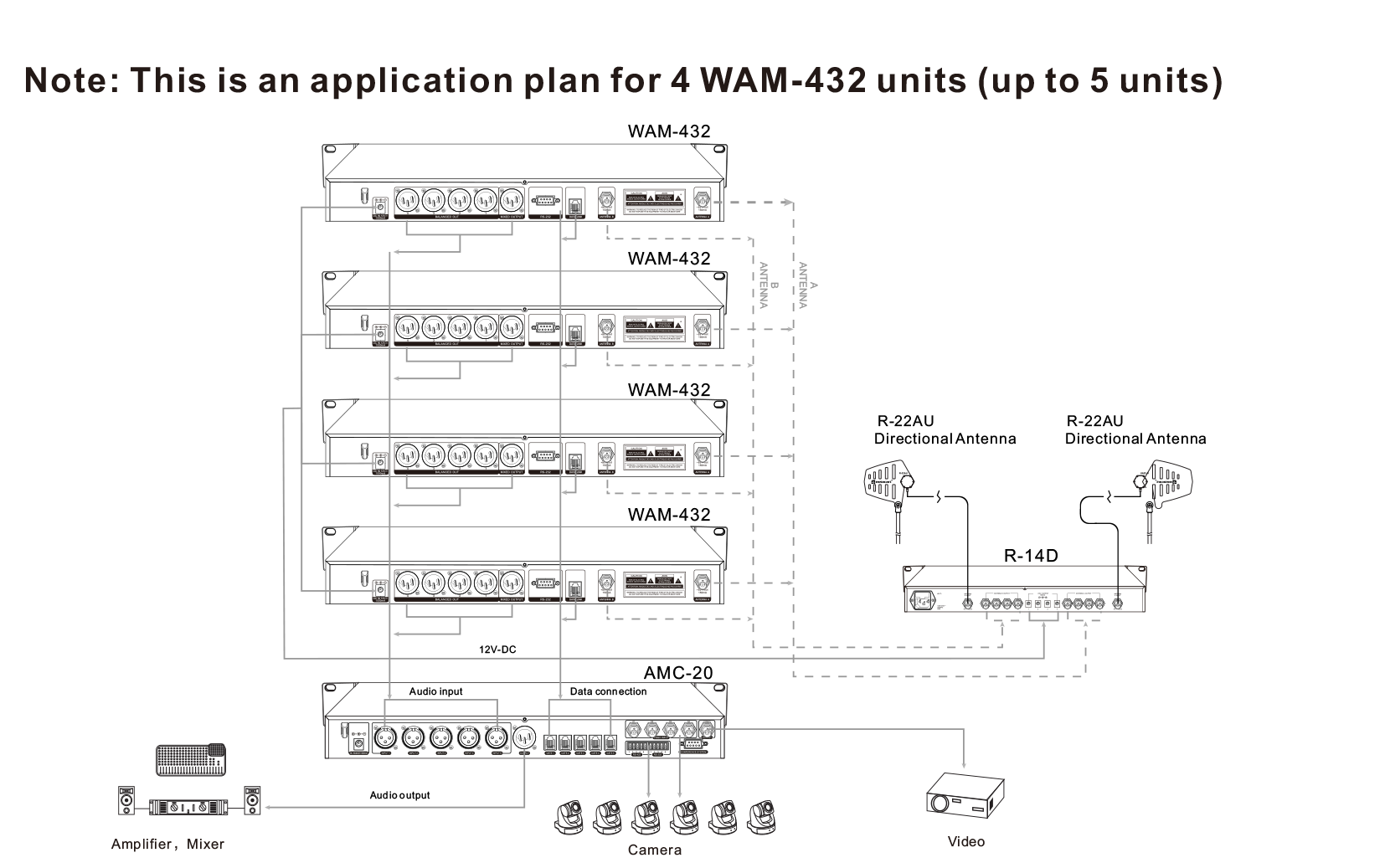

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Power supply：DC 12 V

Current：0.23A

Frequency response：20 Hz to 20 kHz+0/-1dB

Total harmonic distortion：<0.03% (f=1KHz)

Signal to noise ratio：>98 dB (THD<1%, f=1KHz)

Dynamic range：98dB

Video input：BNC female

Video output：BNC female

Video interface impedance：75 ohms

RS-232 control protocol interface：5P fast connection

RS-422 control protocol interface：5P fast connection

RS-232 control protocol interface：9-pin serial port

Data interface：RJ11

Audio output：XLR female

Audio input：XLR male

Display type：OLED

Button mode：Touch Button

Dimensions (mm)：410 (W) x43 (H) x 206 (D)

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

AMC-20Operationmanual

Product Brochure

AMC-20-brochure
