Home > Products-zong > Products > Dante & Analog Conference Microphones > AL Gooseneck Microphone Series > Gooseneck Microphone

AL-19N/19T/19F

Gooseneck Microphone

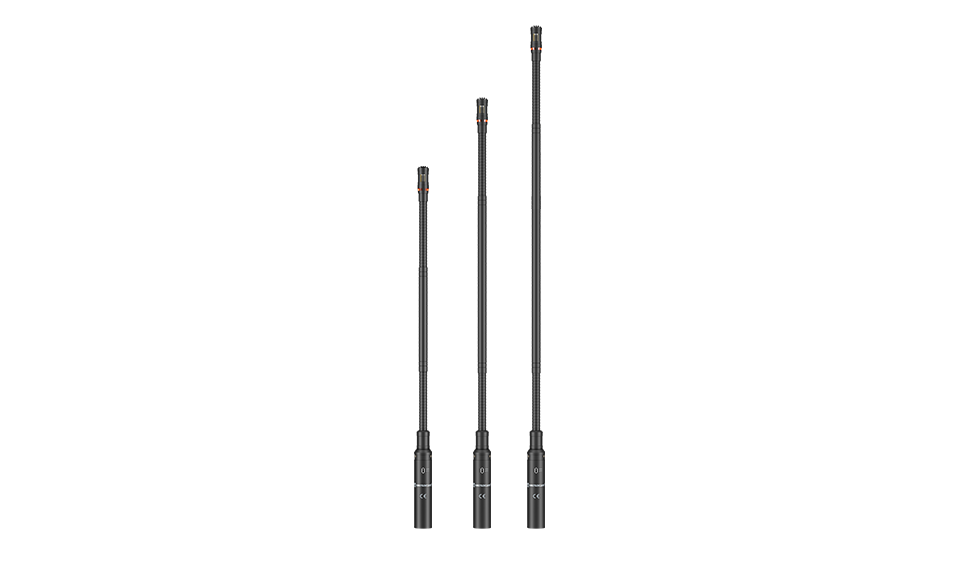

AL-19N: 380mm ,150g

AL-19T: 450mm , 170g

AL-19F: 530mm , 190g

Inquire Now

AL-19N/19T/19F

Product Description Functional Features Details

Product Description

AL-19N/19T/19F series is a wide range miniature condenser microphone with cardioid orientation. It is designed for high-quality sound reinforcement, professional recording, television and other demanding polar applications. The small diameter double gooseneck design allows for highly flexible positioning while maintaining a smooth, contoured appearance.

Functional Features

Anti-Interference

The gooseneck microphone outer shell is made by pure copper, cooperating ORF shielding technology, offer excellent anti-interference capability, avoid the interference from the cell phone or other wireless devices.

Flexible Adjustment

Easy to adjust, durable, delicate gooseneck structure, enable to quickly and randomly fix the capsule in a suitable position other wireless devices.

Phantom Power

The integral power module can be powered from any external 11V to52V DC phantom power supply.

Clear Sound Quality

The gooseneck microphone with low cut switch avoid“popping”, cooperating with super low impedance output, very clear sound quality, much better than the normal phantom conferencing microphone.

Details

Specifications

Capsule Type: Condenser

Polar Pattern:Cardioid

Frequency Response: 80Hz-18KHz

High pass filter: 100Hz, 18dB/octave

Turn-on sensitivity: -32dB, at 1V at 1Pa

Output impedance: 200Ω

SPL: 127 dB, 1KHz at 1% T.H.D

Dynamic Range(Typical): 110dB, 1KHz at max. SPL

Switch: Flat, high pass filter

S/N Ratio: >68dB, 1KHz at 1Pa

Phantom Power Requirements: 11-52V DC

Consumption: : 5mA (typical)

Output connector: Male 3-pin XLR

Best Distance for Sound Pickup: 10-20cm

Dimensions/Weight:

AL-19N: 380mm ,150g

AL-19T: 450mm , 170g

AL-19F: 530mm , 190g

Colour: Black
