UP-2

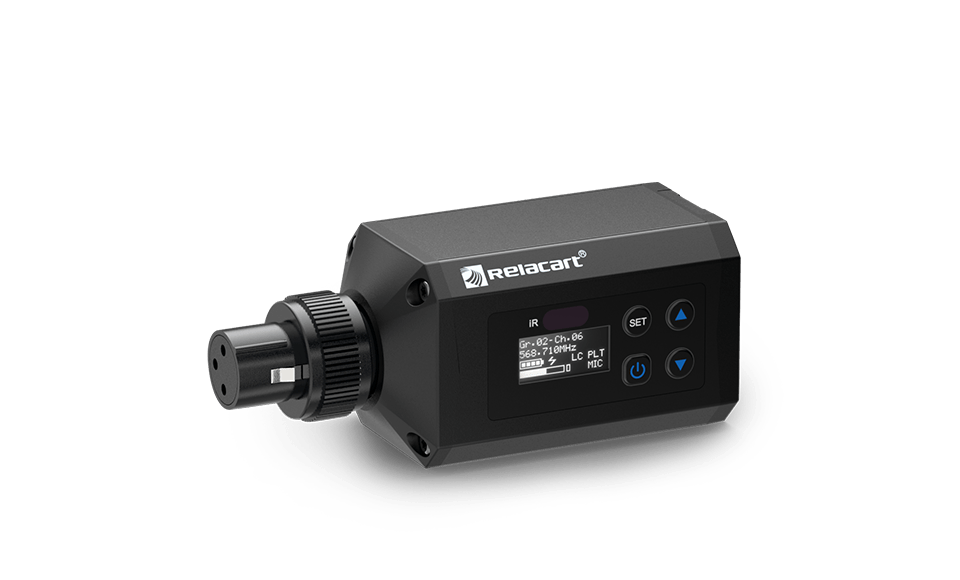

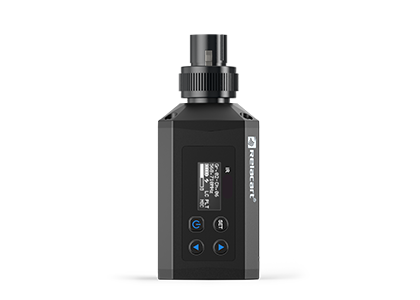

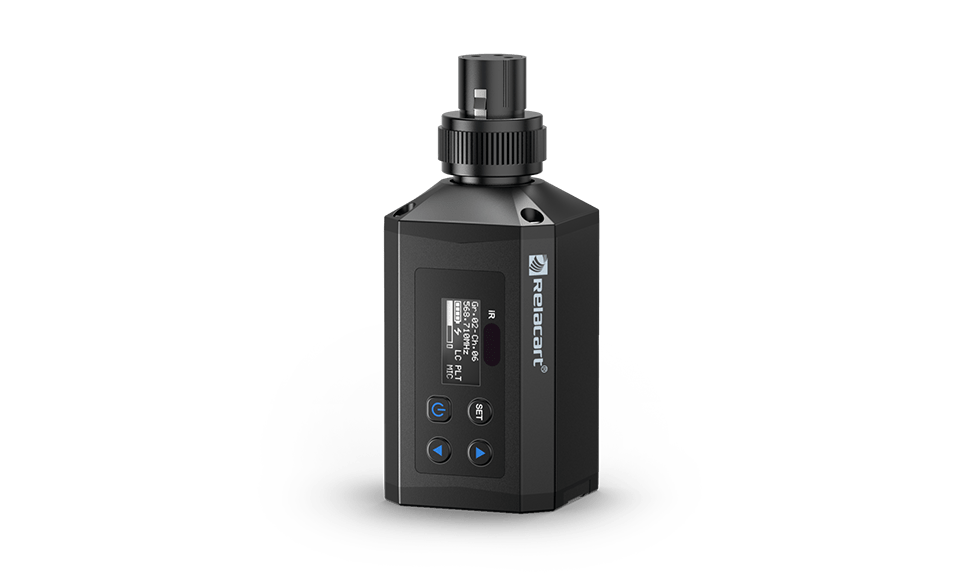

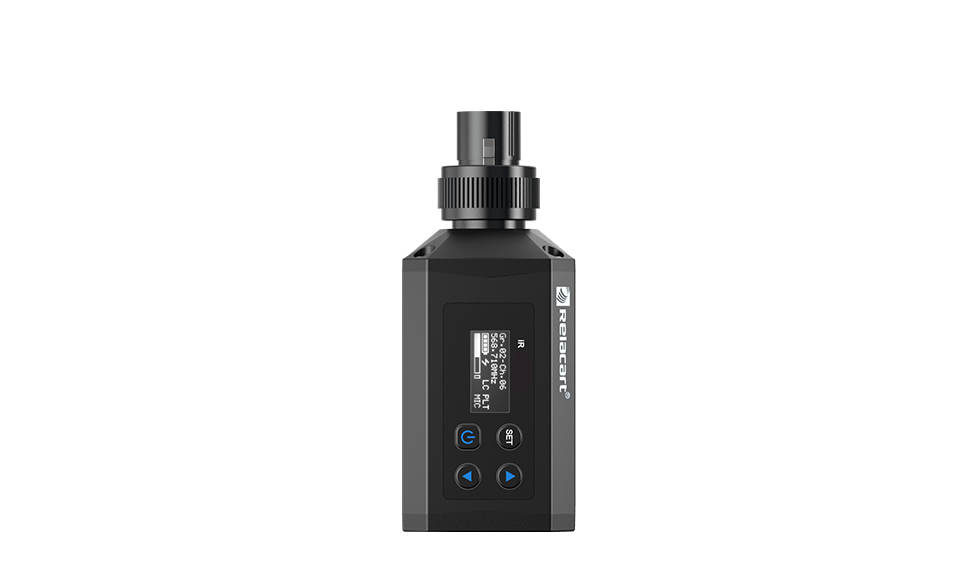

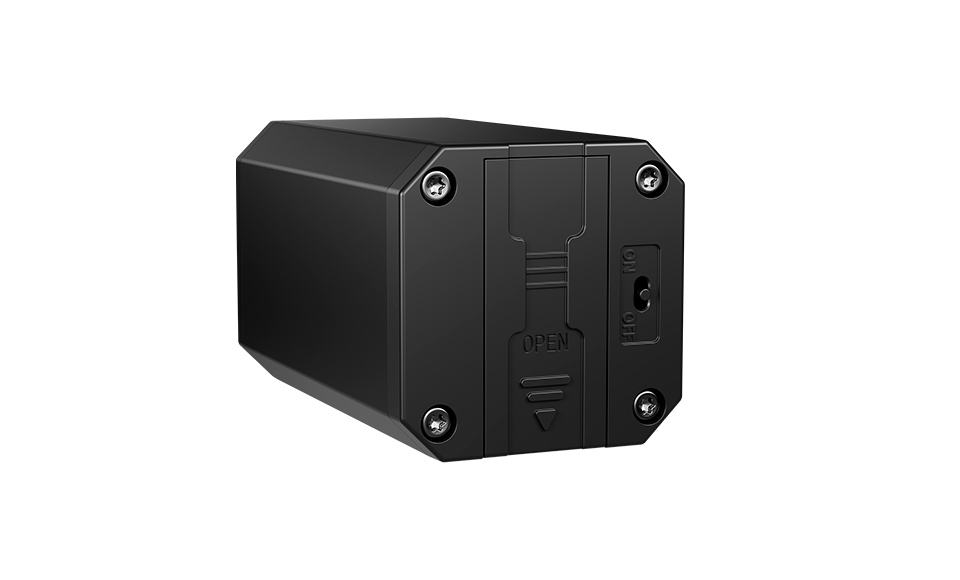

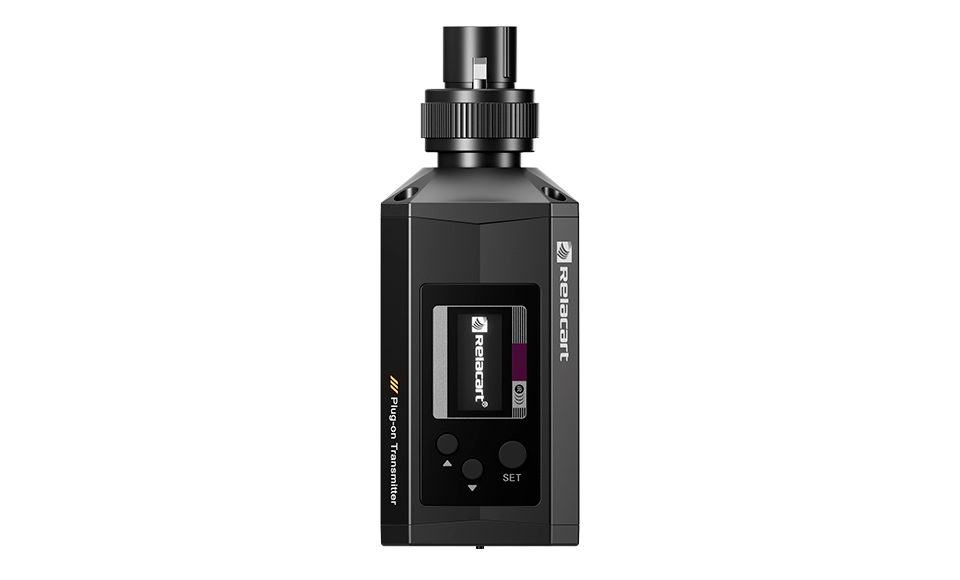

Wireless plug-on transmitter

Product Description Performance Introduction Technical Specifications

Product Description

The UP - 2 Wireless Handheld Transmitter features a flat and wide frequency response, ultra - low total harmonic distortion (THD) and background noise, fast transient response, strong anti - interference ability, and a high signal - to - noise ratio. These characteristics are sufficient to solve the problems of being restricted by cables and the deterioration of transmission characteristics when using wired microphones. It also overcomes the quality deficiencies of traditional analog wireless transmission. It is the only device that can achieve true - to - original sound transmission of high - end and precious microphones.

Performance Introduction

L17Carrier bandwidth: 521.25MHz-936.85MHz

Oscillation mode: PLL frequency synthesis

Transmission power: 13.5 dBm

Carrier error: 0.005%

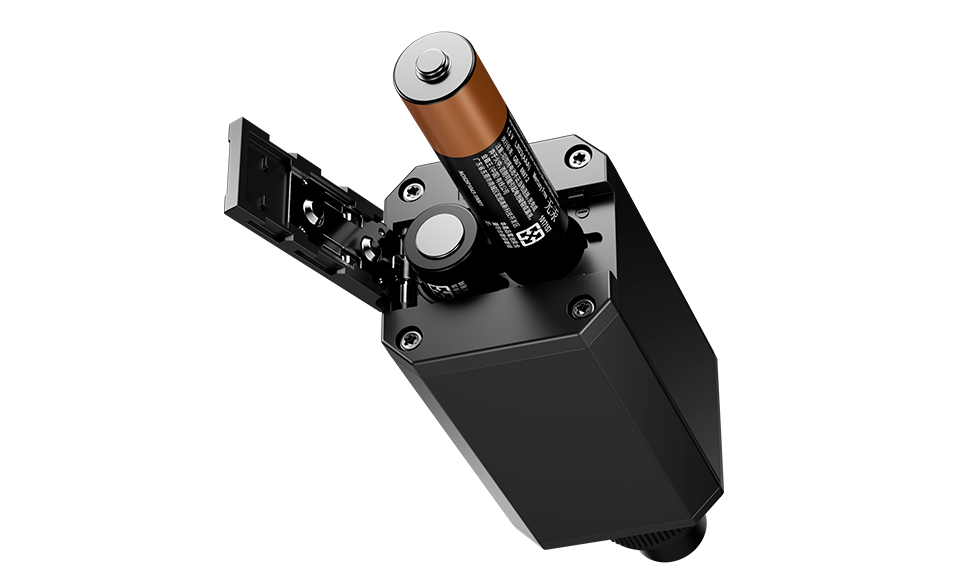

Power supply mode: AA 1.5V x2

Nominal/maximum frequency deviation: ± 65KHz

Frequency setting: manual key setting or infrared transmission

Input gain adjustment range: 4-stage adjustable setting, step by step every 3dB

Harmonic radiation: - 32dBm

Modulation mode: FSK

Maximum input level: 250mV

Input impedance: 2.2K Ω

Battery life: 1-2 hours

Normal working current: 130mA

Overall dimensions: 110 x 42 x42 (mm)

Net weight (excluding battery): 125g

Technical Specifications

Carrier bandwidth: 521.25MHz-936.85MHz

Transmission power: 13.5 dBm

Harmonic radiation: - 32dBm
