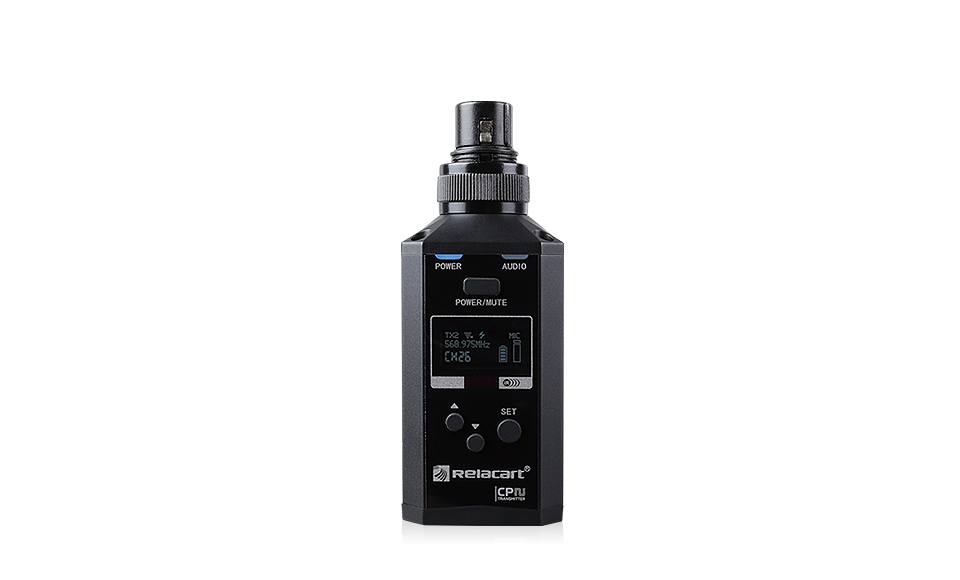

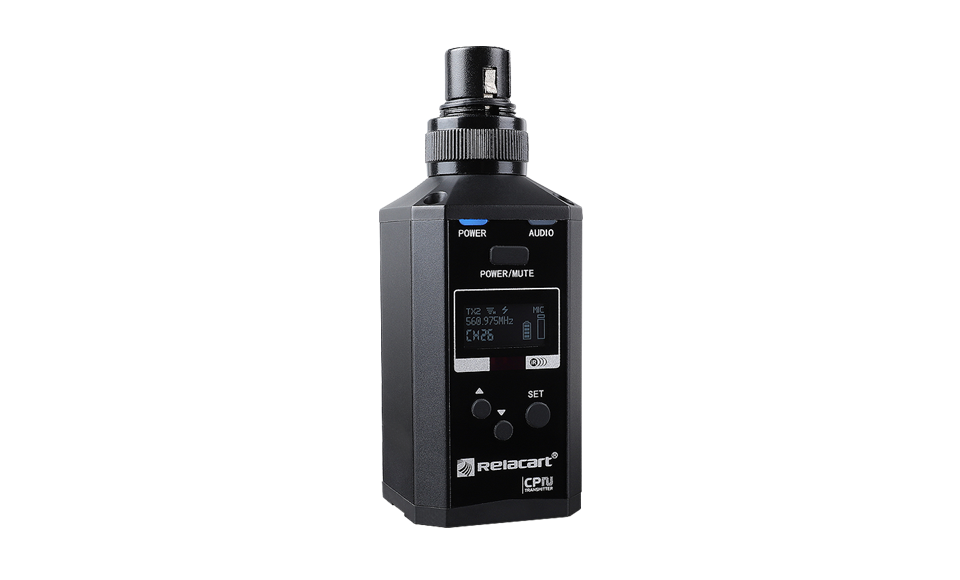

CP-2

Wireless Plug-on Transmitter

Carrier frequency band: 521.25MHz-936.85MHz

Harmonic radiation: - 32dBm

Transmission power: 13.5dBm

Product Description Details

Product Description

Details

Connection diagram

Polar Pattern

Package Contents

Specifications

Frequency Response

Carrier frequency band: 521.25MHz-936.85MHz

Oscillation mode: PLL frequency synthesis

Harmonic radiation: - 32dBm

Maximum input level: 250mV

Modulation mode: FSK

Input impedance: 2.2K Ω

Transmission power: 13.5dBm

Carrier error: 0.005%

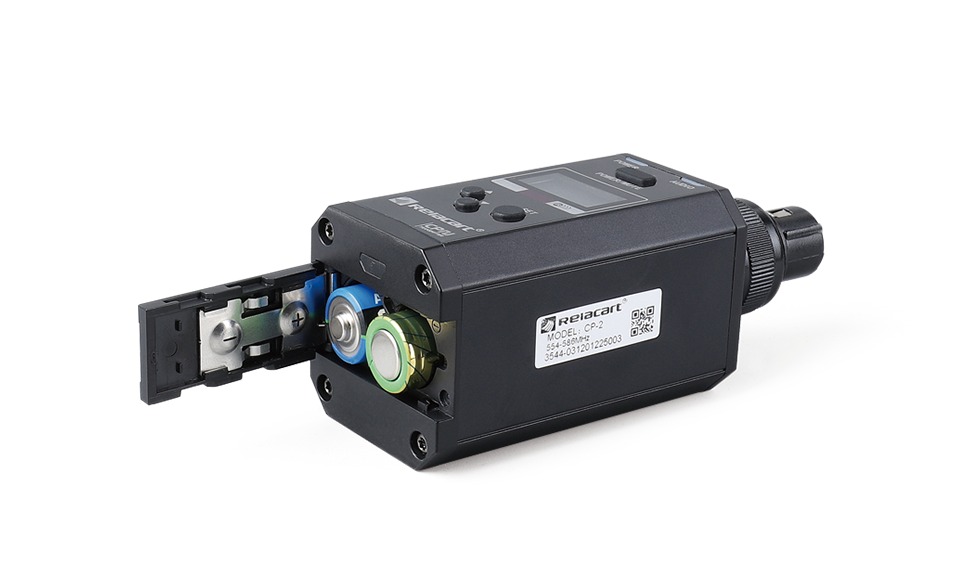

Power supply mode: AA1.5 × two

Battery service time: ≥ 11 hours

Nominal/maximum frequency deviation: ± 65KHz

Frequency setting: manual key setting or infrared transmission

Input gain adjustment range: 4-level adjustable setting, step by step every 3dB

Normal working current: 130mA

Overall dimension: 110 × forty-two × 42（mm）

Net weight (excluding battery): 125g
