WDC-923D

Wireless Delegate Conference Unit

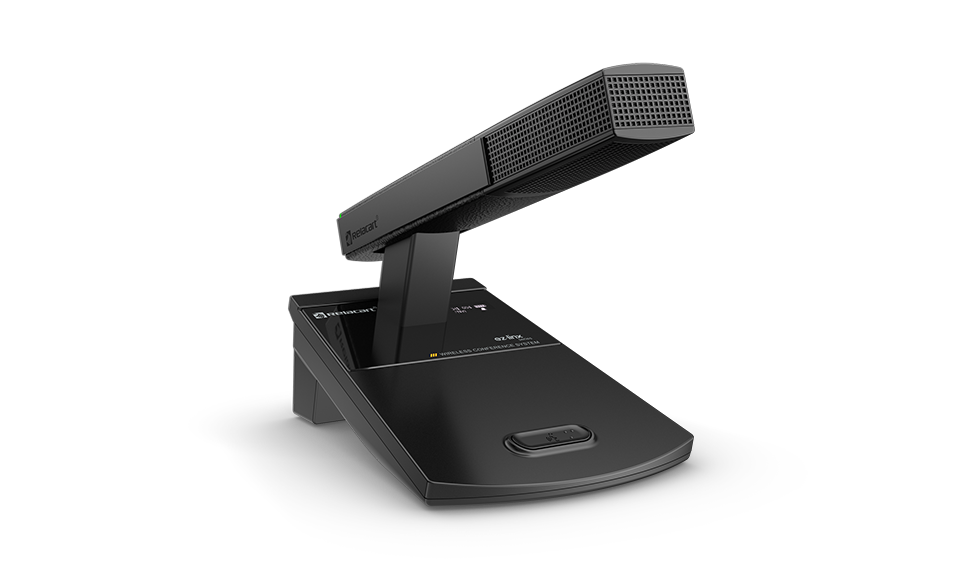

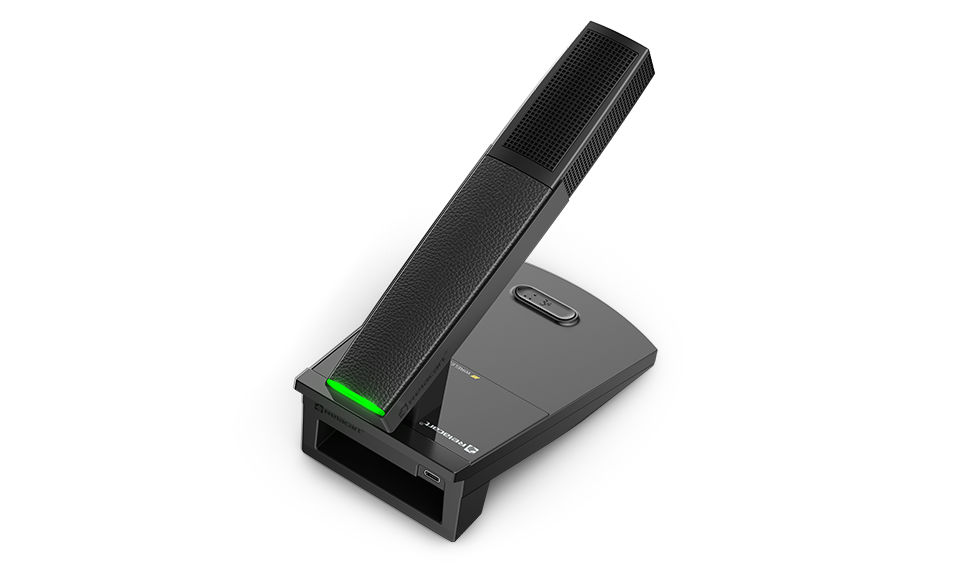

WDC-923D is a desktop conference microphone with Dante function. It uses a new square microphone tube and a capacitive cardioid microphone core to accurately pick up sound and reduce the interference of environmental noise by using the principle of low terminal sensitivity.

Inquire Now Next Product

Details Components

Details

Frequency Response

Polar Pattern

Package Contents

Specifications

Carrier Frequency Range：521.25MHz-936.85MHz

Oscillation：PLL frequency synthesis technology

Harmonic Radiation：<45dBm

Bandwidth：134MHz

Max. Deviation：±45KHz

RF output power：30mW

Power Supply：Li-ion polymer rechargeable battery, 3.7V/2900mA

Current Consumption：120mA (typical) 60mA (standby mute)

Working Hour：23 hours (typical) 48 hours (standby mute)

Weight：910g

Dimensions (mm)：162(L)×125(W)×54(H)

Carrier frequency range：521.25MHz-936.85MHz

Oscillation：PLL frequency synthesis technology

Harmonic radiation：<45dBm

Bandwidth：134MHz

Max. Deviation：±45KHz

RF output power：30mW

Power supply：Li-ion polymer rechargeable battery, 3.7V/2900mA

Current consumption：120mA (typical) 60mA (standby mute)

Working time：23 hours (typical) 48 hours (standby mute)

Weight：910g

Dimensions (mm)：162(L)X125(W)X54(H)

Components

Main Controller
