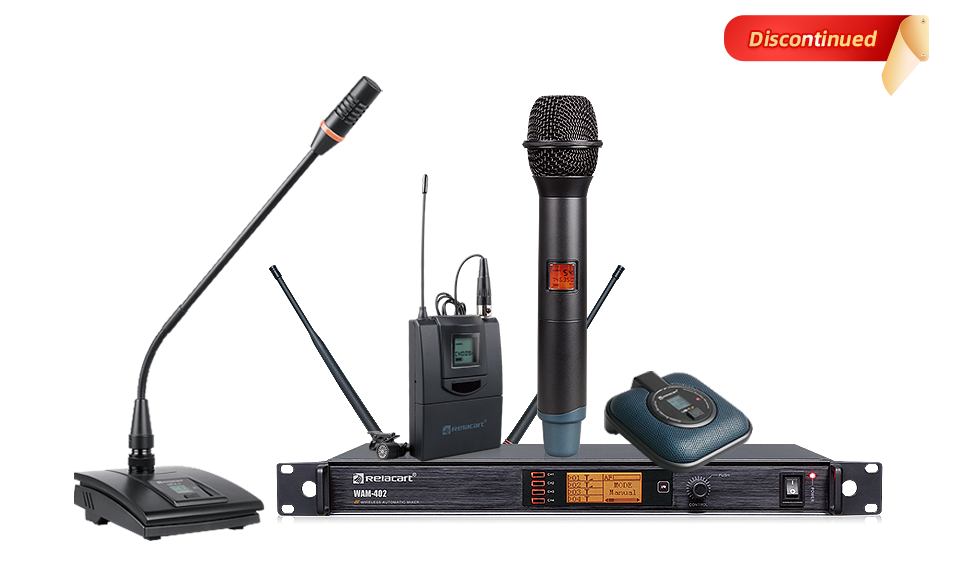

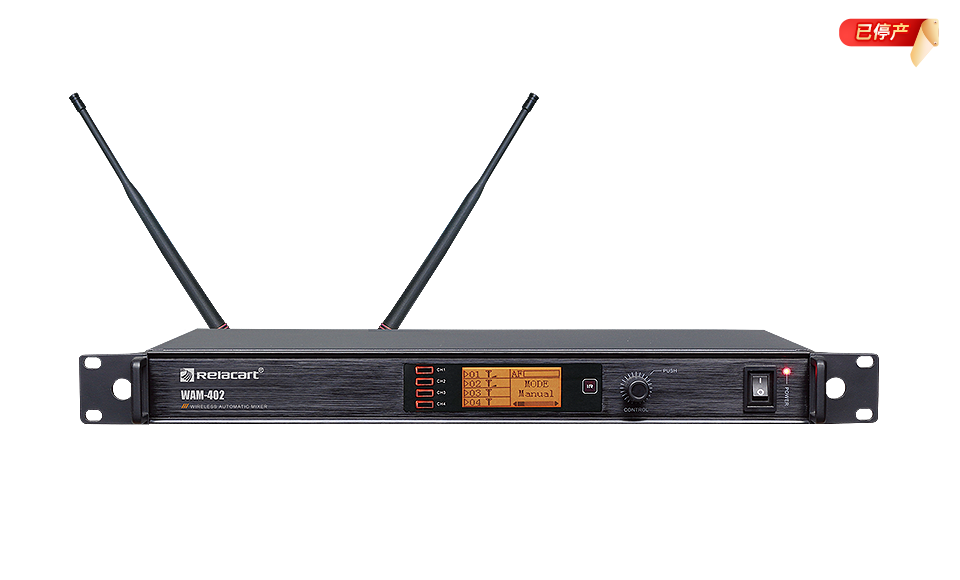

WAM-402

Wireless Automatic Mixer

WAM-402 full automatic intelligent wireless mixer is a new business conference solutions,DSP processor with high performance, adopt advanced digital control technology and audio processing technology, easy to achieve high quality signal processing,intelligent management in the real-time, flexible configuration, etc. Enable to set up a wireless conference system in a fast speed. According to any occasion and application, equipped with RS-232 interface can be connected with various central control equipment. Applicable to all kinds of business meetings, educational institutions, hotels,conference rental,system reconstruction etc.

Product Description

WAM-402 full automatic intelligent wireless mixer is a new business conference solutions,DSP processor with high performance, adopt advanced digital control technology and audio processing technology, easy to achieve high quality signal processing,intelligent management in the real-time, flexible configuration, etc. Enable to set up a wireless conference system in a fast speed. According to any occasion and application, equipped with RS-232 interface can be connected with various central control equipment. Applicable to all kinds of business meetings, educational institutions, hotels,conference rental,system reconstruction etc.

Functional Features

Easy Installation

Easy Installation

No cables have to be laid or holes drilled.People no longer to worry about the damdging antique materials of a grand hall.

Flexible Configuration

Flexible Configuration

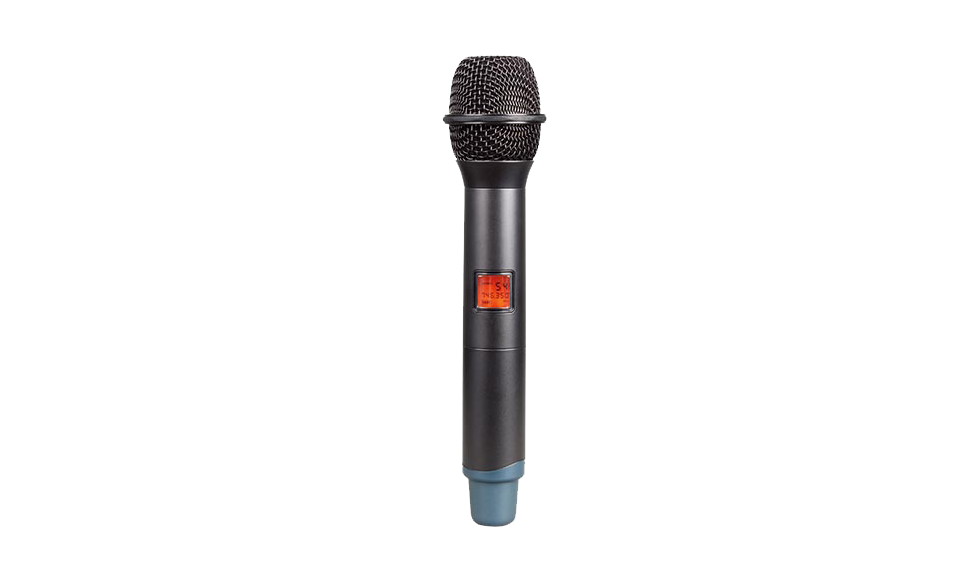

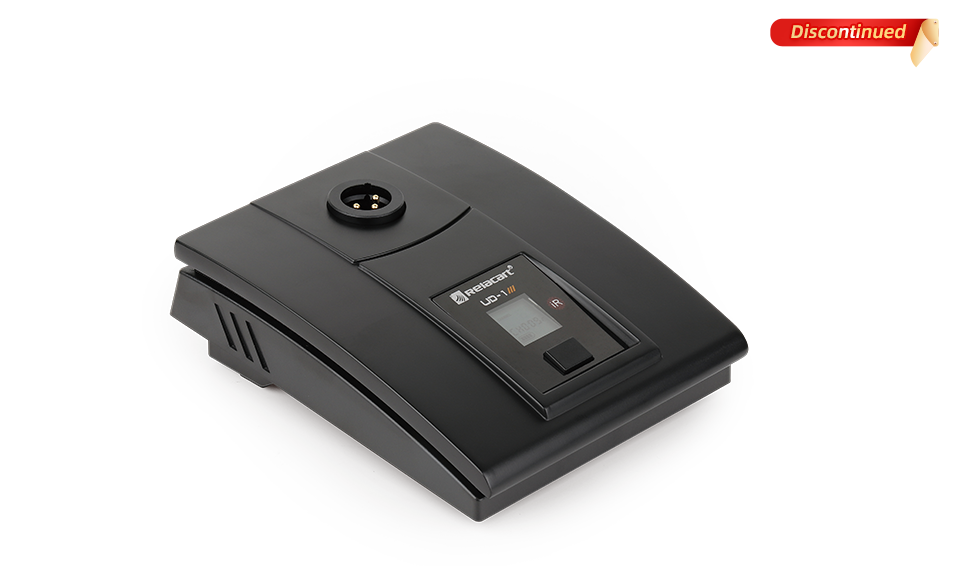

Cooperates with RELACART wireless boundarymicrophone UB-1,wireless conferencing microphone UD-1,wireless handheld microphone UH-1 or wireless lapel micropphone ET-60.

Flexible Speech

Flexible Speech

Select the simultaneous open microphone to 1-4 units.Last microphonr on selectable for continuous room ambiance.

Flexible Expandsion

Flexible Expandsion

4-unit daisy chain by accessory link cable to control up to 16 units microphones. Can connect with intelligent central control system.

Details

Connection diagram

Polar Pattern

Package Contents

Specifications

Frequency Response

Tuning Bandwidth:521.25MHz-936.85MHz


Bandwidth:32MHz


Receiving Mode:PLL、FM


Image Rejection:>60dB


Adjacent Channel Rejection:300KHz ≥63dB


Intermodulation Attenuation:≥65dB


RF Sensitivity:S/N>60dB at 25 deviation


Squelch  Adjustment:5~30dB


Frequency Sync:IR Sync


Maximum output Level:+12dBu


Adjustment range of audio output level:00 ~25


Power Requirements:DC 12V / 1A


current consumption:DC 12V,630mA


Overall Dimensions(mm):410(W)x216(D)x43(H)


Net Weight:2.5kg


Support

Operation manual

WAM-402-Operation-manual-2

Product Brochure

WAM-402 brochure
