VTS-2000

Automatic Video Tracking System

VTS-2000 Video tracking system can be used with any one Relacart video conference system to achieve video tracking function.When the microphone unit is on,the camerawill automatically track the location of the speakers unit.Connect the video device candisplay the image.Unique freeze function,can achieve the camera auto tracking featureperfectly.

Inquire Now

VTS-2000

Product Description Functional Features Details FAQ

Product Description

Functional Features

Camera tracking settings

There is no need to add any additional equipment, and the camera can be directly tracked through the central control host menu.

Highest resolution

High definition SDI can support the highest resolution 1080p@60Hz

Camera control

Up to 4 cameras can be controlled simultaneously.

Video input and video output ports

It has 4 video inputs and 1 video output port, supports standard definition and high-definition SDI camera input and output, and high-definition SDI supports HDcctv1.0, HD-SDI (ST292), 3G-SDI (ST424), SD-SDI (259) and other standards.

Details

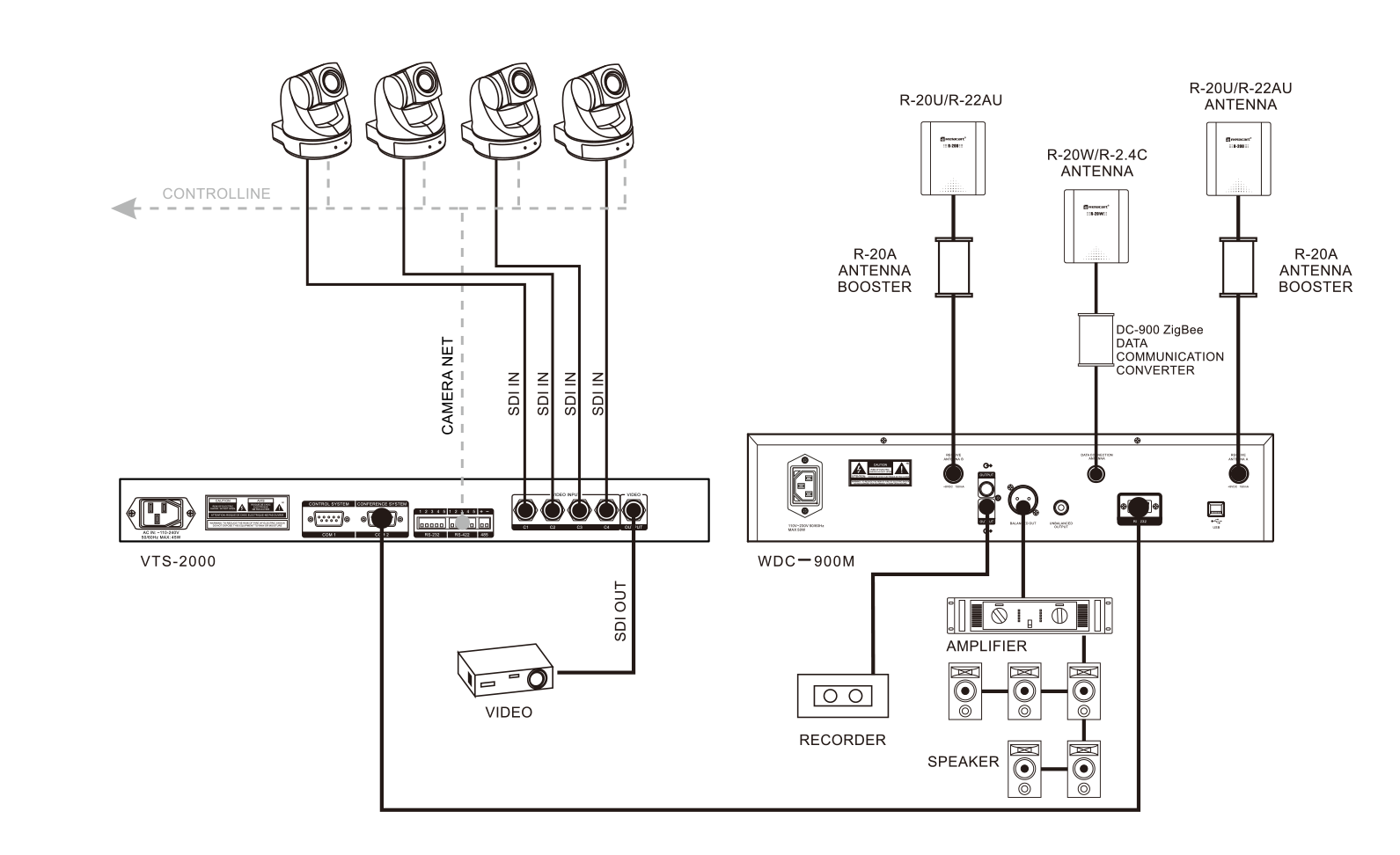

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Chassis specifications：EIA standard 1U

Power Suooly：AC 100-240V 50/60Hz

Signal Type：SDI（high-definition digital signal）、HDcctv1.0，HD-SDI（ST292）、3G-SDI（ST424）、SD-SDI（259）

Video Input：800mVp-p

Video Output：800MVp-p

Compatible with the standard：Pelco-D、Pelco-P、Visca

Control protocol：RS-232、RS-422、RS-485

Baud Rate：setable

Date bits：8bits

Video Input/Output Impedance：75 ohm

Input and output ports：BNC

Dimensions（mm）：410（W）×43（H）×206（D）

Weight（kg）：about 2.3kg

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

VTS-2000Operation-manual

VTS-2000datasheet

Product Brochure

VTS-2000-brochure
