UR-111S

UHF Single Channel Wireless Mainframes

Inquire Now Next Product

Product Description Functional Features Details Components Accessories FAQ

Product Description

UR-111S Series of condensed the technology essence that Relacart accumulated over a long period. Dual squelch locking circuit and dual receiving antennas with CPU intelligent signal selection can effectively suppress noise interference and co-channel interference caused by the environment. Separate independent audio processing module provides powerful bass and clear highs.

Functional Features

Ultra-Wide Carrier Frequency Band

Ultra wide carrier frequency band UHF 522MHz~936MHz, one driven one antenna diversity reception, CPU intelligent signal selection, stable reception and long distance, providing users with a good application experience.

Multi-Channel Group Mode

Four frequency group in total, 40 channels, providing more than 400 adjustable frequency for the users.Battery life is twice as common, up to 15 hours.

Auto Frequency Selection

Press the "AFS"button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.

IR Infrared Counter-Frequency

Press [IR] button to upload automatically the receiver frequency to the transmitter.

Phase Lock Loop Frequency Control

PLL design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.

Reliable and Flexible Performance

Designed for use on professional tours, muti-functional halls, meeting room, concert halls and houses of worship. Stable functions, reliable and flexible performance, easy to install.

Details

Connection Diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Main Frame Size: EIA STANDARD 1/2U

Channels: Single Channel

Frequency Stability: ±0.005% (0~50°C)

Carrier Frequency Range: 554MHz-936 MHz

Modulation Mode: FM stereo modulation

Oscillation: PLL synthesized

Receiving Sensitivity: 5dBμV, S/N>60dB at 25 deviation

Band Width: 32MHz

Max. Deviation Range: ±45KHz

S/N: ＞105dB

T.H.D.: ＜0.7% @ 1KHz

Frequency response: 45Hz~18KHz ±1dB

Operating Range: 60M typical ( in open space)

Power Supply: DC 12V / 12W

Weight: 1.0kg

Dimension (mm): 205(W)x43(H)x206(D)

Output Connector: XLR balanced & 6.3φ phone jack unbalanced

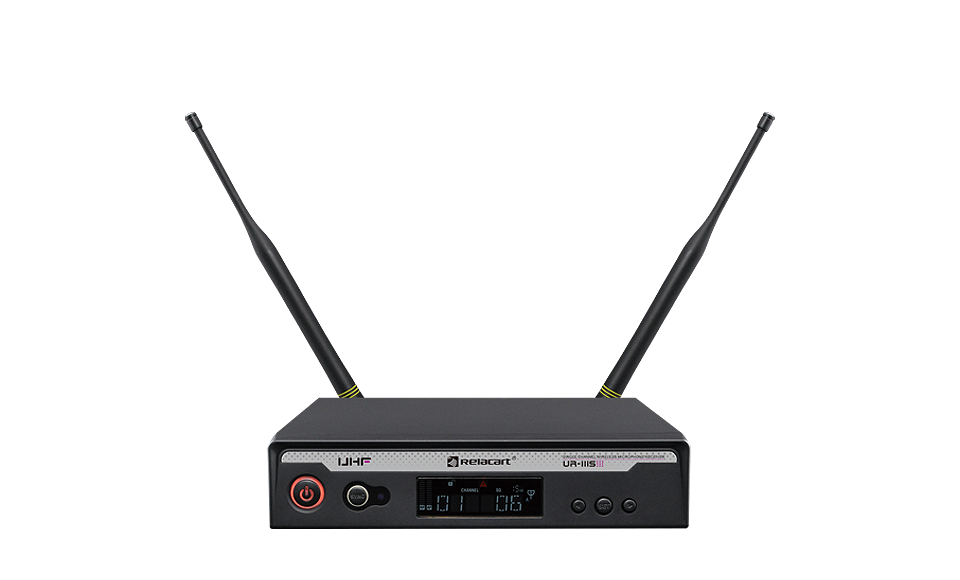

UR-111S Single-Channel Wireless Receiver

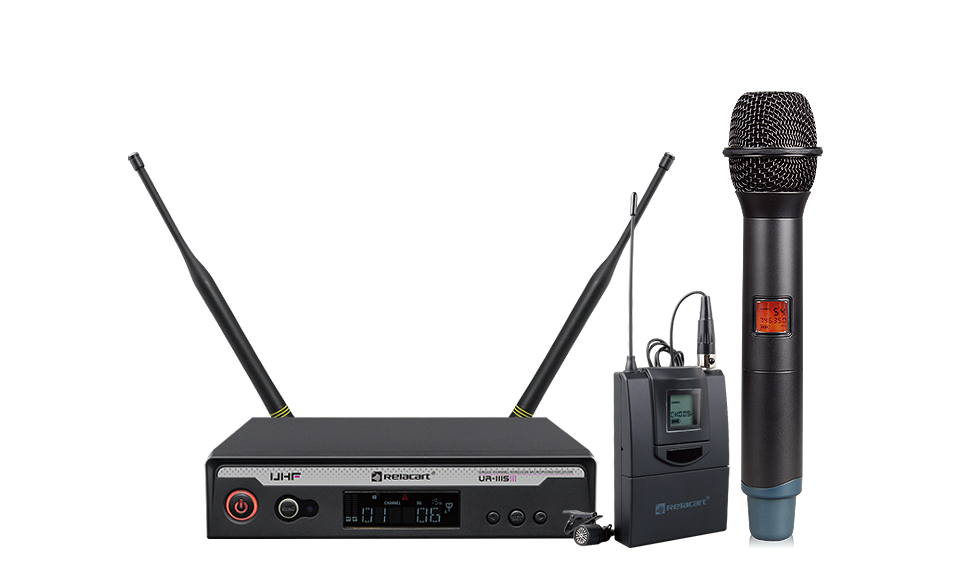

Optional Accessories:

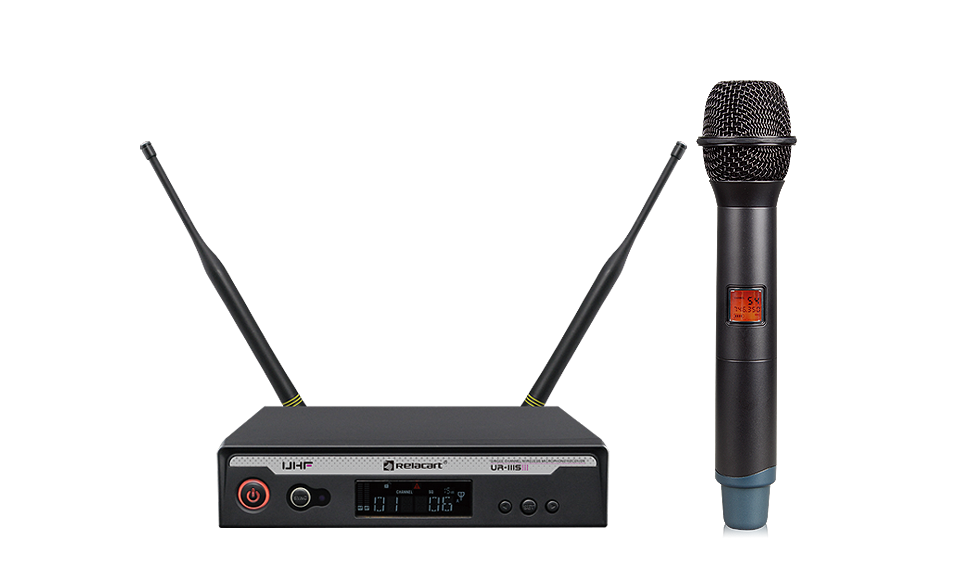

UH-1 Wireless Handheld Microphone

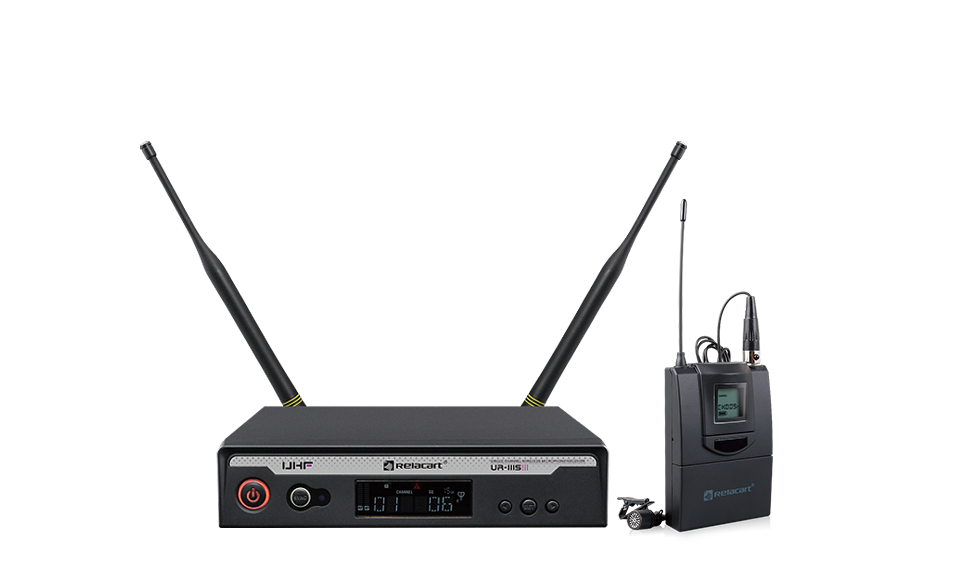

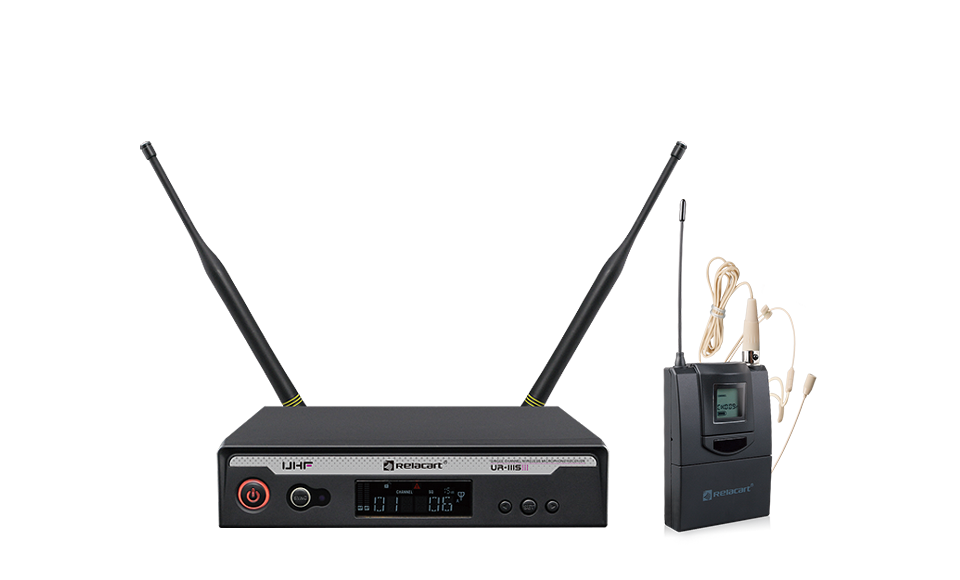

ET-60 Wireless Bodypack Transmitter (for wearable use)

Power Adapter

Signal Enhancement Antenna

Product Manual

Warranty Card

Components

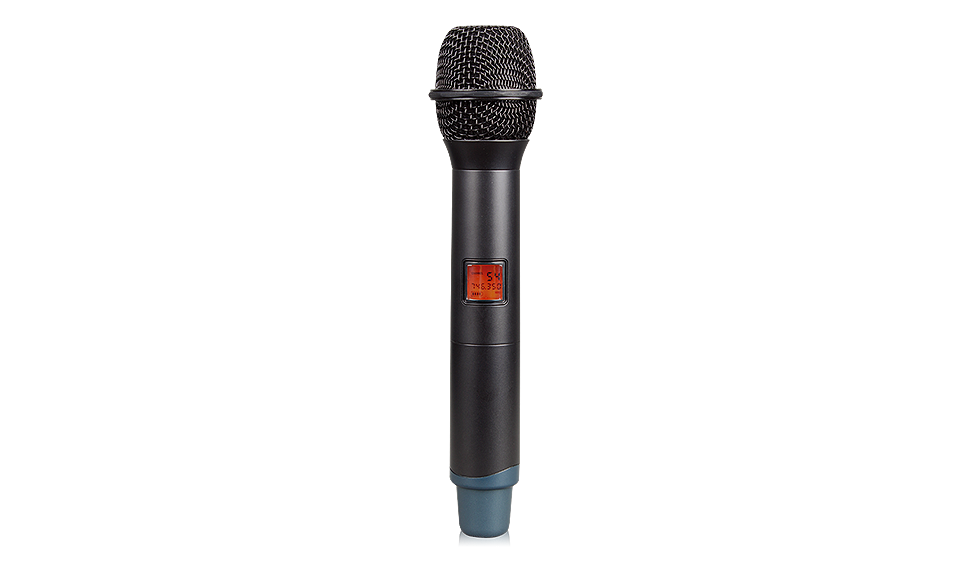

Wireless handheld microphone UH-1

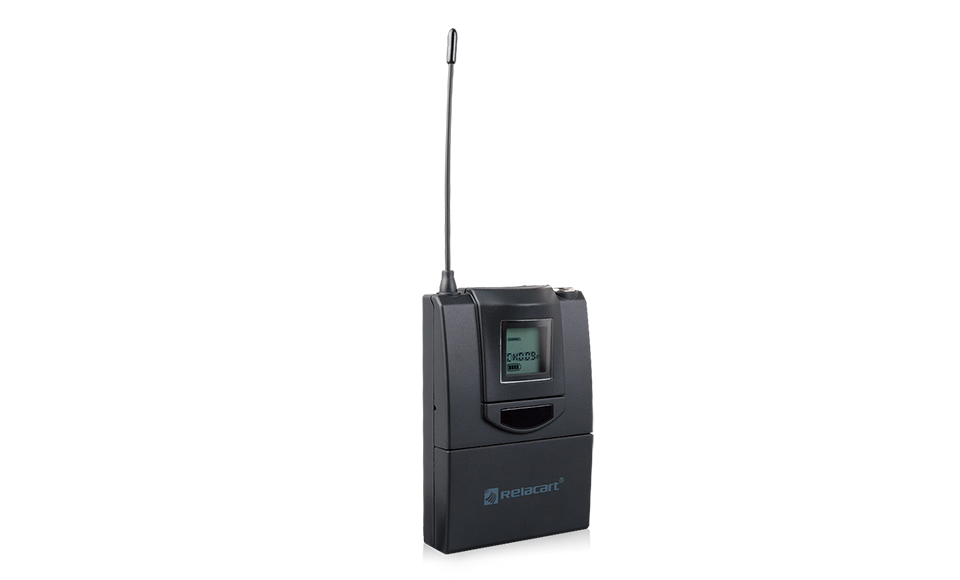

Wireless bodypack transmitter ET-60

Wireless Gooseneck Microphone Desk Stand

Accessories

Omnidirectional Headworn Microphones

Omnidirectional Headworn Microphones

Lavalier Microphone

Lavalier Microphone

Lavalier Microphone

Lavalier Microphone

Lavalier Microphone

Lavalier Microphone

Wide-band Directional Antenna R-22AU

Wide-band Directional Antenna R-22AU

Wide-band Directional Antenna R-20U

Wide-band Directional Antenna R-20U

Wide-band Directional Antenna

Wide-band Directional Antenna

Power Supplier for Antenna

Power Supplier for Antenna

Antenna Booster

Antenna Booster

Wideband 4-Channel Antenna Distribution System

Wideband 4-Channel Antenna Distribution System
