Product Description

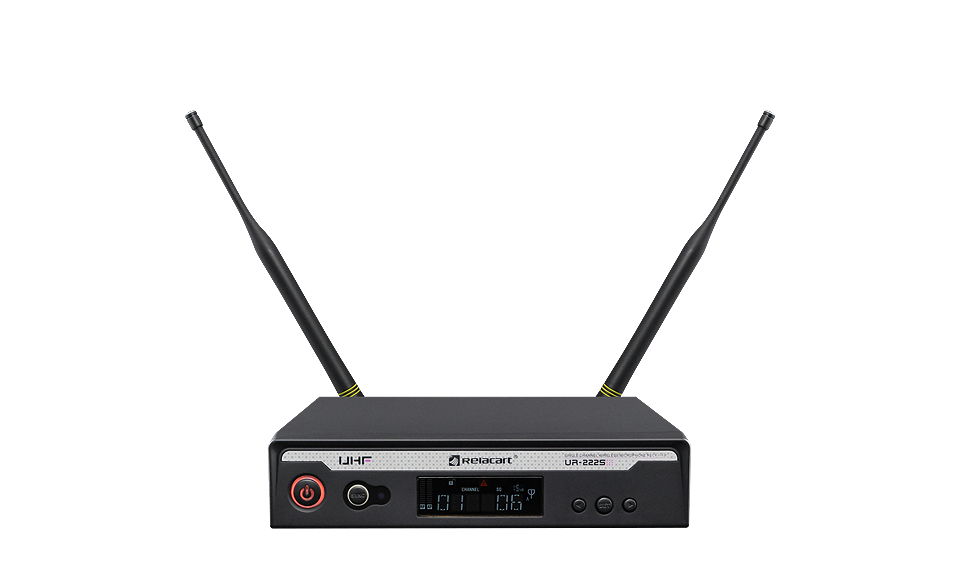

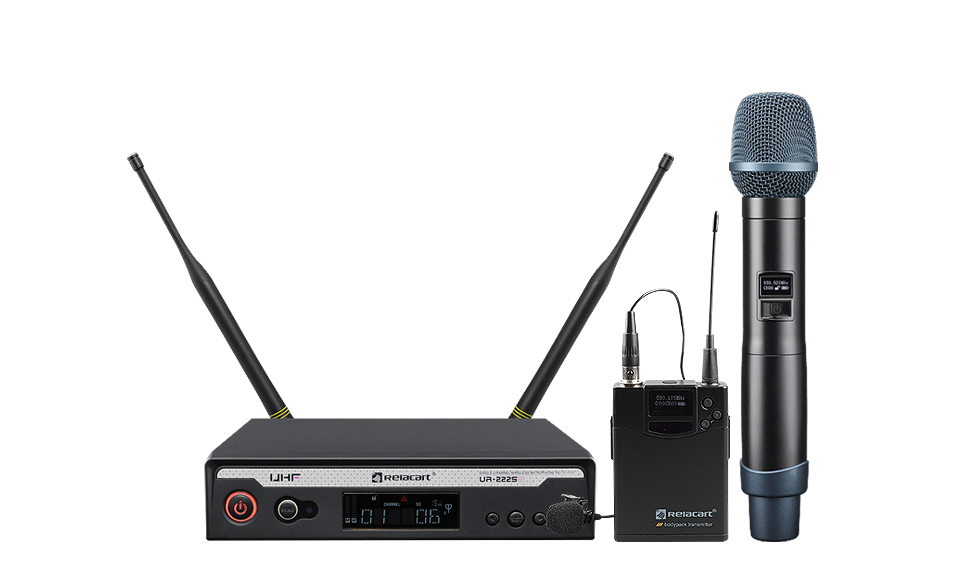

UR-222S Series of condensed the technology essence that Relacart accumulated over a long period. With advanced technology, sophisticated design, stable performance, with beautiful appearance, convenient operation and attractive price, with superior professional quality to win the market competition. This series is suitable for the nightclub of high requirements, multi-functional hall, hotel, conference room and small to medium performance.
Performance Introduction
Low-power Circuit Design
Precise low-power circuit design, use two AA alkaline battery, battery life is one time longer as common.
Environmental Protection and Energy Conservation
Precise low-power circuit design makes the battery life twice as long as that of ordinary microphones.
[IR] Infrared Pairing
With [IR] infrared automatic frequency matching function, as long as the [SYNC] button is pressed, the transmitter can automatically and accurately lock the working frequency of the receiver.
Generality
134MHz broadband transmitter, the machines of four different frequency bands can be used interchangeably at will, which is convenient for debugging and management.
Anti-Interference
The stable PLL phase-locked oscillation circuit, combined with the "noise detection" mute control function, can effectively block the noise and radio frequency interference in the working environment.
Ultra Wide Bandwidth
Ultra-wide frequency band UHF554MHz~936MHz, automatic frequency selection, CPU smart antenna diversity reception; 32 adjustable frequency points per channel, 64 adjustable frequency points in two channels, a total of 24 frequency bands can provide 768 adjustable frequency points for users to choose.
Technical Specifications
Chassis Specifications: EIA Standard 1/2U
Receiving Channel: Single Channel
Frequency Stability: ±0.005%
Carrier Frequency Range: 521.25MHz – 936.85MHz
Modulation Method: FM
Oscillation Method: PLL Frequency Synthesized Technology
Receiving Sensitivity: S/N > 60dB at 25KHz deviation and 5dBµV input
Bandwidth: 32MHz (varies by region)
Maximum Deviation: ±45KHz
Overall S/N Ratio: >105dB
Total Harmonic Distortion (T.H.D): <0.7% @ 1KHz
Frequency Response: 80Hz – 18KHz ±3dB
Operating Range: Typically 90 meters (in open areas)
Power Supply: DC 12V / 12W
Dimensions (mm): 205 (W) × 206 (D) × 43 (H)
Weight: Approx. 1.0kg
