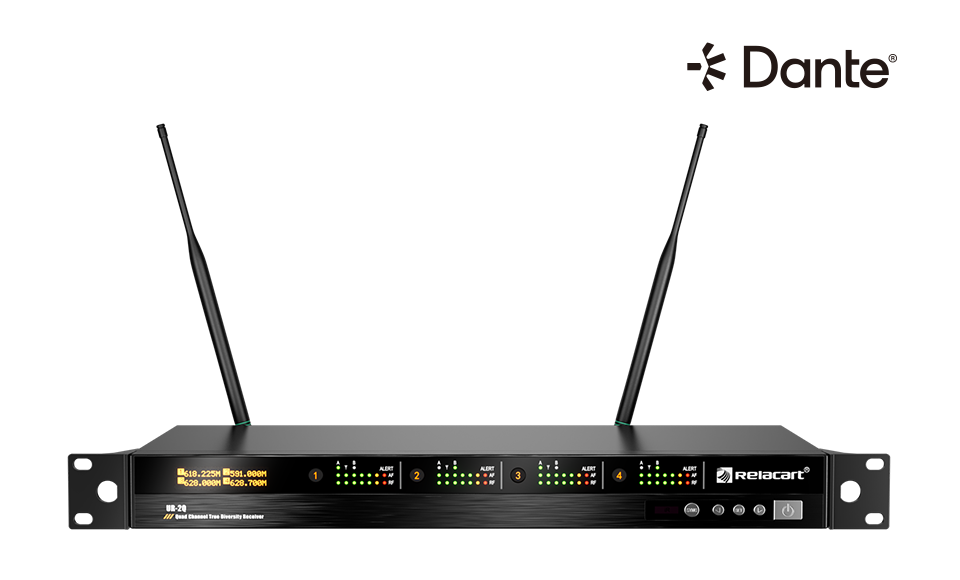

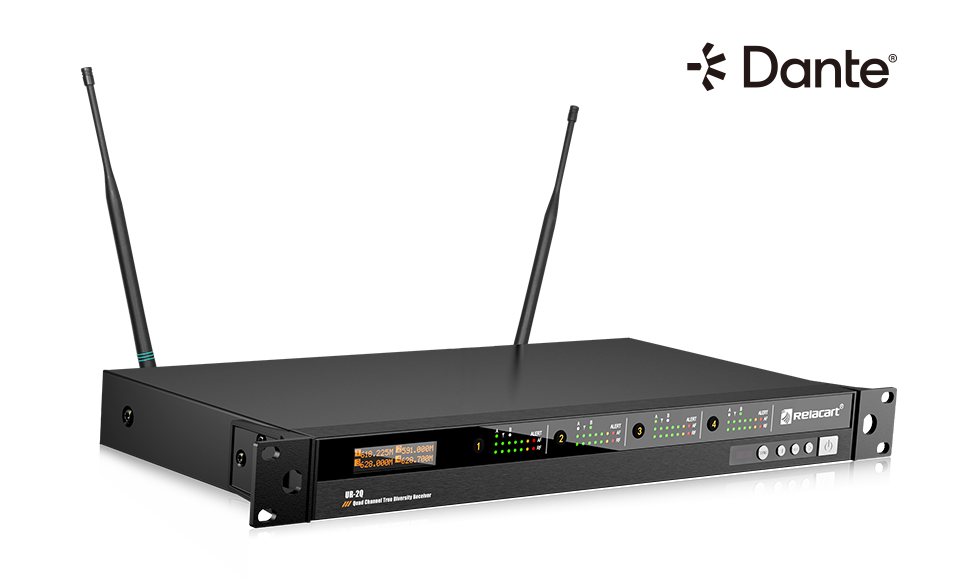

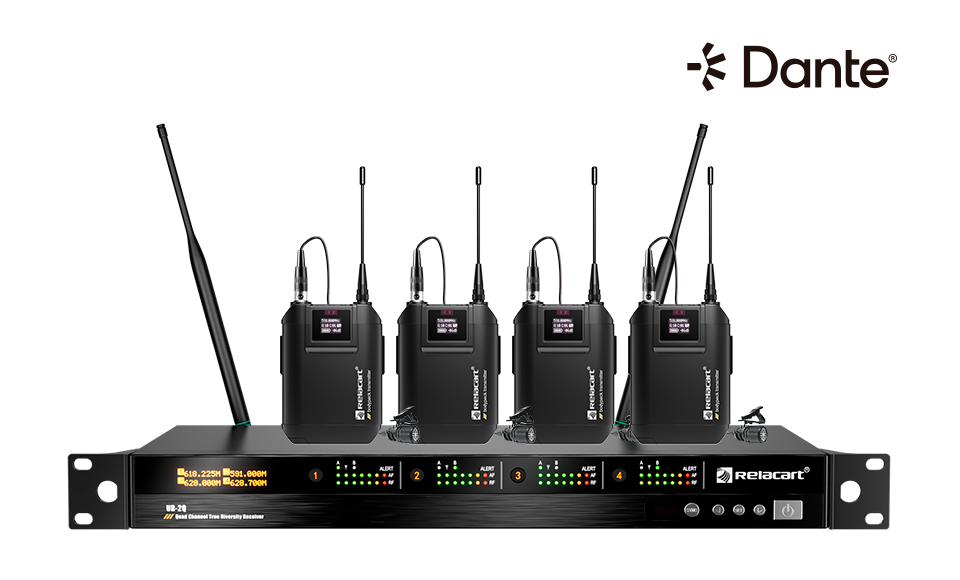

UR-2Q Receiver
Main Frame Size：EIA standard 1U
Receiving Channel: Four channels
Frequency Stability：±0.005%
Carrier Frequency Range：521.25MHz-936.85MHz
Oscillation : PLL synthesis
Sensitivity：5dBu , S/N>60dB at 25KHz deviation
Bandwidth：130MHz
Max. Deviation Range：±50KHz
Audio Sampling Rate：96KHz 24-bit
Audio Expansion：Relacart DSP Digital Audio Extension Algorithm
S/N：>105dB
T.H.D：<0.7%@1KHz
Frequency Response：80Hz～18KHz ±3dB

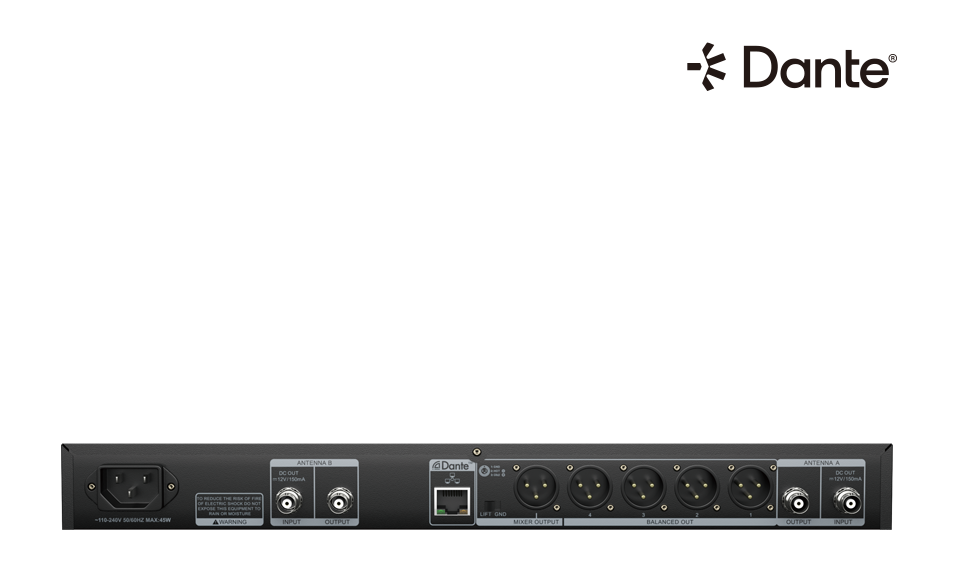

External Antenna Interface：Dual BNC support +12V/150mA output
External Audio Interface：Mixed balanced audio output, BALANCED single channel balanced audio output
Ethernet Port：Support Dante communication protocol
Power Supply：AC input, ICE connector, 100-240 VAC
Dimensions (mm)：480（W）×350（D）×43（H）

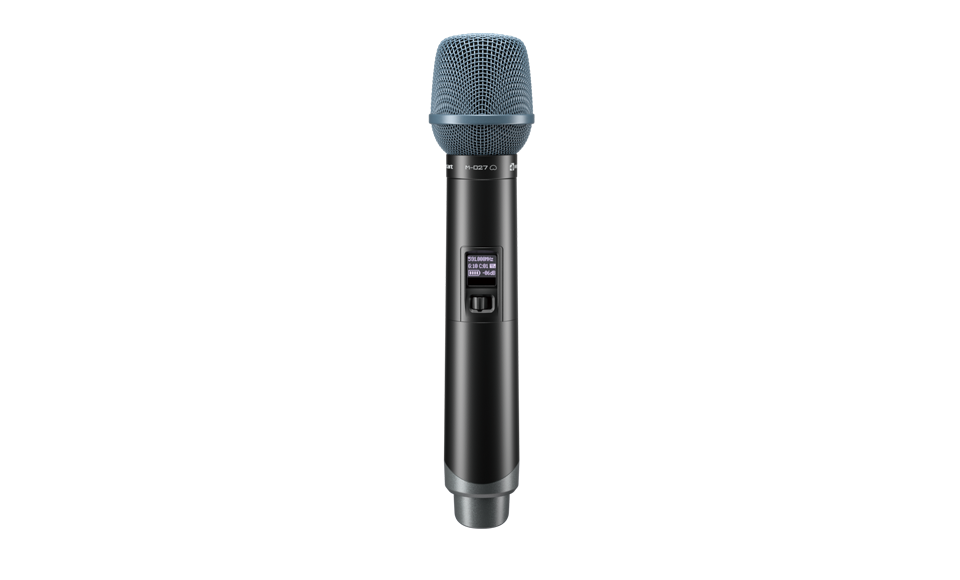

UH-2 Wireless Handheld Microphone
Carrier Frequency Range：470MHz-960MHz
Harmonic Radiation：<45dBm
Bandwidth：Single-band 134MHz
Modulation Mode：FM
Audio Compression：Relacart classic audio compression circuit
Capsule：Dynamic or Condenser, Cardioid
RF Power Output：10mW/30mW
Battery：AA x2
Current Consumption：130mA(typical)
Battery Life：Approximately 8 hours
Dimensions(mm)：52(Φ)×255(L)
Weight (without battery) ：Approximately 235g

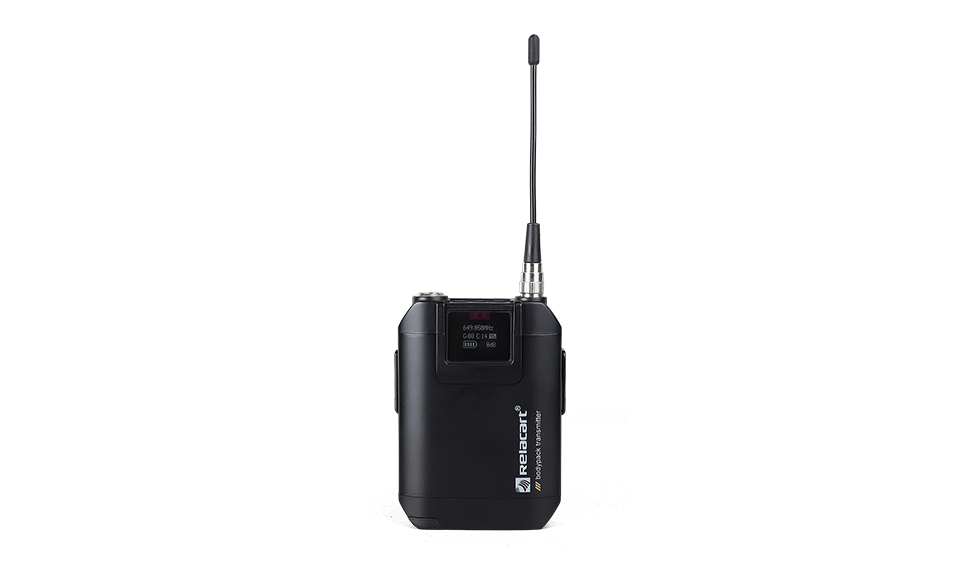

UT-2 Wireless Bodypack Transmitter
Carrier Frequency Range：470MHz-960MHz
Harmonic radiation：<45dBm
Bandwidth：Single-band 134MHz
Modulation Mode：FM
Audio compression：Relacart classic audio compression circuit
Input Connector：4-pin mini-XLR connector、Input gain 3 levels adjustable
RF Power Output：10mW / 30mW
Battery：AA x2
Current Consumption：130mA(typical)
Battery life：Approximately 8 hours
Dimensions(mm)：84(H)×66(W)×23(D)
Weight (without battery) ：Approximately 155g
