Product Description

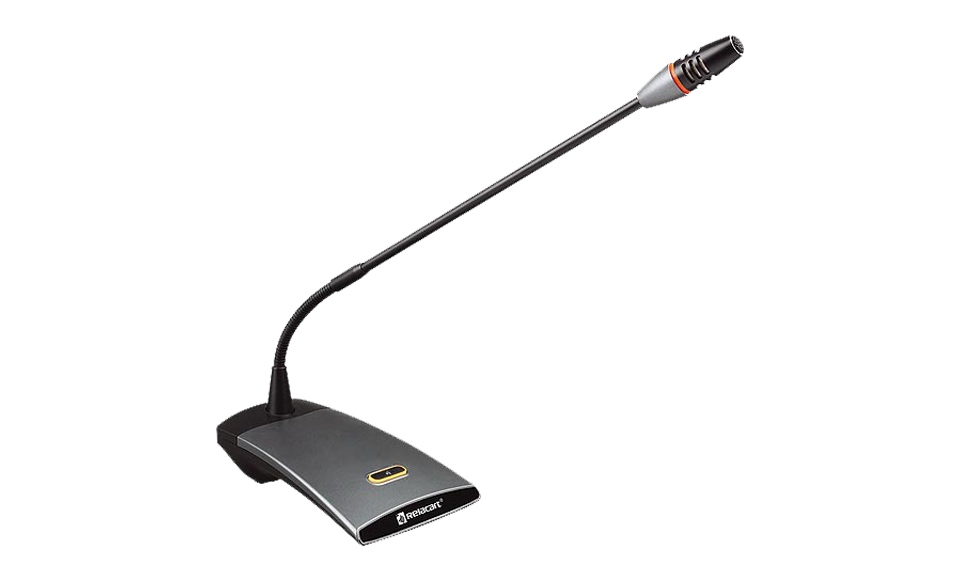

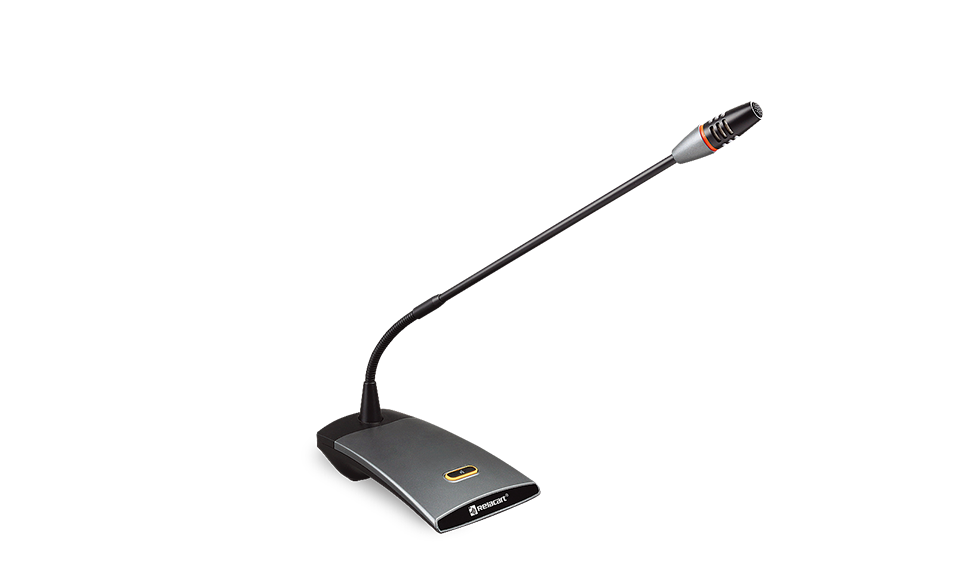

The TSG-550 is a wired gooseneck conference microphone installed on the desktop. It uses a 48V phantom power supply and has strong compatibility. Capacitive cardioid directional pickup with wide frequency response provides clear and smooth high fidelity sound quality.
Details
Specifications
Microphone Type: Condenser Cardioid
Frequency Response: 45Hz-18KHz
Sensitivity: -32dB at 1V at 1Pa Impedance: 250 ohms
Maximum input sound pressure level: 125dB, 1KHz at 1% T.H.D.
Dynamic range (typical): 105dB, 1KHz at maximum sound pressure
Signal-to-noise ratio: >70dB, 1KHz at 1Pa
Switch: On/Mute
Power supply: DC11-52V phantom power supply, power consumption 5mA (typical)
Working temperature: -20℃~45℃
Output connector: built-in 3-pin aviation socket
Microphone length: 395mm
Base size (mm): 150(L)×105(W)×43(H)
Weight: 820g
