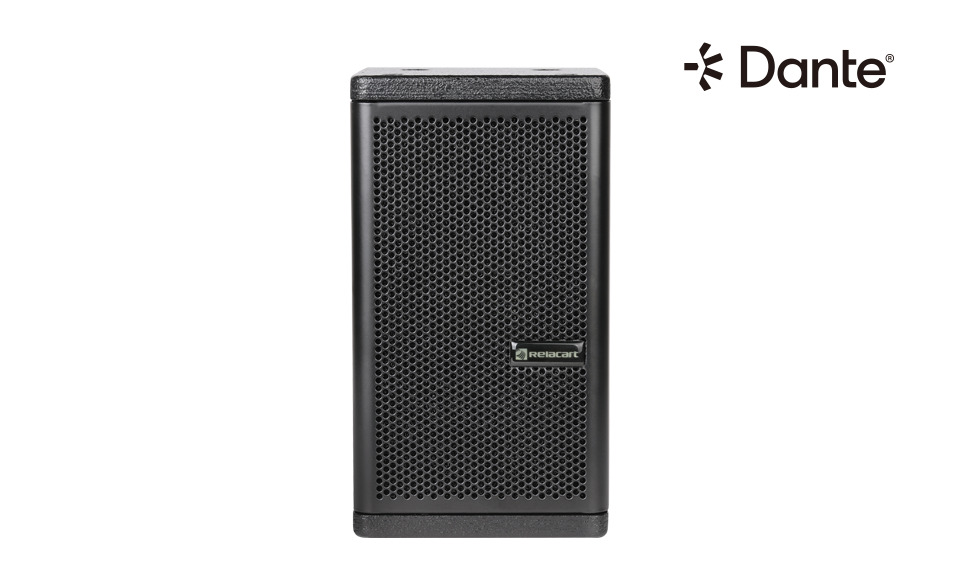

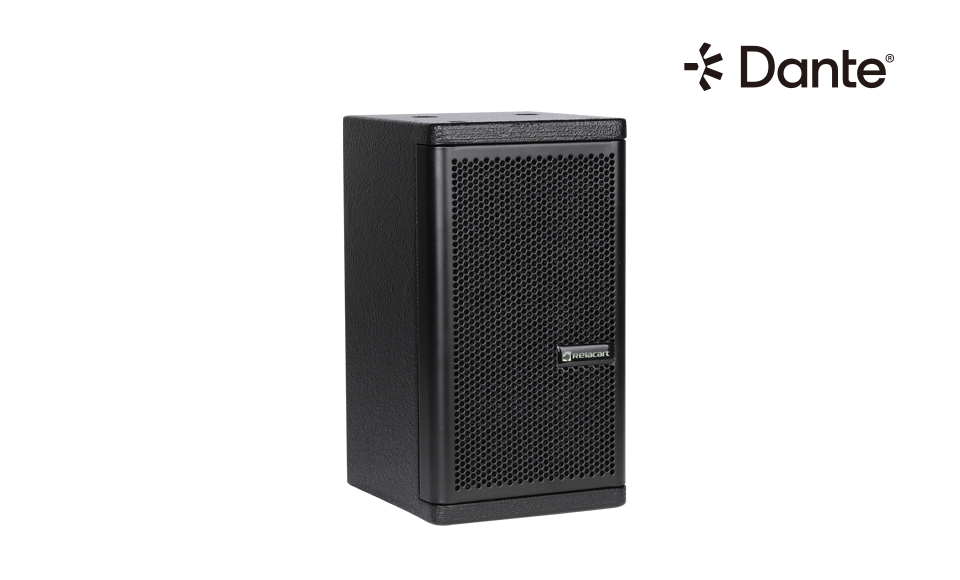

RDA20

Dante Audio Networked Enabled Speaker System

The RDA20 is an integrated active full frequency speaker with network transmission and pure digital power amplifier. The speaker is powered by PoE+ network switch meaning no external power supply is required. The speaker includes a Class D amplifier which provides. Connect a network cable to communicate with the built-in Dante module to realize network audio signal transmission. By automatically assigning an IP address through the router DHCP, it can transmit signals with Dante's audio matrix in the LAN, and it is easy to set up a full digital network sound reinforcement system. Suitable for education, hospitals, small and medium-sized conference rooms, home theaters, restaurants, houses of worship and other places.

Product Description

The RDA20 is an integrated active full frequency speaker with network transmission and pure digital power amplifier. The speaker is powered by PoE+ network switch meaning no external power supply is required. The speaker includes a Class D amplifier which provides. Connect a network cable to communicate with the built-in Dante module to realize network audio signal transmission. By automatically assigning an IP address through the router DHCP, it can transmit signals with Dante's audio matrix in the LAN, and it is easy to set up a full digital network sound reinforcement system. Suitable for education, hospitals, small and medium-sized conference rooms, home theaters, restaurants, houses of worship and other places.

Functional Features

Functional diversification

It has perfect protection functions (short circuit protection, overcurrent protection, over and under protection, DC protection, overheating protection, power voltage limit, clipping limiter), high efficiency and high sound energy output, excellent sound quality, perfect protection functions and good electromagnetic compatibility characteristics

Intelligent IP allocation

Automatically assign IP addresses through router DHCP

XLR socket

XLR RJ45 socket

Dante Network Mode

Full frequency speaker integrating network transmission and pure digital power amplifier

Details

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Power supply: standard POE / POE +

Supply voltage: 37V-57V

Output power: POE 10W / POE + 20W

Frequency response (-3dB): 85Hz-17KHz

Sound pressure level output (-6dB): 110dB / aes continuous; 113dB / peak

Coverage angle: horizontal / vertical 90 ° / 90 °

Input jack: RJ45

Size: width 132 * depth 160 * height 236

Weight: about 2.93KG

Accessories: wall bracket

Support

Product Brochure

RDA20-Brochure
