EZD.B8

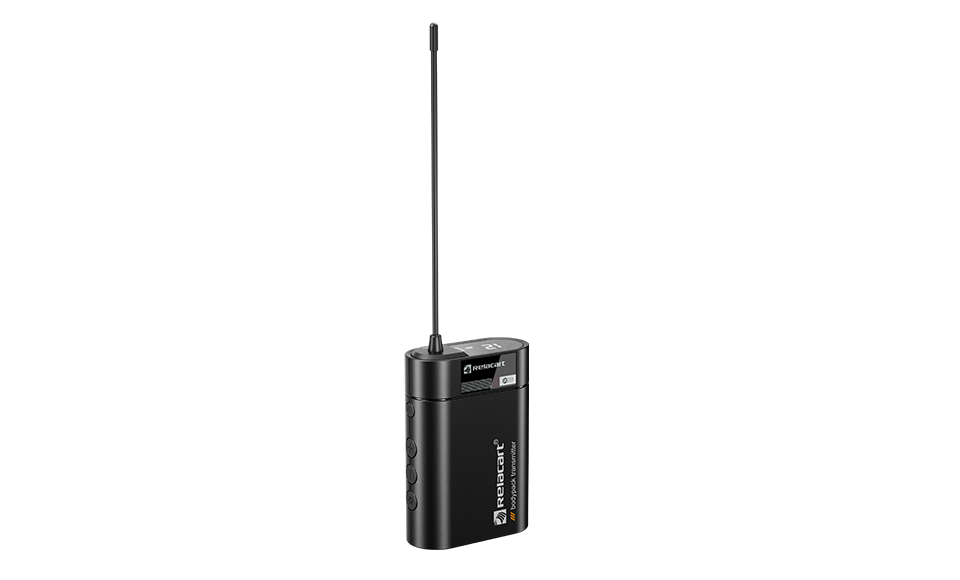

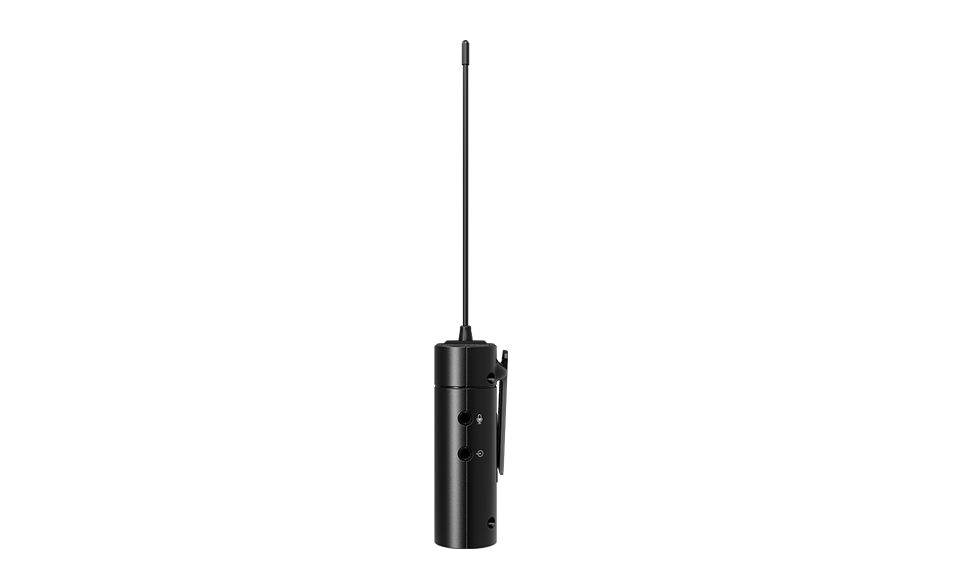

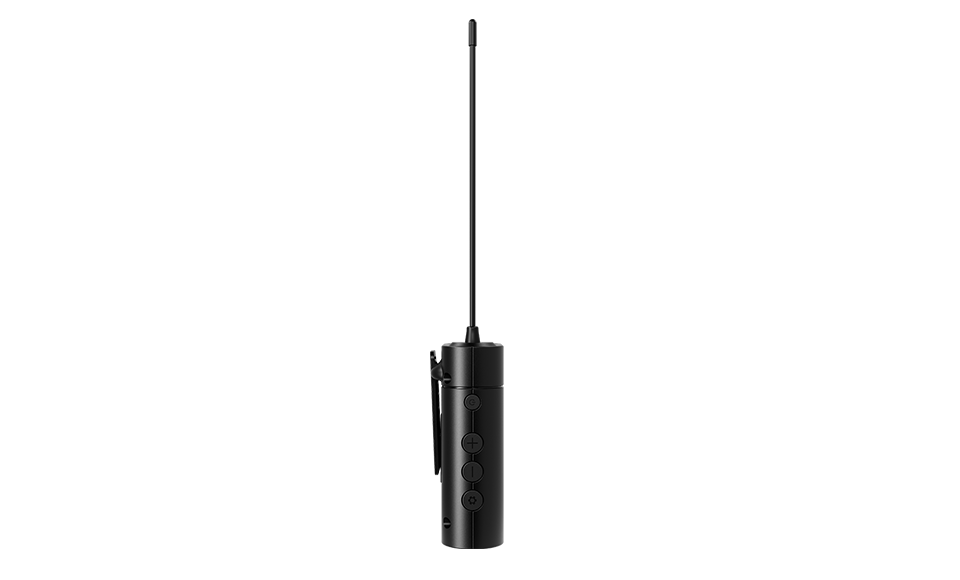

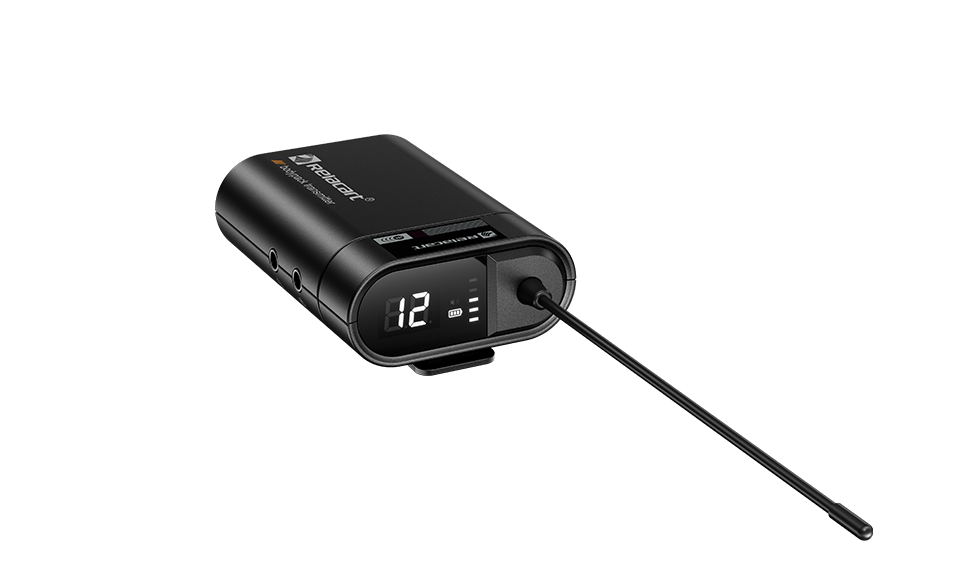

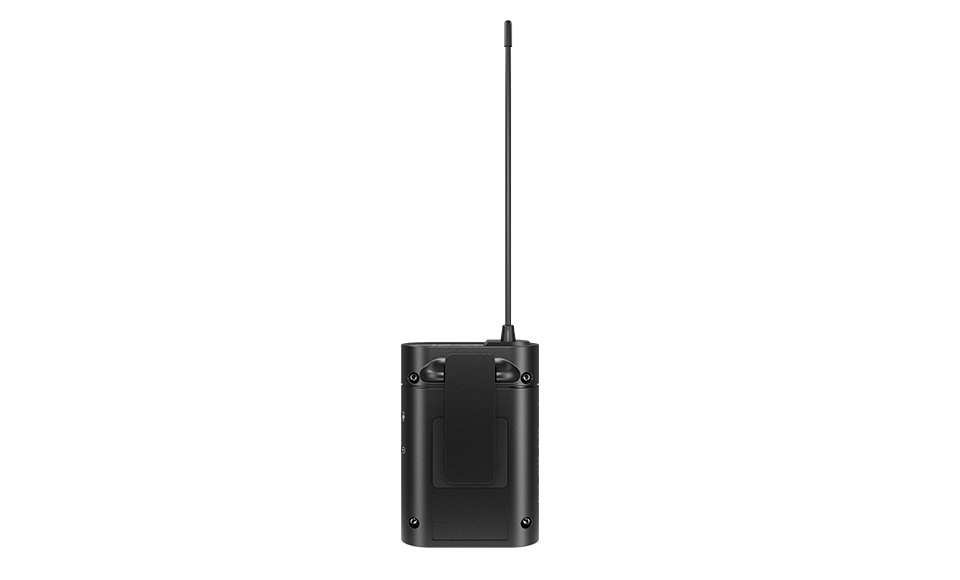

Bodypack Transmitter

Product Description

The EZD.B8 is a rugged and durable bodypack transmitter designed for reliable performance. Its compact and lightweight construction allows comfortable waist-worn use or discreet placement under clothing. Compatible with the EZD.MI Series Digital Wireless Microphone System, it features a 3.5mm external microphone interface for connecting Relacart LM-P01 lapel microphones or HM-P06 headset microphones.


Powered by two AA batteries with an energy-efficient design, it delivers 8–10 hours of continuous operation. Suitable for diverse scenarios including home entertainment, personal performances, commercial events, and conference environments.



Details

Specifications

Package Contents

Connection diagram

Polar Pattern

Frequency Response

Carrier Frequency Range: 470MHz - 936MHz

Harmonic Radiation: More than 45dB below carrier

Bandwidth: 128MHz (region-dependent)

Modulation: QPSK

Occupied Bandwidth: 250kHz

Audio Input: 3.5mm external microphone interface

RF Output Power: +13dBm

Battery: 2×AA

Current Consumption: 150mA (typical)

Battery Life: Approx. 8 hours (alkaline)

Dimensions (mm): 198 (H) × 52.5 (W) × 28 (D)
