Main Frame Size: EIA STANDARD 1U
Channels: Dual Channel
Frequency Stability: ±0.005% (0~50°C)
Carrier Frequency Range: 521.25MHz-936.85MHz
sampling rate: 96kHz 24-Bit
Default audio equalizer: simulate of various cartridge sound
Modulation Mode: FM stereo modulation
Operating Range: 80M typical ( in open space)
Oscillation: PLL synthesized
Sensitivity: 5dBμV, S/N>60dB at 25 deviation
Max. Deviation Range: ±45KHz
S/N: ＞100dB
T.H.D.: ＜0.5% @ 1KHz
Frequency response: 45Hz-18KHz ±1dB
Power Supply: DC 12~18V/1A
Weight: 2.0kg
Dimension (mm): 410(W)x43(H)x206(D)

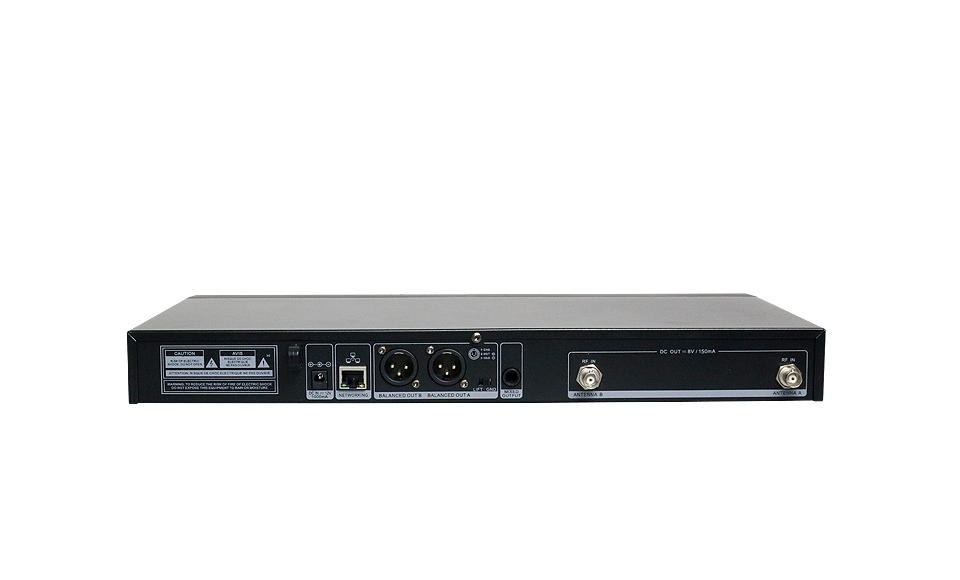

Output Connector: LR balanced & 6.3φ phone jack unbalanced
