MAX-L

Audio Adapter

Product Description Details

Product Description

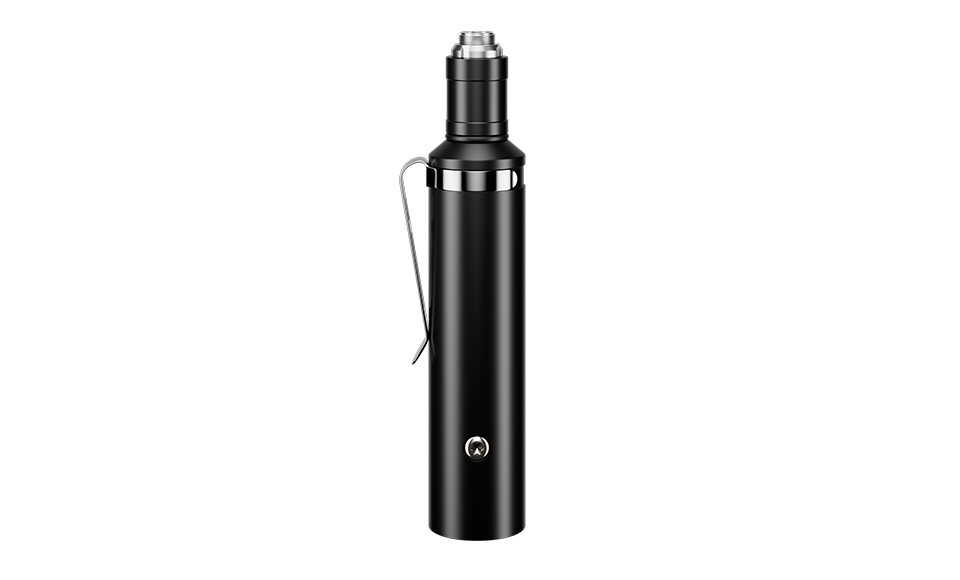

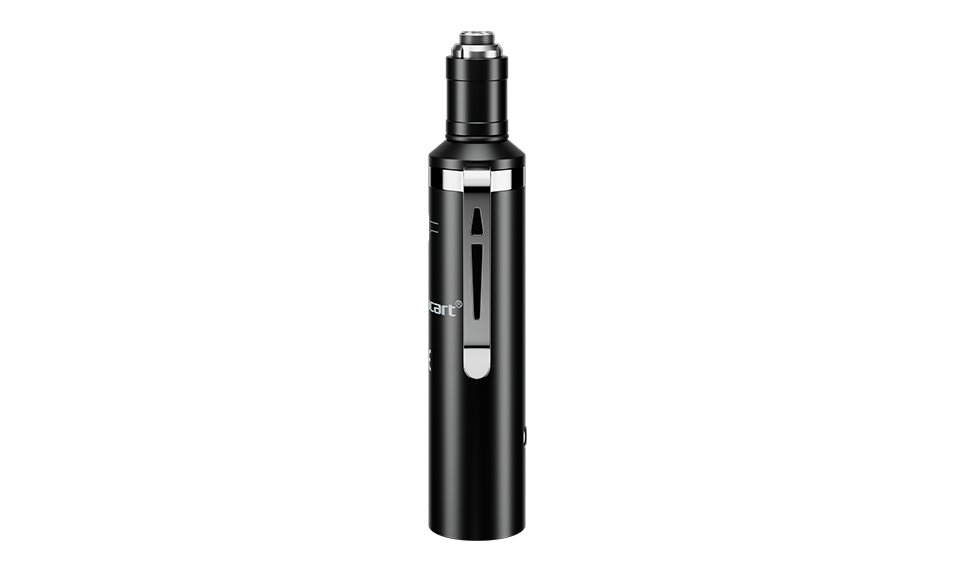

The MAX-L is a brand-new audio adapter from Relacat. It routes audio from lavalier or headworn microphones to mixers and other devices via an XLR connector, eliminating the need for a wireless bodypack and preventing recording or live streaming failures caused by dead batteries. Featuring selectable flat and high-pass filter modes, it adapts to different scenarios, making it ideal for long-duration applications such as live sports broadcasting and program recording.

Details

Specifications

Package Contents

Connection diagram

Polar Pattern

Frequency Response

Frequency Response: 20 Hz – 18 kHz
Low-cut Frequency Response: 200 Hz – 18 kHz
Maximum Output Level: -17 dBV (-20 dBV, 1% THD @ 1 kHz)
Output Impedance: 250 Ω
Dynamic Range (typical): 88 dB, 1 kHz at max SPL
Switch: Flat, High-pass filter
Phantom Power: DC 10–52 V
Current Consumption: 1 mA (typical)

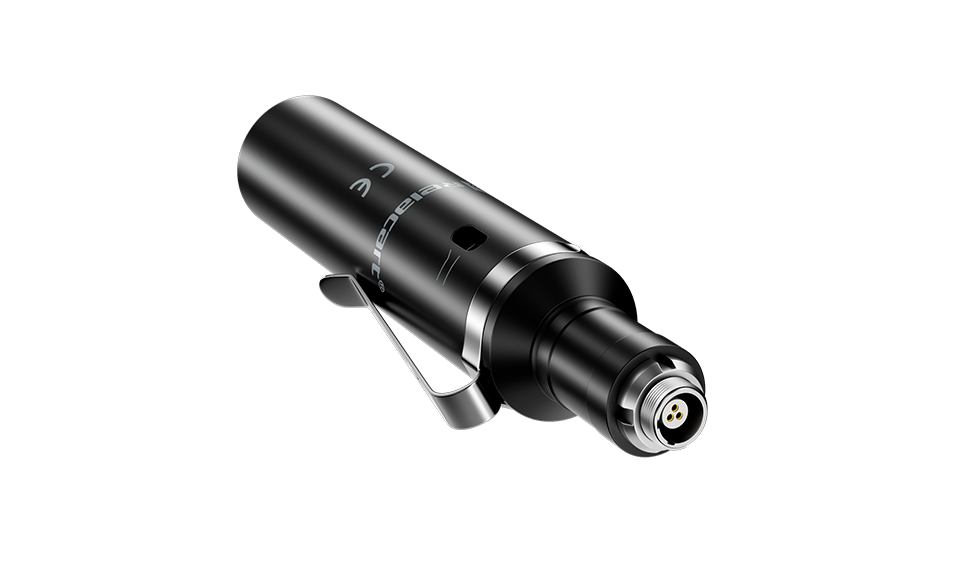

Input Connector (built-in): Lemo 3-pin female; 1 GND, 2 MIC (6.0 V), 3 NC

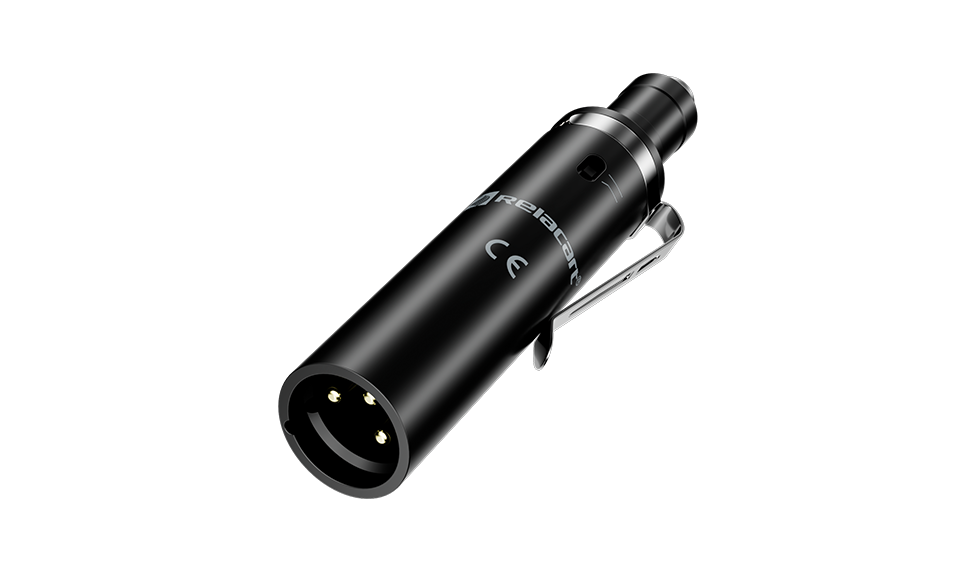

Output Connector (built-in): 3-pin XLR male
Dimensions: Length: 99 mm
Diameter: 20 mm
