UB-D1

Bodypack Transmitter

Product Description Details

Product Description

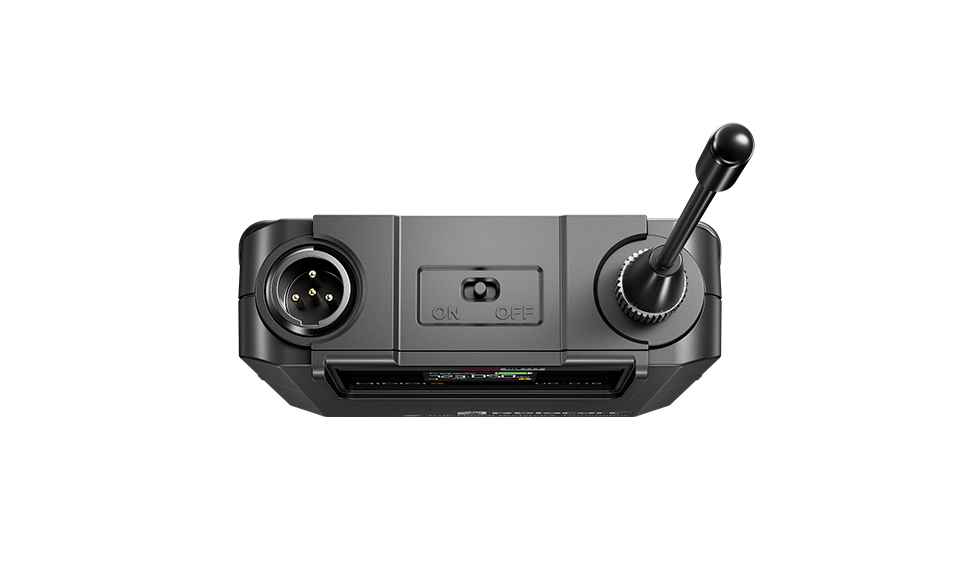

The UB-D1 is an exceptionally compact and lightweight bodypack transmitter designed for comfortable, unobtrusive wear on the waist or clothing. Compatible with the Relacart UR-D Series Digital Wireless Microphone System, it features a 4-pin mini XLR interface for connecting headset or lapel microphones.

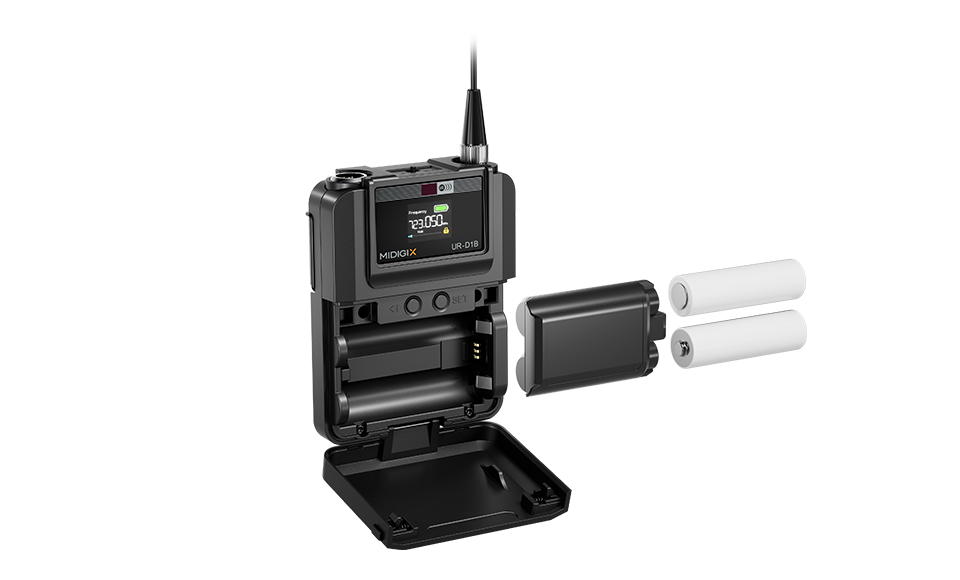

Powered by two AA batteries and engineered with precision circuitry, it delivers up to 8 hours of continuous operation. Ideal for stage performances, video recording, live broadcasts, and interviews.

Details

Specifications

Package Contents

Connection diagram

Polar Pattern

Frequency Response

Carrier Frequency Range: 470MHz–936MHz

Audio Frequency Response: 20Hz–20kHz ±1dB

Harmonic Radiation: >45dB below carrier

Bandwidth: 64MHz per channel (region-dependent)

Modulation: QPSK

Occupied Bandwidth: 200kHz

Audio input: 4-pin mini XLR connector

Impedance: 50Ω

RF Output Power: High / Medium / Low (selectable)

Gain Adjustment Range: +15dB to -5dB (1dB steps)

Battery: 2×AA

Current Consumption: 270mA (typical)

Battery Life: Approx. 8 hours (alkaline)

Dimensions (mm): 65 (L) × 21.3 (W) × 75.5 (H)
