Product Description

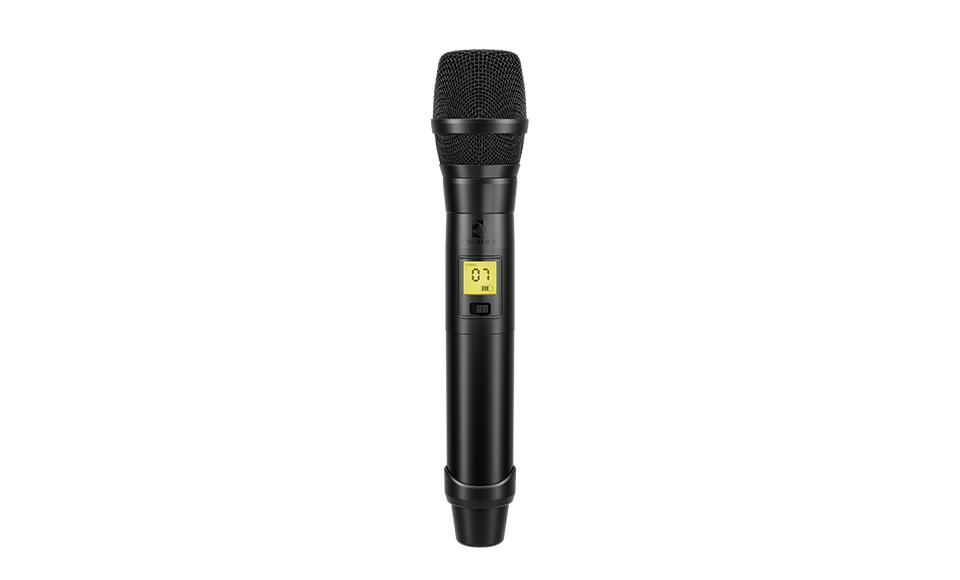

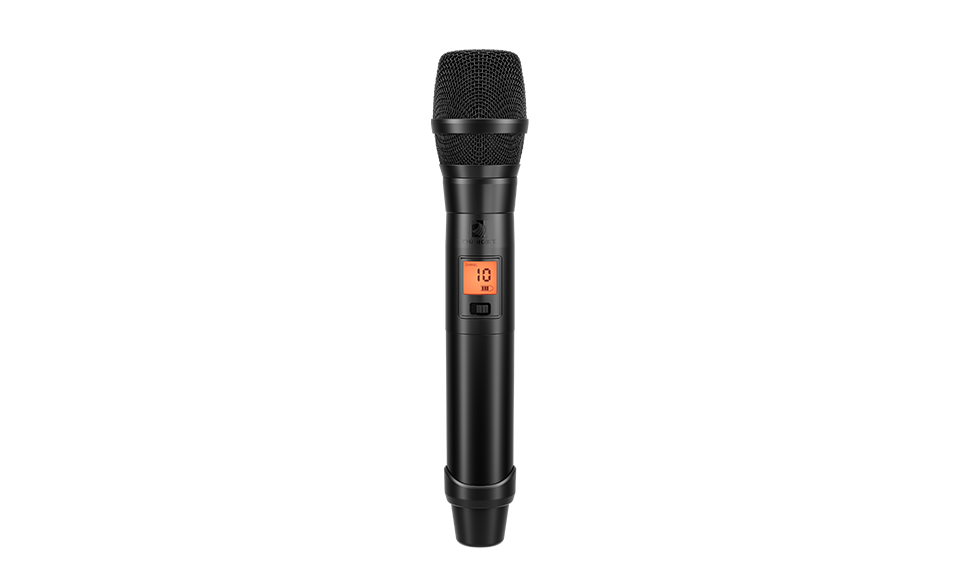

The EZD.H9 features a modern and stylish design, constructed with durable alloy for long-lasting use. Compatible with the EZD.MI Series Digital Wireless Microphone System, it integrates a high-quality dynamic microphone capsule with full digital transmission algorithms to deliver rich, clear audio.
Powered by AA batteries and designed with an energy-efficient circuit, it offers an extended battery life of 8–10 hours. Ideal for a wide range of scenarios, including home entertainment, personal performances, commercial events, and conference environments.
Details
Specifications
Package Contents
Connection diagram
Polar Pattern
Frequency Response
Carrier Frequency Range: 470MHz–936MHz
Harmonic Radiation: >45dB below carrier
Bandwidth: 128MHz (region-dependent)
Modulation: QPSK
Occupied Bandwidth: 250kHz
Transducer Type: Dynamic
RF Output Power: +13dBm
Battery: 2×AA
Current Consumption: 150mA (typical)
Battery Life: Approx. 8 hours (alkaline)
Dimensions (mm): Ø55 × 269 (L)
Components
