Product Description

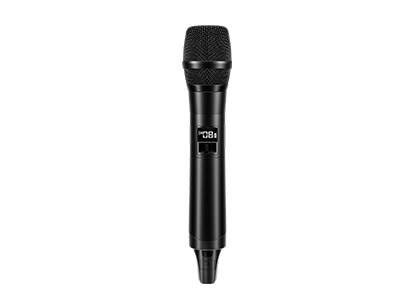

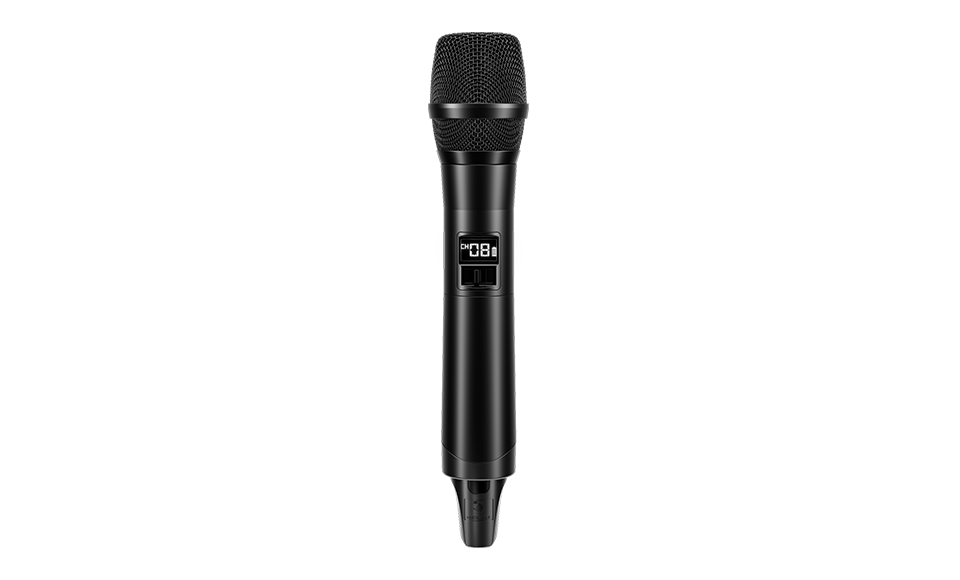

The casing is made of sturdy and durable aluminum alloy, and is equipped with bright OLED to clearly display working status such as frequency band, power, group, lock/unlock, etc. Powered by two pc of AA battery or NiMH battery. It can be put in the dual-bay charger for charging when adopt NiMH battery. It is suitable for various occasions that require frequent charging.
Details
Connection diagram
Polar Pattern
Package Contents
Specifications
Frequency Response
Audio Format: Relacart proprietary digital audio format
Wireless Carrier Frequency: 2.4-2.48GHz
Transmission Method: Frequency diversity
Modulation Method: GFSK
Transmission Rate: 1Mbps
Sampling: 24bit/48kHz
Compatible Channels: ≥ 14
Display Channel: OLED
Dynamic Range: ≥ 110dB (A-weighted)
Frequency Response: 20Hz-20kHz (± 1dB)
Sensitivity: ≤ -45dB
RF Power: ≥ 50mW
Power Supply: Alkaline battery (AA) x 2
Current Load: 145mA (typical value)
Battery Life: ≥ 8 hours
Dimensions(mm): 55 (Φ) × 269 (L)
