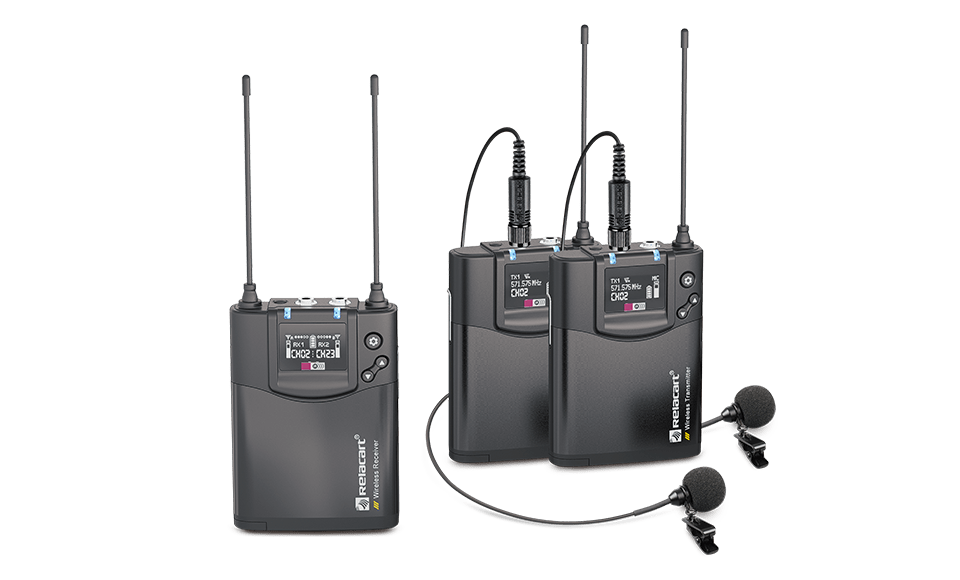

CR2 UHF wireless microphone system that is compatible with smart phones (3.5mm interface), digital / SLR cameras, camcorders, recorders, tablet computers and other devices to help pick up high-fidelity audio. This product is suitable for interviews, Micro movie recording or business presentations. The main feature is that both the transmitter and receiver use high-brightness OLED displays to display corresponding product information and support Chinese and English language selection. The infrared is automatically SYNC and locked to the selected application frequency. The transmitter supports Mic and Line interfaces, volume adjustment, RF output power adjustment and so on. The receiver supports headphone and output volume adjustment, with AFS function. Working range is about 60 meters.
Product Description
CR2 UHF wireless microphone system that is compatible with smart phones (3.5mm interface), digital / SLR cameras, camcorders, recorders, tablet computers and other devices to help pick up high-fidelity audio. This product is suitable for interviews, Micro movie recording or business presentations. The main feature is that both the transmitter and receiver use high-brightness OLED displays to display corresponding product information and support Chinese and English language selection. The infrared is automatically SYNC and locked to the selected application frequency. The transmitter supports Mic and Line interfaces, volume adjustment, RF output power adjustment and so on. The receiver supports headphone and output volume adjustment, with AFS function. Working range is about 60 meters.
Functional Features
Real-time Monitoring
Output volume and monitor headphone volume can be adjusted independently.
DSP Digital Audio Companding
DSP digital audio companding, using 48KHz audio sampling rate, to minimize noise in the wireless transmission system.
Feature Anti-Interference
Multiple switchable frequency or use AFS function to achieve operation without environmental interference; The transmit power is adjustable.
IR Infrared
Infrared frequency is automatically SYNC and the corresponding frequency is locked.
Widely Compatible
Widely compatible with smart phones, digital SLR cameras, camcorders, recorders, and personal computers.
High Fidelity
UHF dual channels wireless transmission, providing high-fidelity audio source.
Details
Connection diagram
Polar Pattern
Package Contents
Specifications
Frequency Response
RF Carrier Range:521.25MHz-936.85MHz
Frequency Stability:0.005%
Operating Range(environment dependent):≥60M
Companding:Relacart classic audio companding circuit,
Audio sampling rate:48KHz
Audio Frequency Response:50Hz~1600Hz ±3dB
Dynamic Range:85 dB
Signal-To-Noise Ratio(A-Weighted):80 dB
Total Harmonic Distortion:≤1%,@1KHz
Operating Temperature Range:-10℃ ~ +50℃
Components
