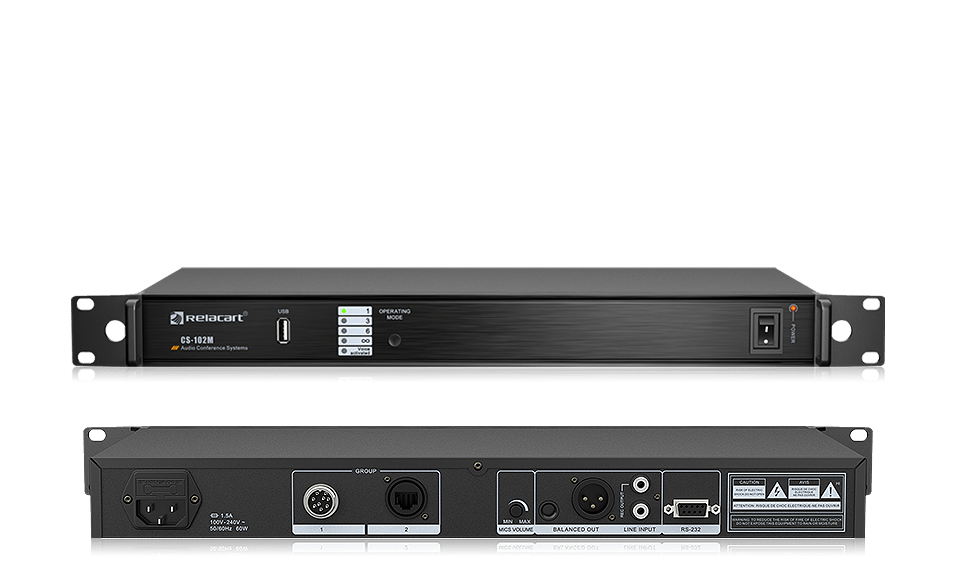

CS-102

Conference Central controller

Product Description

The CS-102M is a simple, affordable discussion audio conferencing system. CS-102M central controller is the control center of the whole system, including conference mode selection, external output sound reinforcement level, line input function, etc. The system can be connected to 45 microphone units, with voice input automatic gain, howling suppression, FIFO and voice control functions; it can be connected to an external power amplifier for sound reinforcement; it can be directly installed on an EIA standard 1U rack, with a 10 Meter connection cable, with auxiliary audio signal input and output function, easy to connect other devices.

Technical Specifications

Main Frame Size: EIA standard 1U

Power supply voltage: AC 100-240V 50/60Hz

AC 100-240V 50/60Hz: 60 W

Frequency Response: 65 Hz - 15 KHz

Signal-to-noise ratio (S/N): >85 dB

Distortion (T.H.D):<0.7%

Audio input: LINE IN: 0 dBV (f=1 KHz, THD<0.3%)

Audio output: XLR: -10 dBV、6.3mm: -15dBV、RCA: 0dBV

Connecting cable: Anti-detached 9 core shielded cable/Cat5 typeB network cable

RS-232 control interface: can be connected to intelligent central control and camera tracking system

Dimensions (mm): 410(W) x 43(H) x 206(D)

Weight: about 2.3kg
