Chassis specifications: EIA Standard 1U
Supply voltage: 90-264V AC or 127-370V AC，47-63Hz
Static power consumption:6W
Rated power: 75W/24V
Maximum power: 100W/24V
XLR balances carnon maximum output level: 14.6dBu
Maximum output level of the 6.35mm balance socket: 14.6dBu
RCA lotus socket maximum output level: 9.8 dBu
RCA lotus socket maximum input level: 3.2 dBu

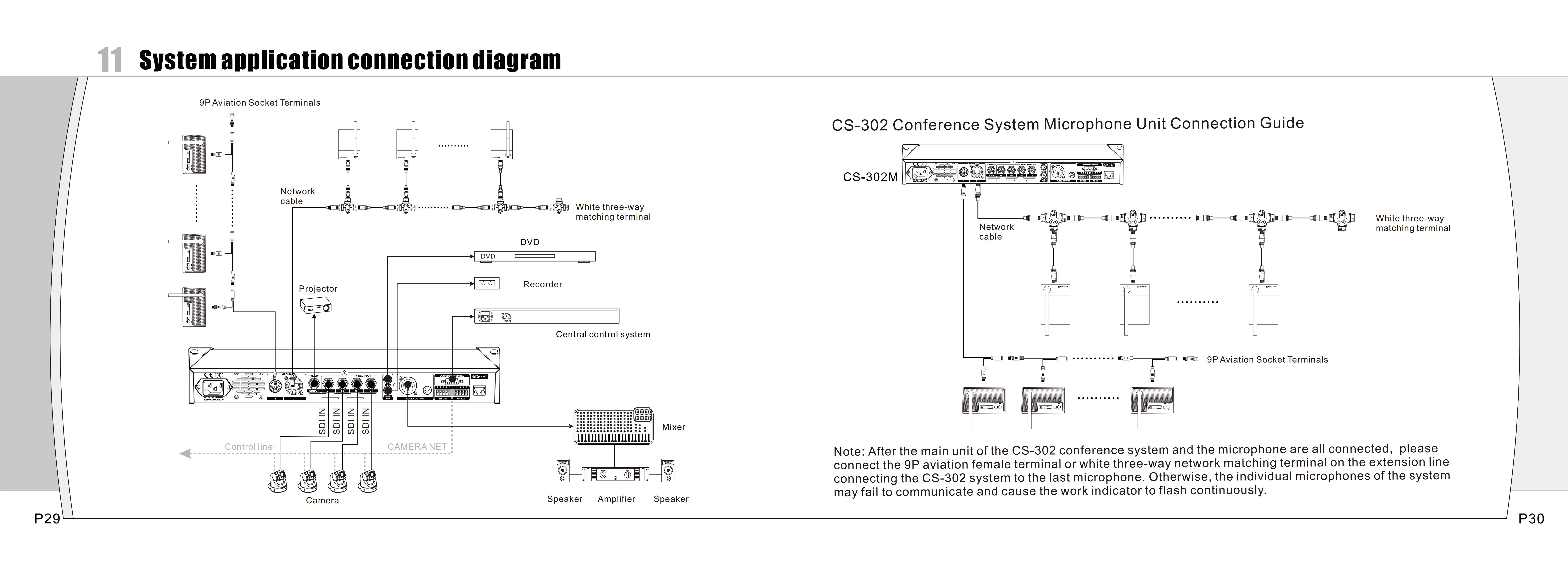

Conference unit extension: Anti drop 9P aviation plug x 1、Network port (female) x1
Video input port: BNC x 4
Video output port: BNC x 1
Video interface impedance: 75Ω
9 pin serial port control interface: DB9 Female plug x 1
Rs-232 control protocol interface：5P Phoenix terminal X 1
Rs-422 control protocol interface：5P Phoenix terminal X 1
Dante interface: Cat5 typeB network port
Audio output: XLRM x 1, 6.35mm jack x 1, RCA Lotus x 1
Audio input: RCA Lotus x 1
Screen type: OLED
Key mode: touch style
Weight: about 2.3kg
Dimension (mm): 410 (W) x43 (H) x206 (D)
