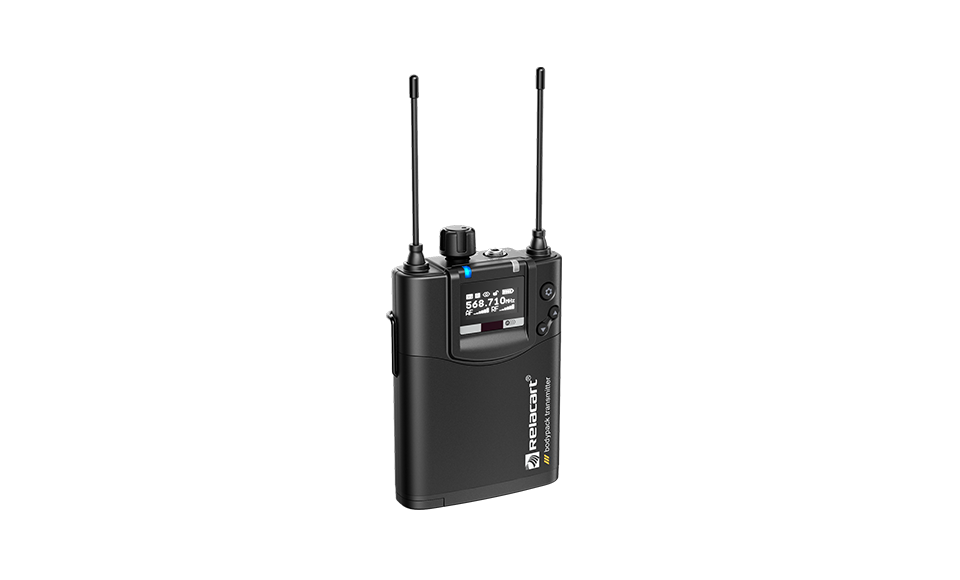

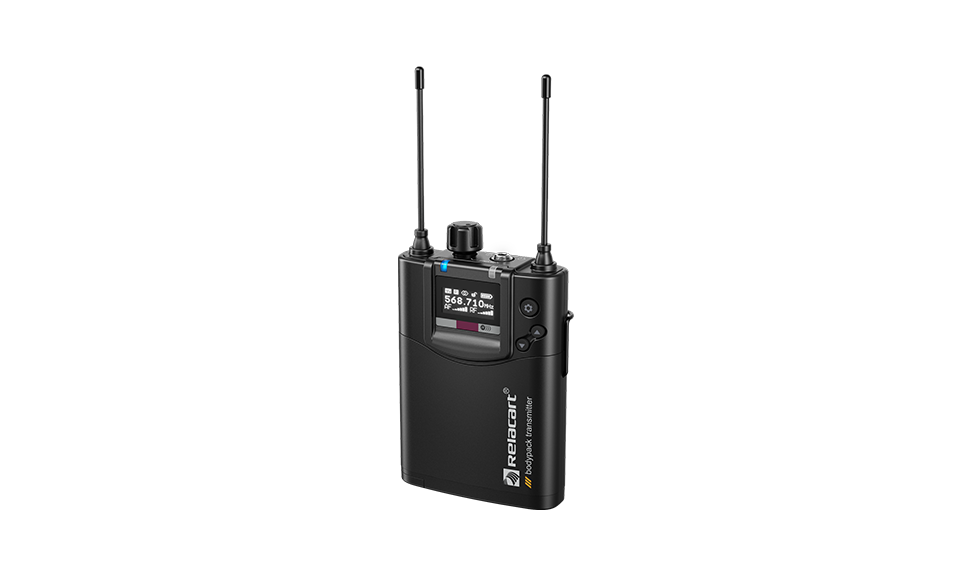

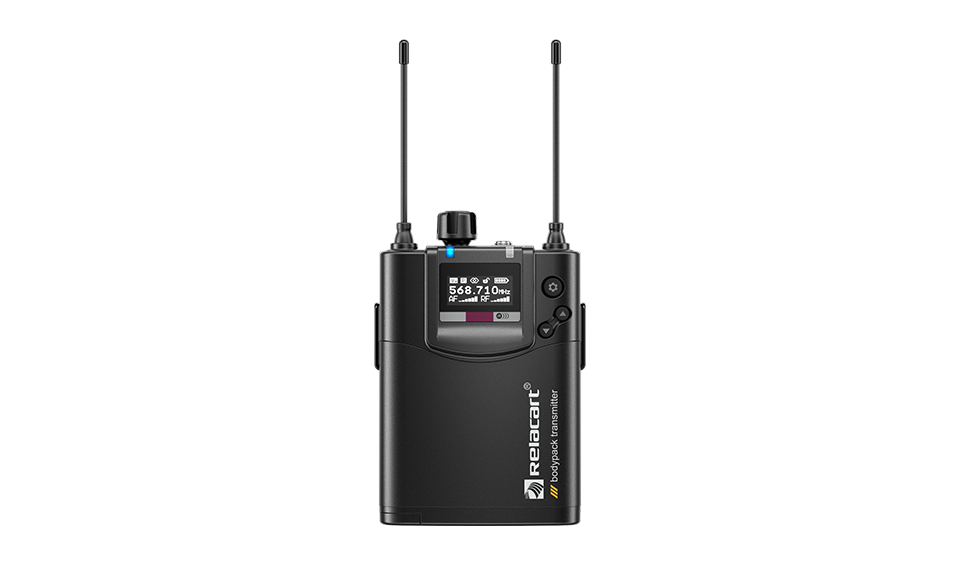

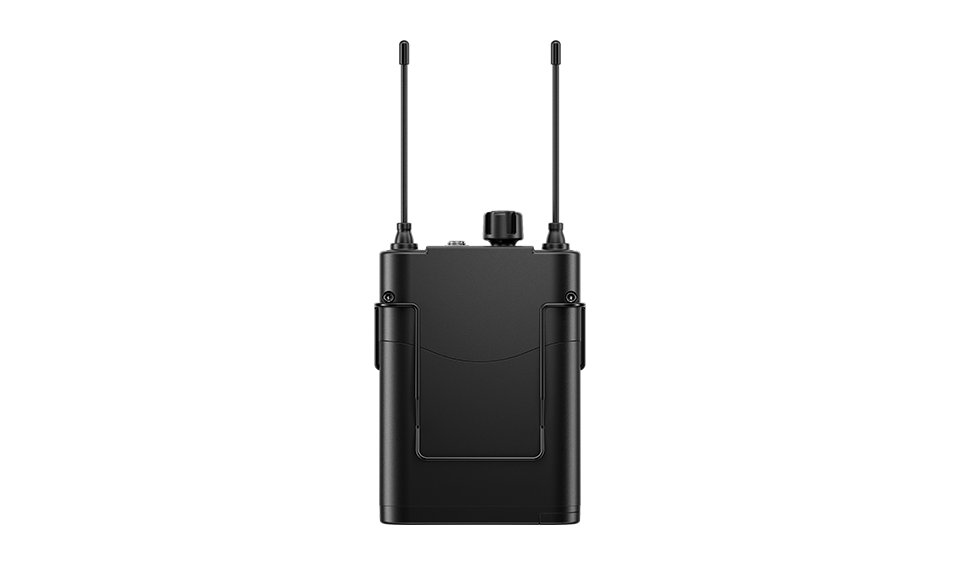

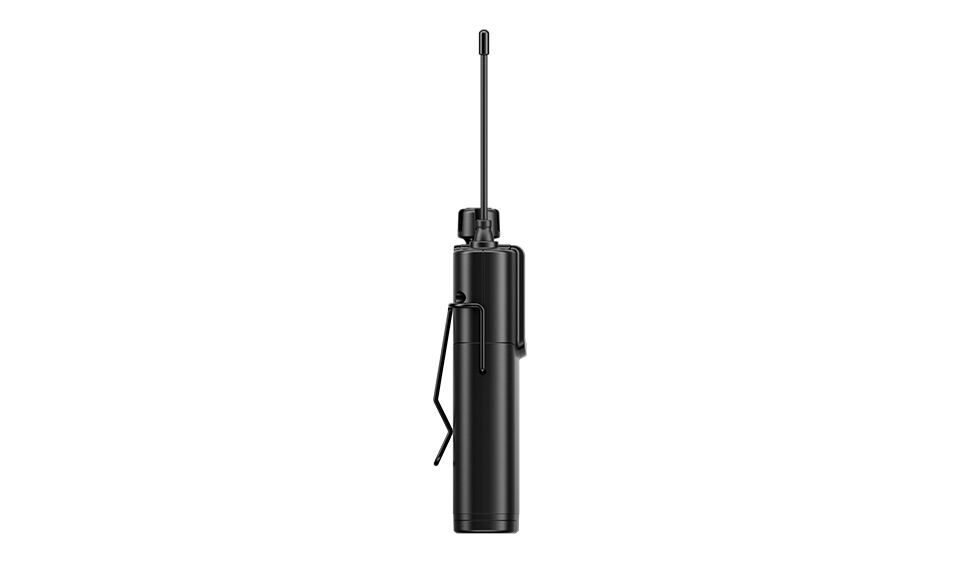

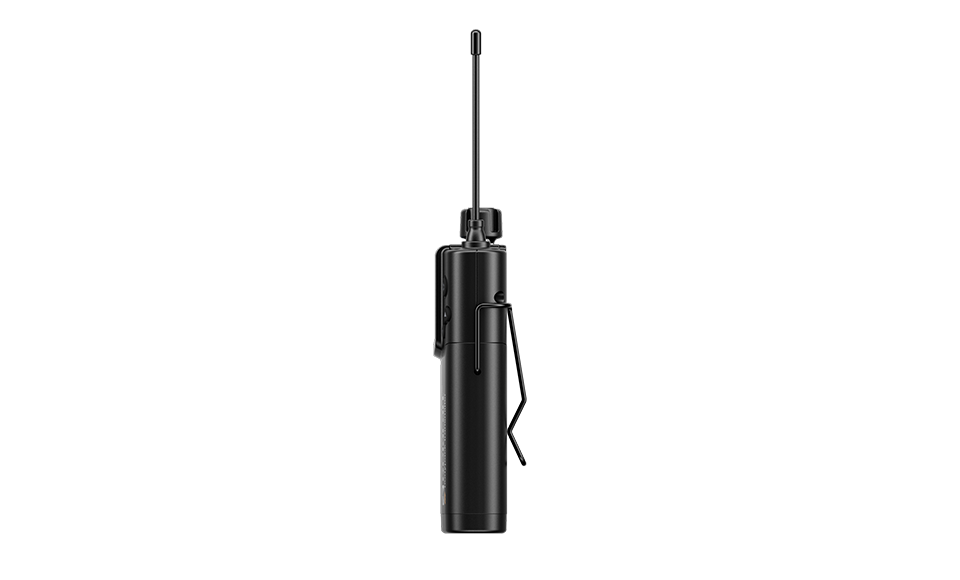

PM-320R receiver
Receiving mode: Antenna diversity receiving
Carrier frequency band: 554MHz-936MHz
Number of channel groups: Single channel
Modulation mode: FM MPX
Comprehensive T.H.D: ＜ 0.9% @ 1KHz
Comprehensive S/N ratio: ＞ 100dB
Comprehensive frequency response: 25Hz-15KHz ± 3dB
High frequency lifting:+8dB at 10KHz
Frequency stability: ± 0.005%
Effective working distance: Approximately 100 meters
Output power: 2 × 150mW at 1KHz (T.H.D: 3%)
Sensitivity: S/N ＞ 60dB when the offset is equal to 25KHz and 6dBuV
Band width: 32MHz
Stereo resolution: ≥ 55dB, at 1KHz
Current consumption: 165mA (typical)
Maximum deviation: ± 48KHz
Battery: AA × 2
Battery life: Approximately 8 hours
Limiter: 6dB per step, can be closed
Oscillation mode: PLL phase locked frequency synthesis

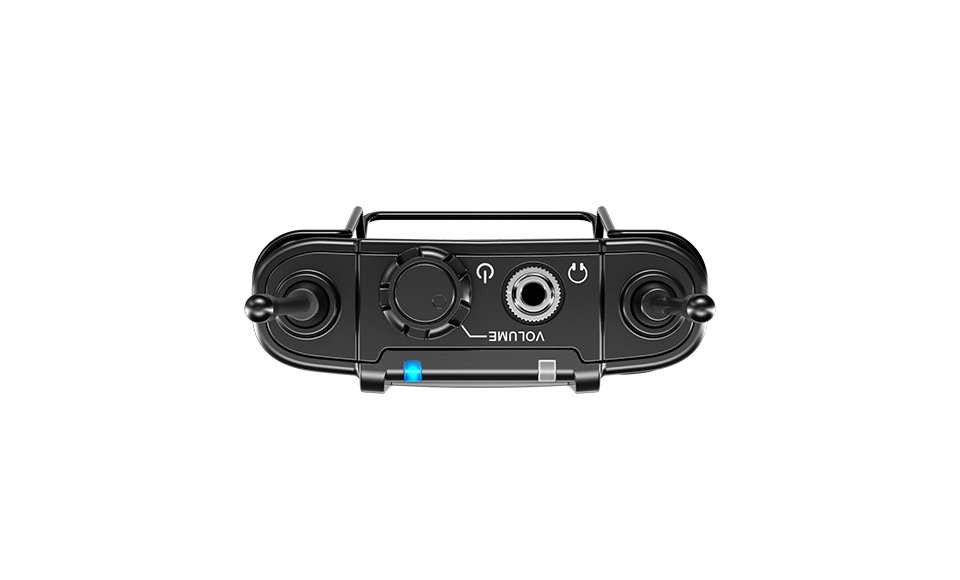

Output socket: 3.5mm stereo headphone socket
Weight: Approximately 100g

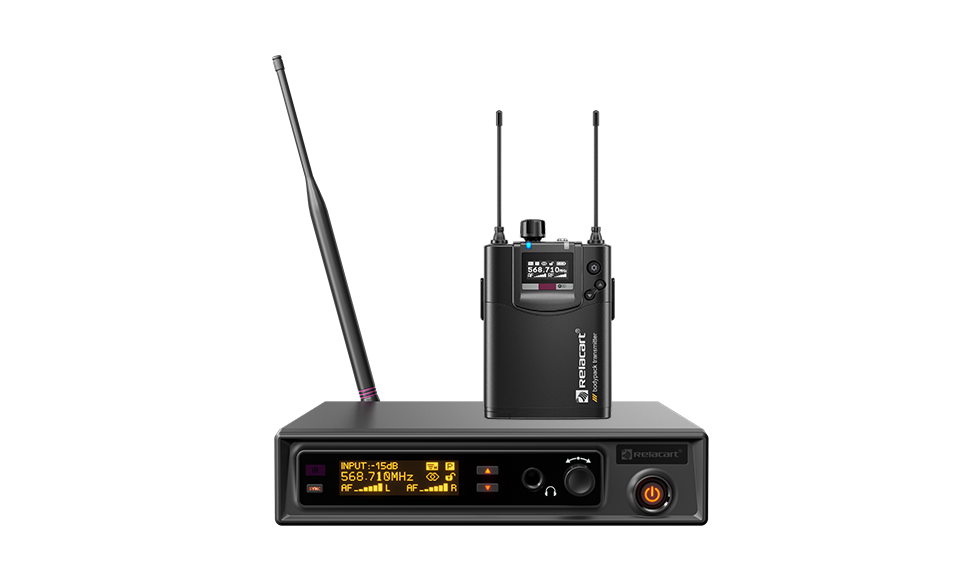

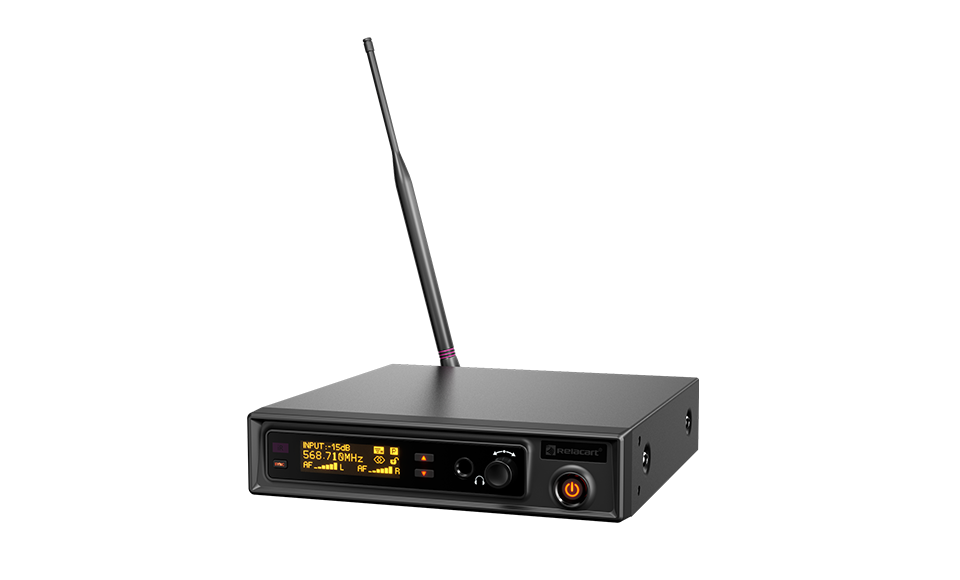

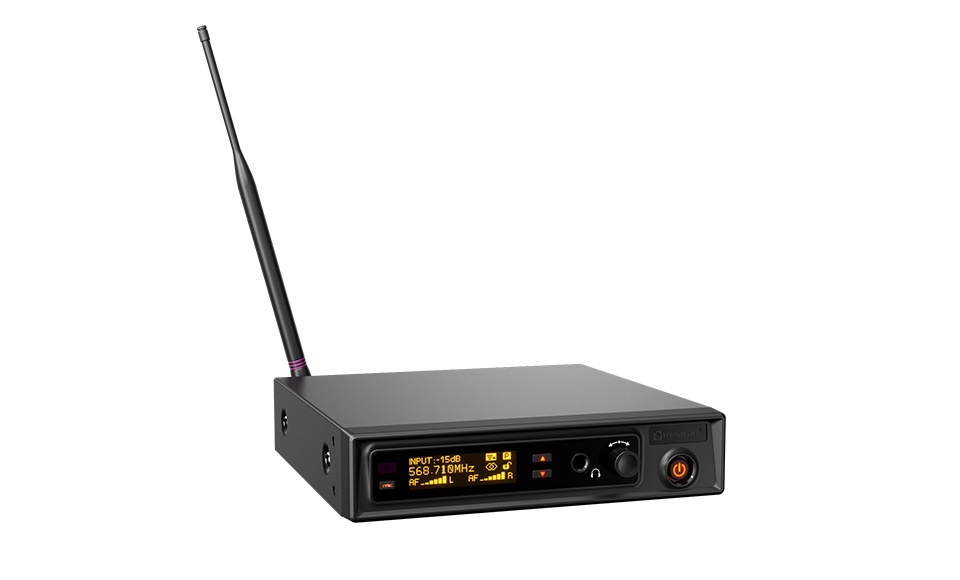

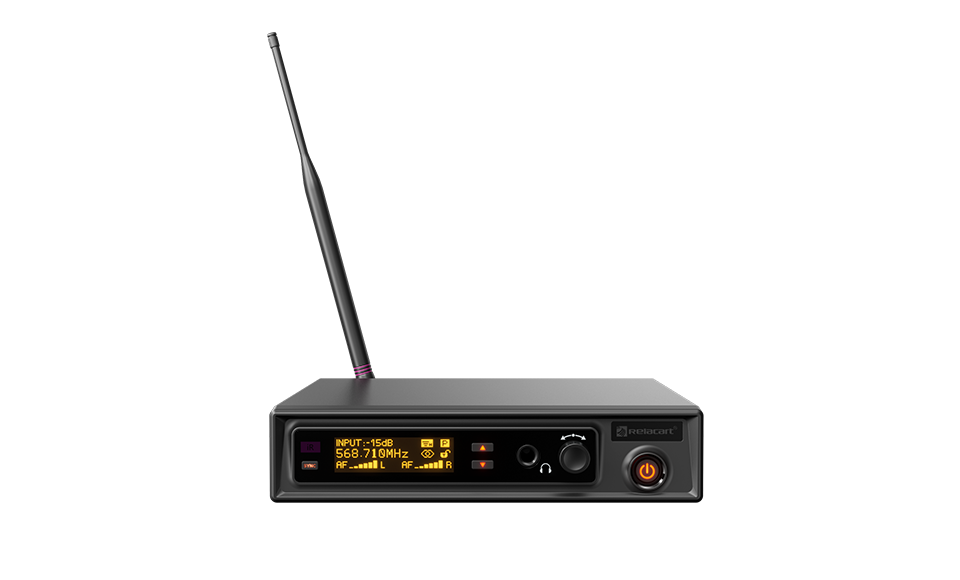

PM-320 transmitter
Chassis specification: 1/2 EIA standard 1U
Carrier frequency band: 554MHz~936 MHz
Maximum deviation: ± 50KHz
Number of channel groups: single channel
Modulation mode: FM MPX (stereo)
Comprehensive S/N ratio:>100dB
Comprehensive T.H.D:<0.9% @ 1KHz
Band width: 32MHz
Comprehensive frequency response: 25Hz-15KHz ± 3dB
Output power: 10mW
Current consumption: 140mA (typical)
Power supply mode: DC 12V
Frequency stability: ± 0.005% (0~50 ° C)
Oscillation mode: PLL phase locked frequency synthesis
Harmonic radiation: more than 60dB lower than the main wave

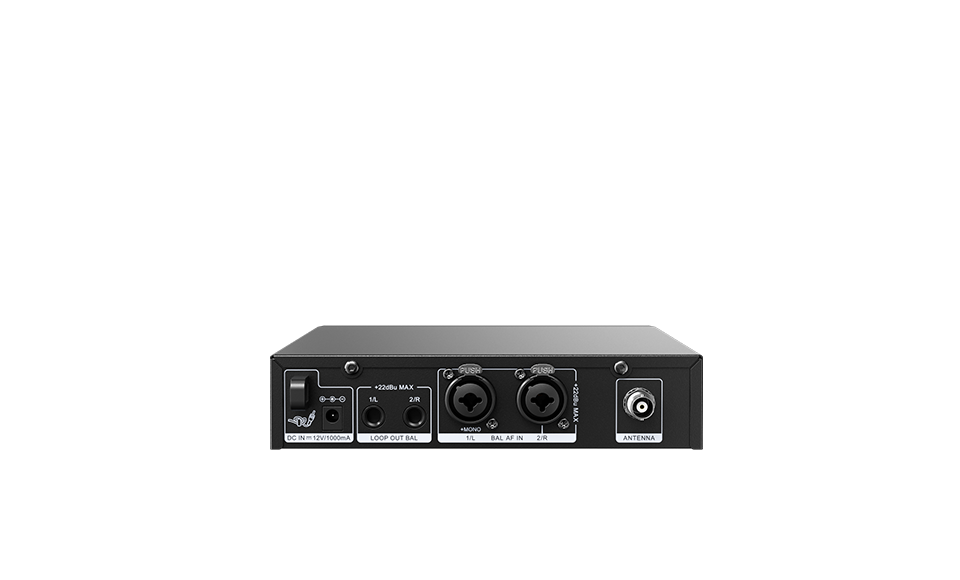

Audio output: φ 6.3mm balanced socket ×2
MPX control tone: frequency: 19KHz, deviation: ± 5KHz
Audio input: Line level × 2, XLR and φ 6.3mm co composite socket
Dimensions(mm)：200(W)× 199(D) × 44(H)
Weight: Approximately 955g
