Product Description

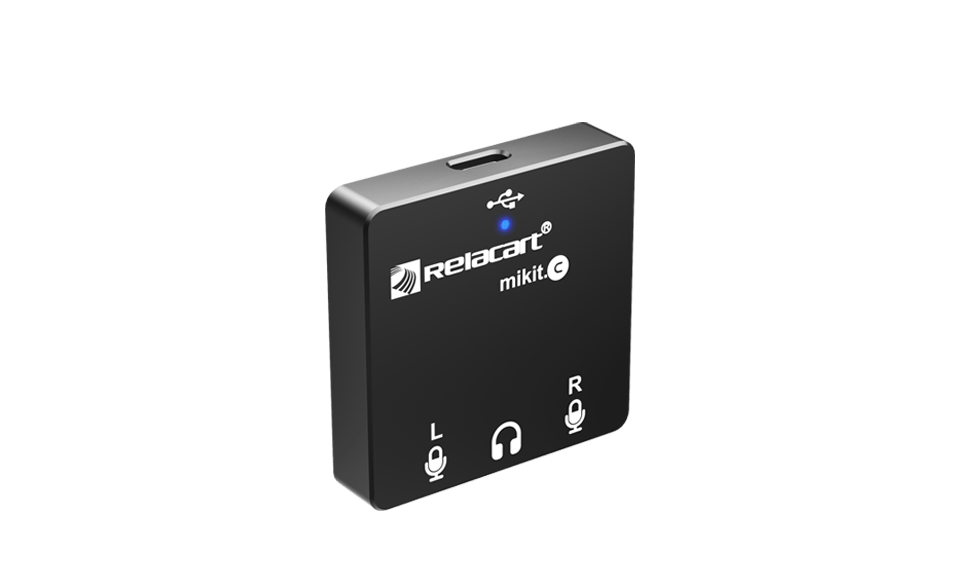

Relacart mikit series is a portable stereo digital audio converter. It can be connected to a mobile device through the USB-C interface. Use with MI.AUDIO application software. Built-in DSP processor, you can set the input gain, monitor volume, high-pass filter, limiter, equalizer, mono/stereo switch, preset and other functions. It is widely used in recording, video recording, online communication, etc. Compatible with iOS (Only for Mikit-i version), Android, Windows, Mac (Only for Mikit-i version), plug and play.
Functional Features
Easy to carry
A bag small enough to fit in jeans
DSP Audio Processor
Multiple function tuning can be set with Relacart MI.AUDIO application and built-in DSP processor
High quality audio output
High quality headphone output, zero delay for audio monitoring and playback
Wide compatibility and multi-function tuning
Compatible with 3.5 mm output microphones, including Relacart lavalier, wireless and stereo microphones
Details
Connection diagram
Polar Pattern
Package Contents
Specifications

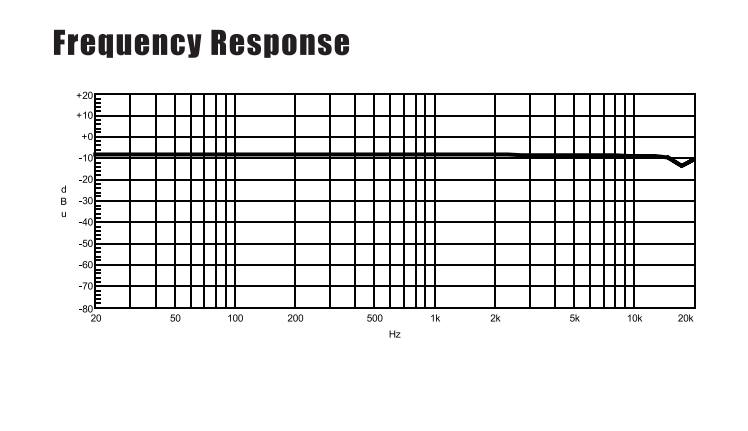

Frequency Response
Mikit Portable Audio Converter
Product Manual
Warranty Card
Model: mikit·c ( USB-C )
mikit·a (USB-C) (not yet available)
mikit· i (USB-C) (not yet available)
Gain adjustment range: 0 ~ +35dB
Frequency response: 20Hz - 20KHz
Sampling rate: 48K
Equalizer: 5-band graphic equalization / 5-band parametric
equalization, switching applications
High pass filter: 75Hz / 150Hz
Limiter: High / Medium / Low three-level adjustment
Case: all metal structure, light and small, easy to carry
Dimensions ( mm ): mikit·c: 47H x 47W x 13D
mikit·a: 210H x 47W x 13D
mikit· i: 210H x 47W x 13D
Weight: mikit·c: 30g mikit·a: 40g mikit· i: 40g
