Mi2

Dual Channel Wireless Microphone System

Inquire Now Next Product

Mi2

Product Description Details Performance Introduction FAQ

Product Description

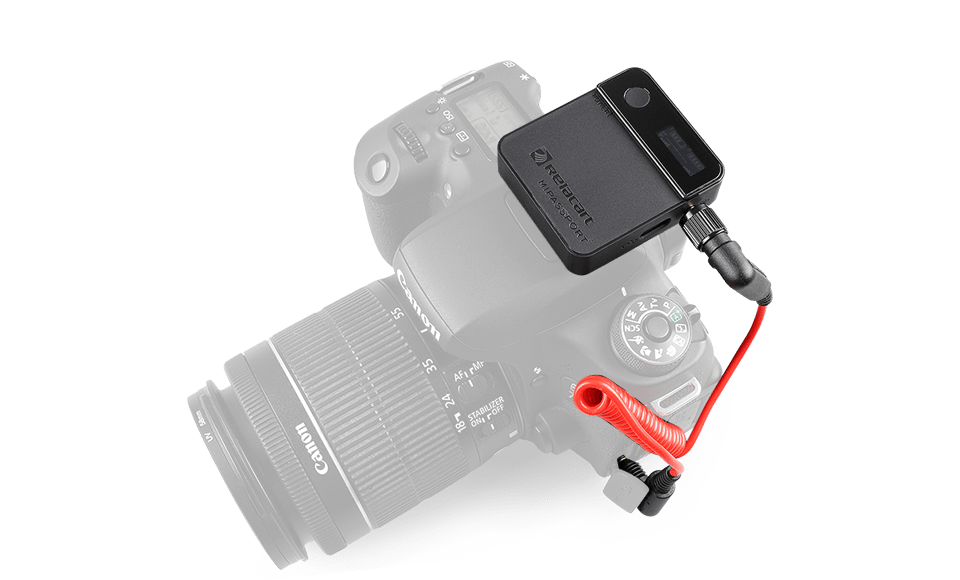

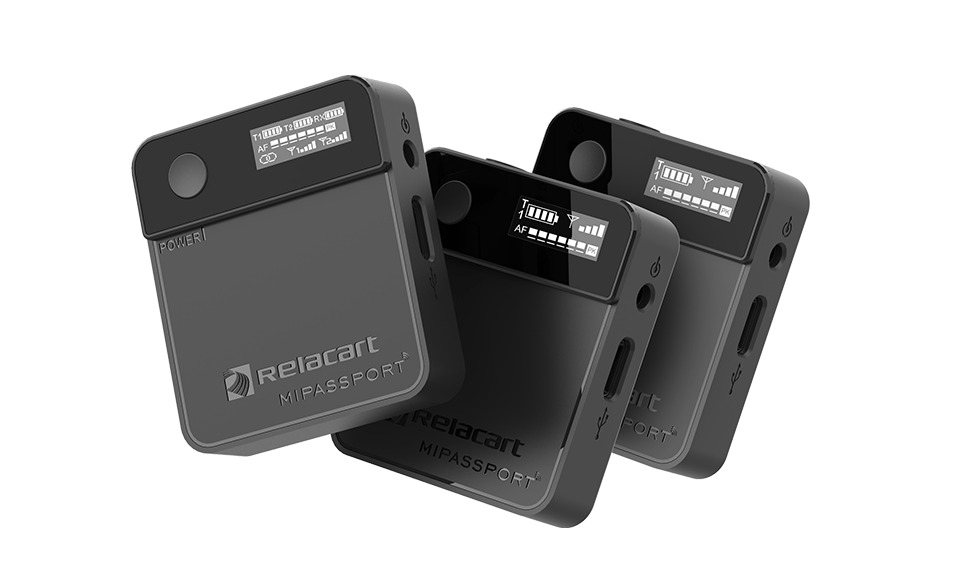

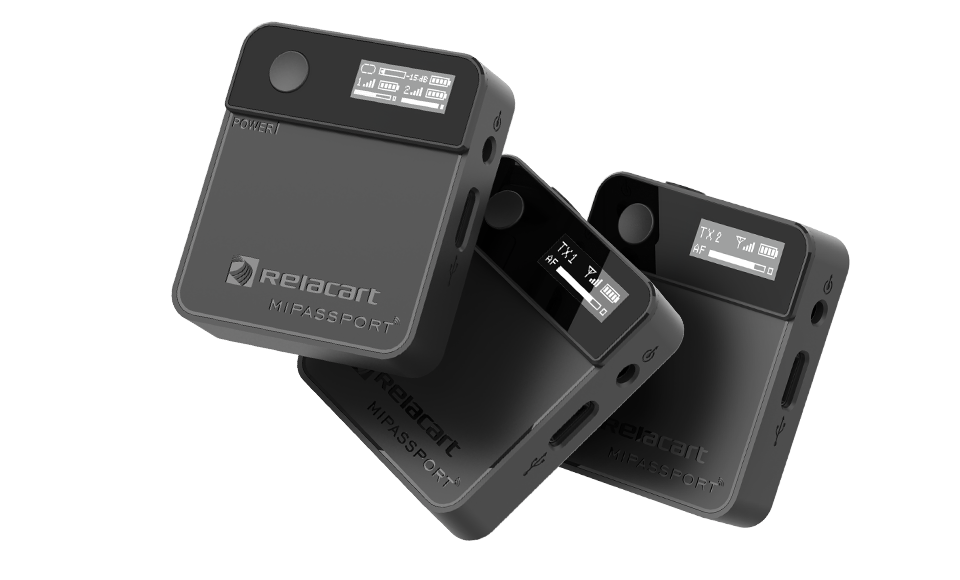

The Mi2 wireless microphone system uses ISM's global unlimited 2.4G frequency band for transmission. The receiver and transmitter are automatically paired successfully within 2 seconds after power-on, and the effective use distance can reach 50 meters (open and open places). Both receiver and transmitter use OLED displays to display current product information. The output volume is adjustable. The 3.5mm TRS output is used to connect digital/SLR cameras, video cameras, video recorders, tablet computers, mobile phones and other devices to assist in picking up high-fidelity audio.

Details

Connection diagram

Polar Pattern

Specifications

Package Contents

Frequency Response

Transmission frequency band: 2400MHz - 2408.35MHz

Modulation: Frequency Hopping/Digital FSK (GFSK)

Transmit power: 10dBm

Receive sensitivity: -86dBm

Antenna mode: built-in F-type antenna

Microphone pickup method: omnidirectional (built-in microphone and external lavalier)

Audio frequency response: 100Hz ~ 16KHz ±3dB

Dynamic range: 93dB (electrical performance)

Signal-to-noise ratio: 93dB (A-weighted)

Maximum input pressure: 97dB SPL

Display mode: OLED display, showing battery level, current RF, AF status

Power supply requirements: built-in lithium battery, charged through standard USB 5V of TYPE-C interface

Battery life: > 7 hours

Input and output interface: 3.5mm TRS

Working temperature: -5℃～+50℃

Dimensions: 50mm*44.5mm*15mm

Performance Introduction

Built-in High-end Microphone

Built-in electret microphone, also supports external lavalier microphone, the output volume is adjustable.

2.4G Global Unlimited Frequency Band Transmission

Use 2.4G ISM global unlimited frequency band transmission.

Easy to Carry

Small size, easy to carry.

HD OLED Display

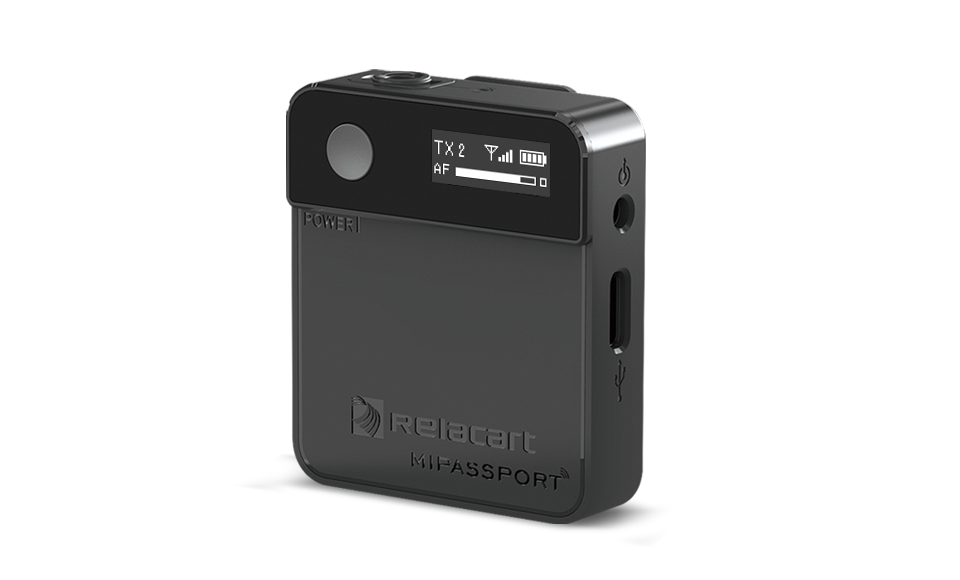

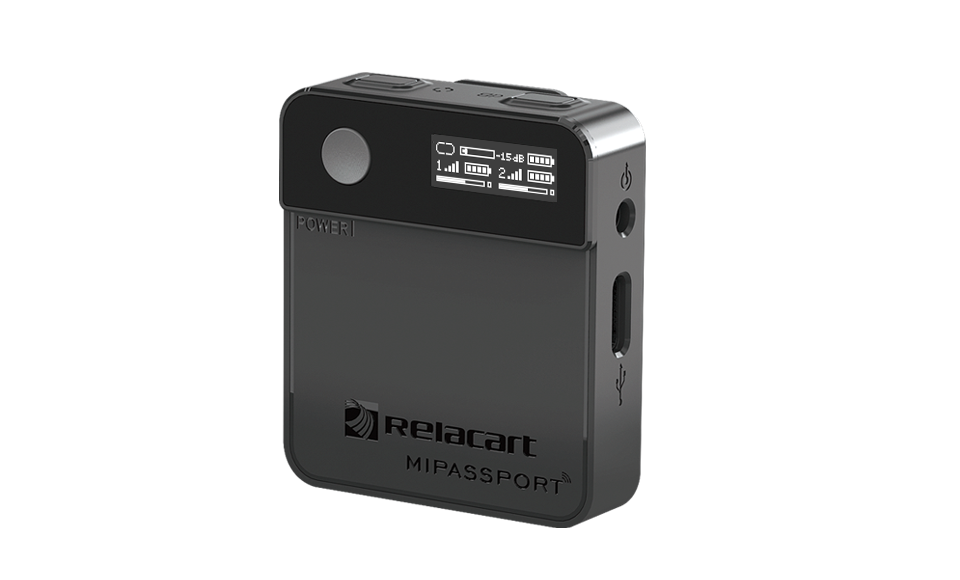

Both receiver and transmitter use high brightness OLED display.

Widely Compatible

Widely compatible with computers, DSLRs, camcorders, recorders, tablets, mobile phones.

Support 5V Fast Charging

Built-in lithium battery, use USB 5V to charge.
