Mi2.PRO

Dual Channel Wireless Microphone System

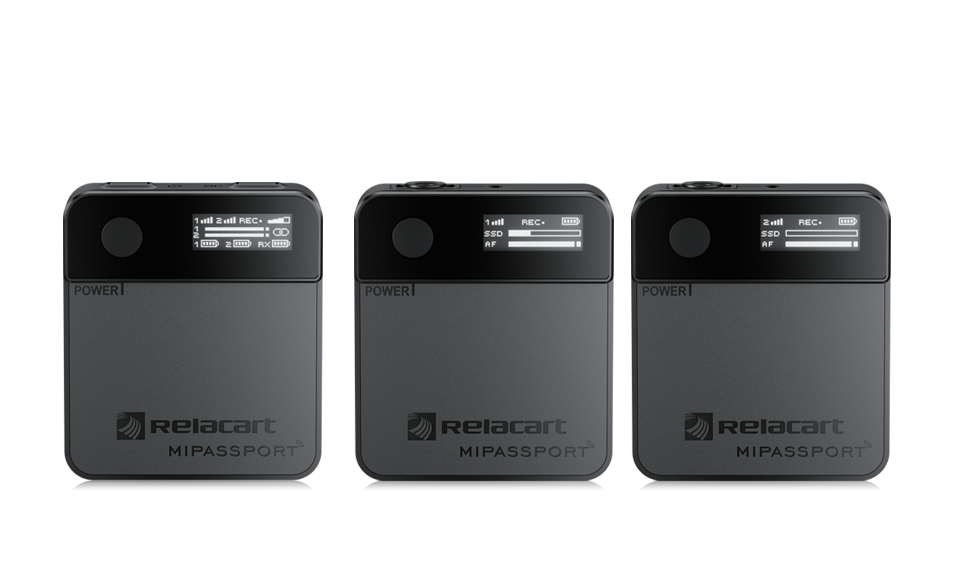

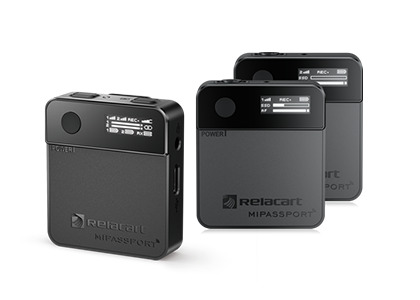

Relacart MIPASSPORT Mi2.PRO is a Lightweight,portable fully functional,casy-to-oparate.2.4GHz dual-channel wireless microphane system with onboard high-quality recording function,providing excellent developed such as DSLRs,camcorders,smartphones, tablets ar computers,It is ideal for interviews, live braadcasts,vlog shoots or business presentations.

Product Description

Relacart MIPASSPORT Mi2.PRO is a Lightweight,portable fully functional,casy-to-oparate.2.4GHz dual-channel wireless microphane system with onboard high-quality recording function,providing excellent developed such as DSLRs,camcorders,smartphones, tablets ar computers,It is ideal for interviews, live braadcasts,vlog shoots or business presentations.


Functional Features

Real-time Monitoring

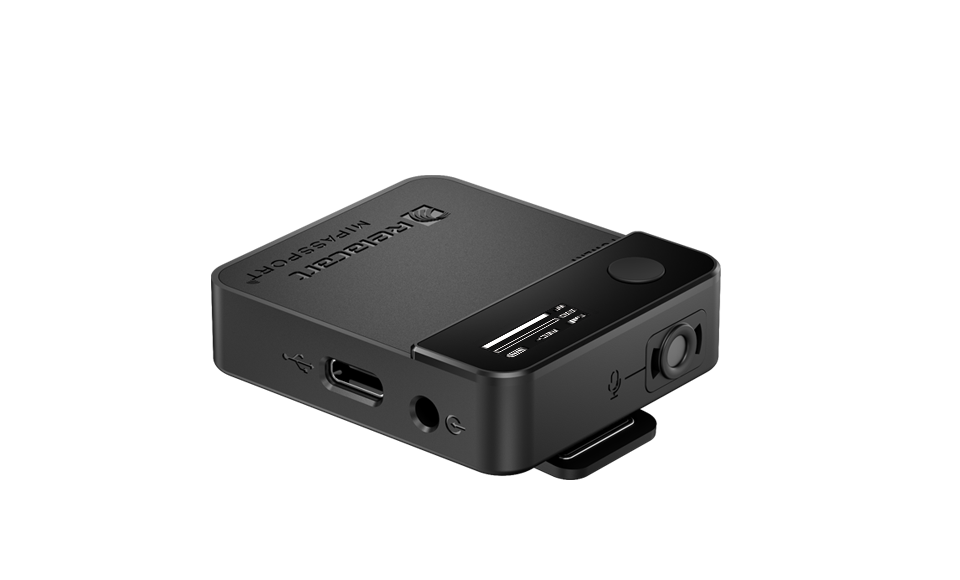

Dual channel receliver with USB audio output port and 3.5mm output port,the receiver also has a live monitoring headphone port.

Convenient Design

• Adopts a high-brightness OLED display which clearly shows theworking status. • The body is small and easy to carry • Automatic pairing at startup • Built-in lithium battery. charging with USB 5V • The 3.5mm TRS output is used to connect to dlaital/ SLR cameras,camcorders,recorders,tablets,mmobile phones and other devices to assist in picking up high fidelity Audio for interviews,micro-video recordings,or business presentations.

Flexible Expansion

Built-in electret microphone ,also supports external alvalier microphone .output volume can be adjusted.

2.4G ISM Global Unlimited Frequency Band

Adopts 2.4G ISM global unlimited frequency band transmission.

Widely Compatible

Widely compatible with digital or SLR cameras,smartphones tablets,mobile devices and more.

Save Recording Audio

Recording and listening while saving, to ensure flawless audio output.

Details

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Receiver Specifications

Transmission frequency band: 2400 MHz ~ 2483.5 MHz

Iransmission type: Frequency hopping/Digital GFSK

Recelving sensitivity: -94dBm

Antenna method: Built-in F type antenna

Display mode: OLED display, showing current status

Power requirements: built-in lithium battery. standard USB 5V charging via TYPE-C interface

Battery life: > 8 hours

Output connector: 3.5 mm TRS

Output connector: 3.5 mm onitor output

Working temperature: -5°C~+50C

Dimensions: 50 mm * 44.5 mm * 15 mm

Weight: 35 g

Transmitter Specifications

ransmission frequency band: 2400 MHz ~ 2483.5 MHz

Modulation type: Frequency hopping/Digital GFSK

ransmit power: 10dBm

Antenna method: Built-in F type antenna

Recording function: On-board SD NAND

Microphone pickup method: omnidirectional(built-in microphone and external lavalier)

Internal Storage: 32GB

Recording file format: WAV

Display mode: OLED display, showing current status

Power requirements: built-in lithium battery, standard USB 5V charging via TYPE-C interface

Battery life: >8 hours (>4 hours with recording on)

Input connector: 3.5 mm TRS

Working temperature: -5°C~+50°C

Dimensions: 50 mm * 44.5mm * 15mm

Weight: 35 g
