MC1

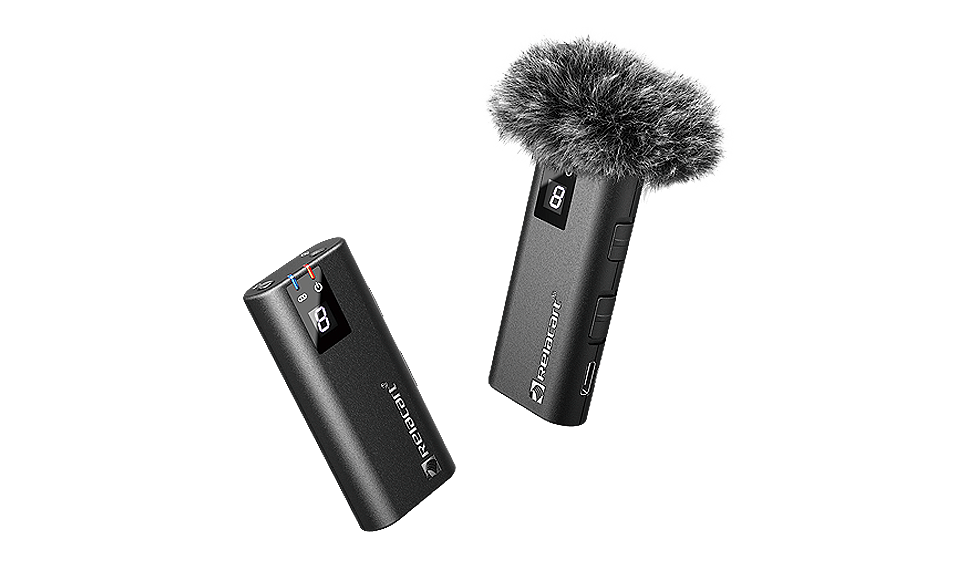

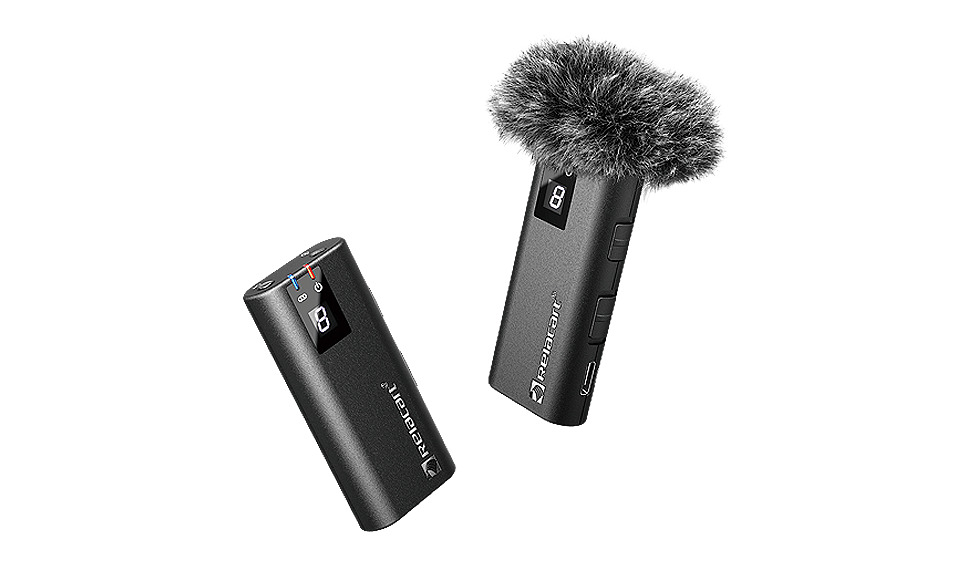

UHF Single Channel Camera Mount Wireless Microphone System

DSP digital audio companding

48KHz audio sampling rate to minimize noise in the system


External Microphone Expansion

In addition to the built-in microphone, the external microphone and line input function can also be used, and the receiver and transmitter can independently adjust the volume


Multi-channel switching

Both transmitter and receiver support one-key channel switching and display in the LED digital display


Lightweight and convenient

The net weight of the MC-1 transmitter and receiver is 31.5g each. Compact design, easy to carry


UHF audio transmission technology

It works in the UHF frequency band, avoiding wifi with serious interference, and ensuring the stability of wireless connection.


Magnetic rubber clip

The innovative design of magnetic suction plus soft glue includes hot shoe magnet specially designed for the camera, which makes the product easy to use. During the interview, it is close to the collar or objects with iron, nickel and other metals, such as mobile phones, computers, etc. The new design of magnetic suction soft glue improves the flexibility of users in applying the product.


Product Description

DSP digital audio companding

48KHz audio sampling rate to minimize noise in the system


External Microphone Expansion

In addition to the built-in microphone, the external microphone and line input function can also be used, and the receiver and transmitter can independently adjust the volume


Multi-channel switching

Both transmitter and receiver support one-key channel switching and display in the LED digital display


Lightweight and convenient

The net weight of the MC-1 transmitter and receiver is 31.5g each. Compact design, easy to carry


UHF audio transmission technology

It works in the UHF frequency band, avoiding wifi with serious interference, and ensuring the stability of wireless connection.


Magnetic rubber clip

The innovative design of magnetic suction plus soft glue includes hot shoe magnet specially designed for the camera, which makes the product easy to use. During the interview, it is close to the collar or objects with iron, nickel and other metals, such as mobile phones, computers, etc. The new design of magnetic suction soft glue improves the flexibility of users in applying the product.

Details

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

System Technical Specifications:

RF Carrier Frequency Range:470 MHz-960 MHz

Receiving Mode:Superheterodyne

Frequency Stability:0.005%

Effective working distance:≥20 M (ideal environment)

Audio Companding:DSP Digital audio companding

Audio Sample Rate:48 KHz

Audio Frequency Response:500 Hz - 15 KHz, 3dB

Dynamic Range:88dB

Total Harmonic Distortion:≤0.8%,@1KHz

Working Temperature Range:-10℃~+50℃

Receiver Technical Specifications:

Receiving bandwidth:470MHz-960MHz

Receiving mode: superheterodyne

Image suppression: 45dBm

RF sensitivity: When inputting 10dBu, S/N ≥ 45dB

SQ Adjustment: Built-in setting 10dBU,S/N ≥45dB

Frequency sync mode: manual key setting

Maximum output level : 25mV(level ajustment setting maximun )

Output level adjustment range: 3-level adjustable, attenuated adjustment,every 10dB step

Digital audio output: Support TYPE-C ,  USB audio

Power supply mode: built-in 3.7V 435mA lithium battery

Normal working current:100mA

Max . charging mode: 600mA

Battery life: ≥ 4 hours when the battery is fully charged

Dimensions: 67 * 32 * 13.5(mm)

Net weight: 31.5g

Transmitter Technical Specifications:

Carrier bandwidth:470MHz-960MHz

Oscillation mode: PLL frequency synthesis

Transmission power:13.5dBm

Carrier error:0.005%

Harmonic radiation:-32dBm

Modulation :FSK

Nominal/Peak Deviation: ±65KHz

Maximum input level: 25mV(level ajustment setting maximun )

Frequency setting: Manual button to set frequency point

Power supply mode: built-in3.7 V 435mA lithium battery

Normal working current:100mA

Max . charging mode: 600mA

Battery life: ≥ 4 hours when the battery is fully charged

Dimensions:67 * 32 * 13.5(mm)

Net weight: 31.5g

Support

Operation manual

MC1Operation-manual

Product Brochure

MC1-brochure
