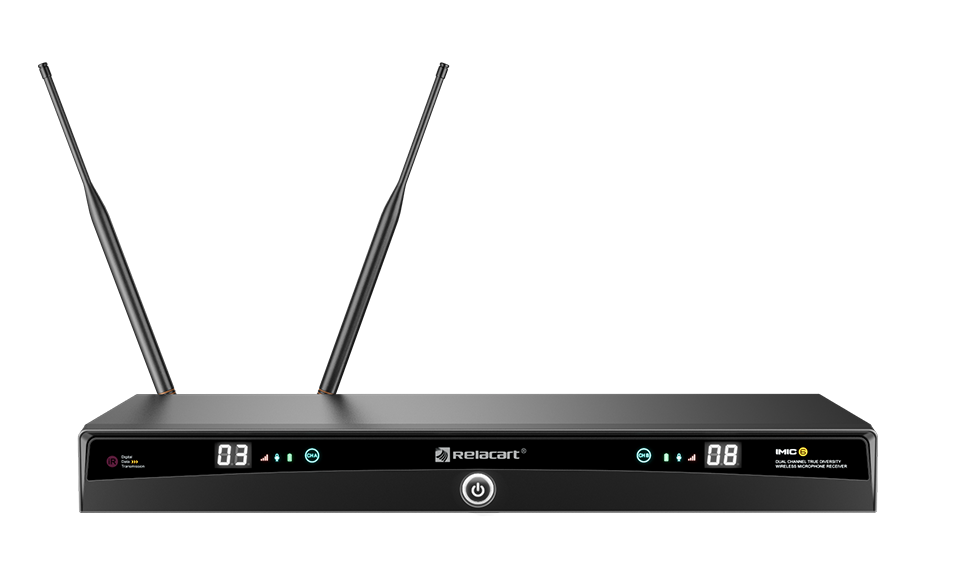

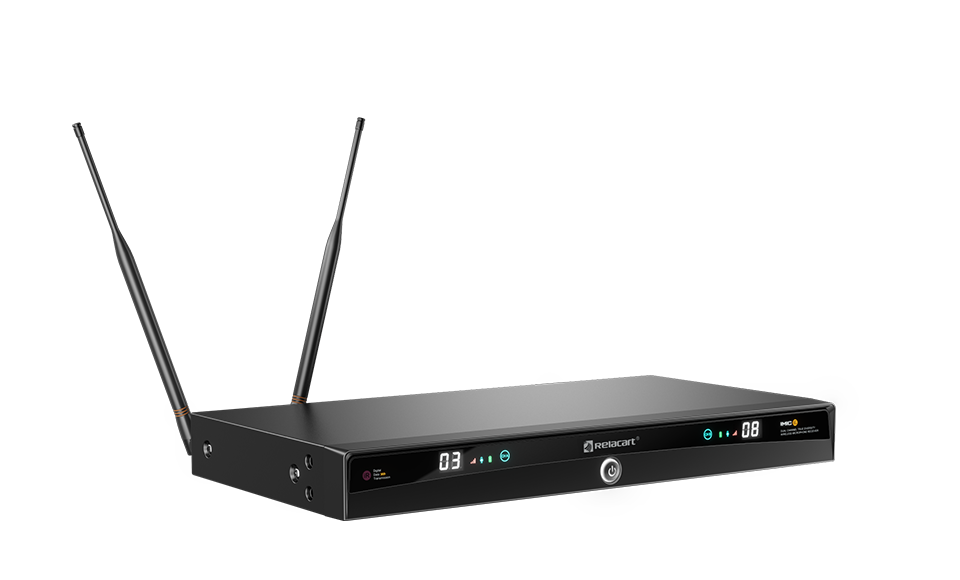

IMIC-6

Adopt 6.3mm unbalanced output, XLR balanced output, USB digital audio output, it is convenient to connect various audio processing equipment.

The BNC connector of the receiver can be connected to passive antennas and active antennas, and it can provide power to the active antennas.

The IR pairing function can be extended with the infrared extension synchronizer EC-50. When the receiver is installed in the cabinet, this synchronizer can be used to extend the IR window to a position convenient for synchronization.

Built-in high and low pass filters, parametric equalizer, feedback suppression, volume detection, audio matrix, volume control and other functions.

When the alarm port receives a high-level signal, the alarm function is activated, automatically muting all output audio until the alarm state is cleared.

For constant voltage power amplifier input, use the switch to select the input voltage level: 0V, 25V, 70V, 100V. The public address input also features a priority function. When an audio signal is input to the PA interface, other audio sources will be automatically muted. Once the public address audio signal ends, the mute will be canceled.

• Connect to a PC or teaching tablet for audio input/output via USB. The page-turning control is also transmitted to the PC or tablet through this USB connection. • Use the stereo AUX input of the RCA socket to connect LINE OUT audio equipment. • Provide power to the charging base, allowing for charging of the transmitter and page-turning laser pointer. Up to 3 charging bases can be cascaded. • Lock the transmitter and page-turning laser pointer in the charging base via remote control software.
