IMIC-5

Single channel diversity wireless receiver

Product Description Technical Specifications Components

Product Description

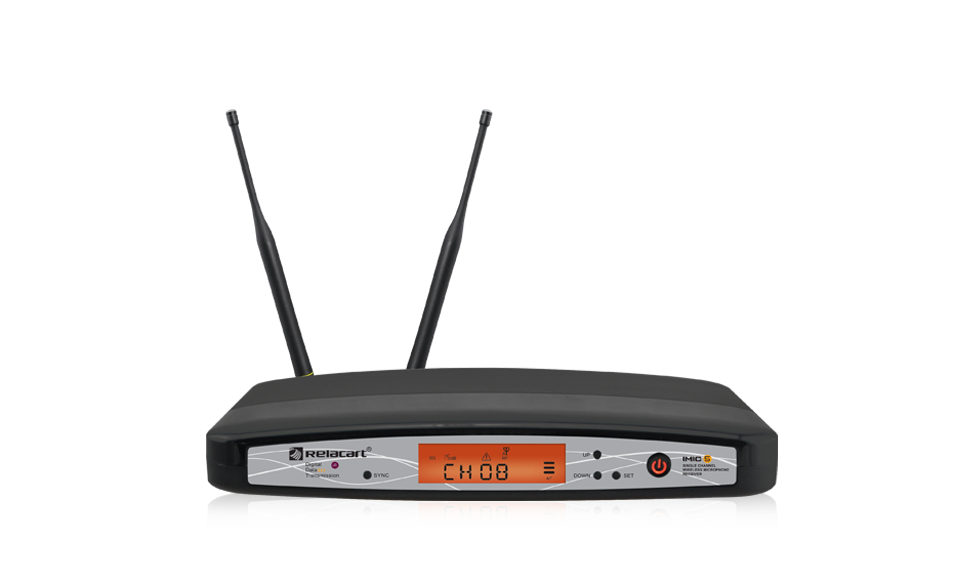

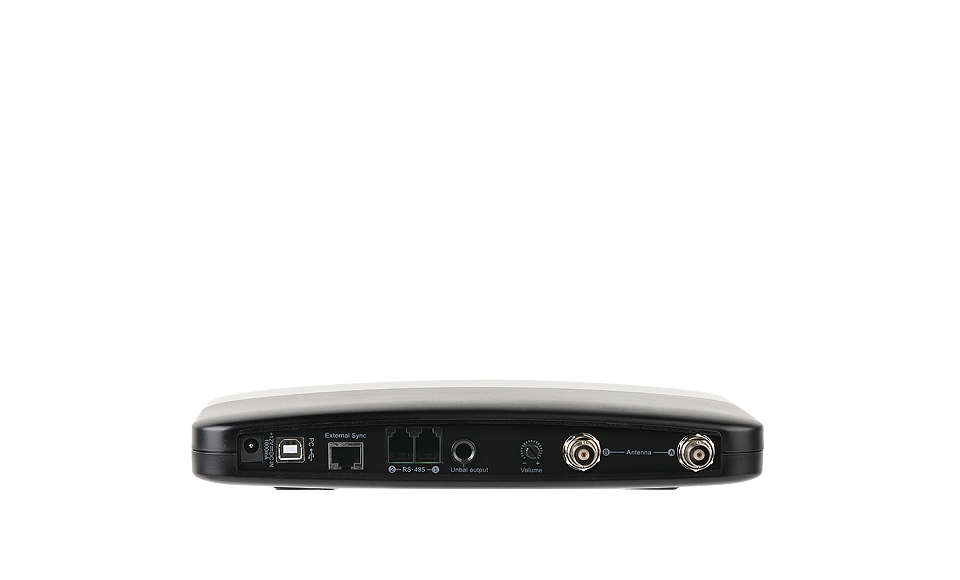

IMIC-5 is a UHF antenna diversity wireless receiver developed by Relacart independently. It can be uses with external frequency controller that can be synchronize the microphone automatically, and it can be connected to the central controller, and has page-turning and cascade function.

Technical Specifications

Receive bandwidth: 521.25MHz-936.85MHz

Receiving method: FM superheterodyne antenna diversity reception

RF sensitivity: 5dBv, S/N≥60Db at 25KHz deviation

Squelch adjustment: 5 to 35dB in 5dB steps.

Frequency synchronization method: IR Sync

Maximum output level: maximum output + 11dBV

Output level adjustment range: MUTE to + 11dBV, mechanical adjustment.

Power supply: DC12V / 1A

Normal working current: DV12V, 220mA

Dimensions: 240mm (length) x165mm (width) x35mm (height)

Net weight: 1Kg

Components

TM-5H

Transmitter
