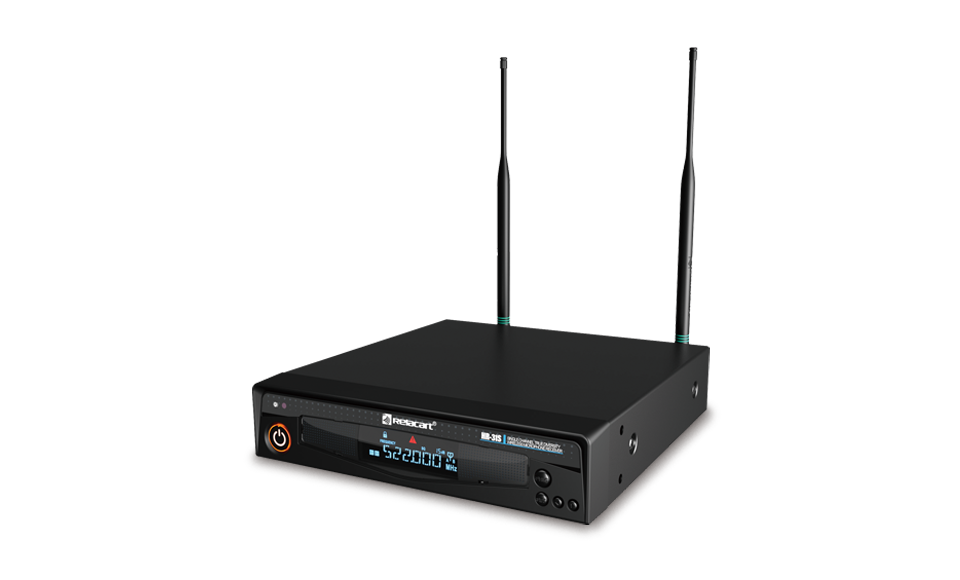

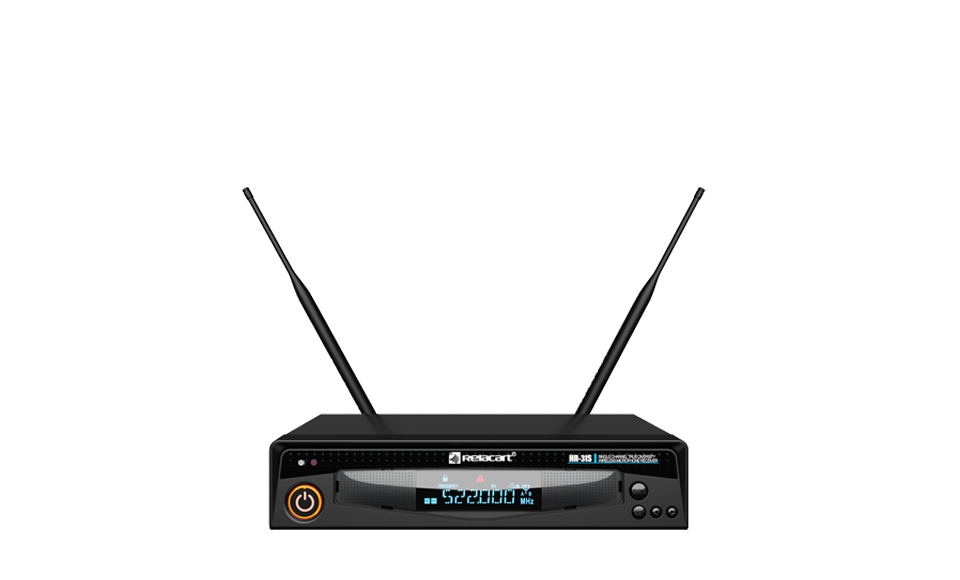

HR-31S

Single Channel Wireless Receiver
Inquire Now

HR-31S

Product Description Technical Specifications Components Accessories

Product Description

HR-31S true diversity wireless microphone system is a wide bandwidth true diversity wireless audio system that designed for the large-scale live show.Powerful function, reliable performance, can get the best effect in different kinds of complicated professional performance.

Technical Specifications

Main Frame Size: ½ EIA standard 1U

Carrier Frequency Rang: 521.25MHz-936.85MHz

Receiving Channel: Single Channel

Receiving Mode: True Diversity

Frequency Reliability: ±0.005%(-10~50℃)

Bandwidth: 32MHz

Audio output jack: XLR balanced socket and Φ6.3mm unbalanced socket

Antenna socket type: BNC

Control cable: 4P telephone line connect to the U485, U485 USB connect to computer.

Operationg Distance: 80M typical(in open space)

Oscillation: PLL synthesized

Sensitivity: 5dBμV, S/N>60dB at 25KHz deviation

Max. Deviation: ±45KHz

Power Supply: DC-12V / 1A

Dimension(mm): 206(w)×206(D)×43(H)

Weight: Approximately 1.0kg

Accessories

Wireless Management System

WMS-1

Wireless Management System

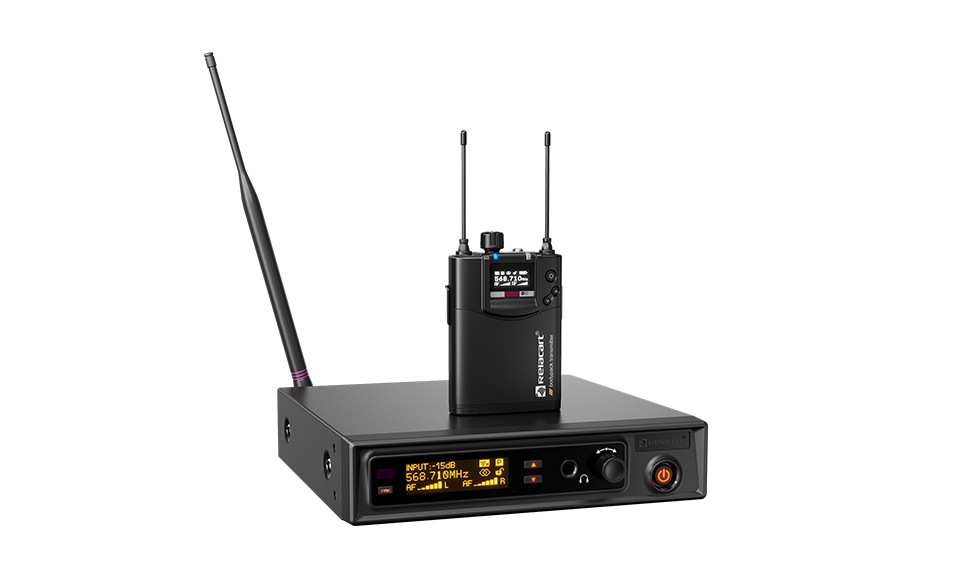

UHF Wireless In-ear Monitor system
