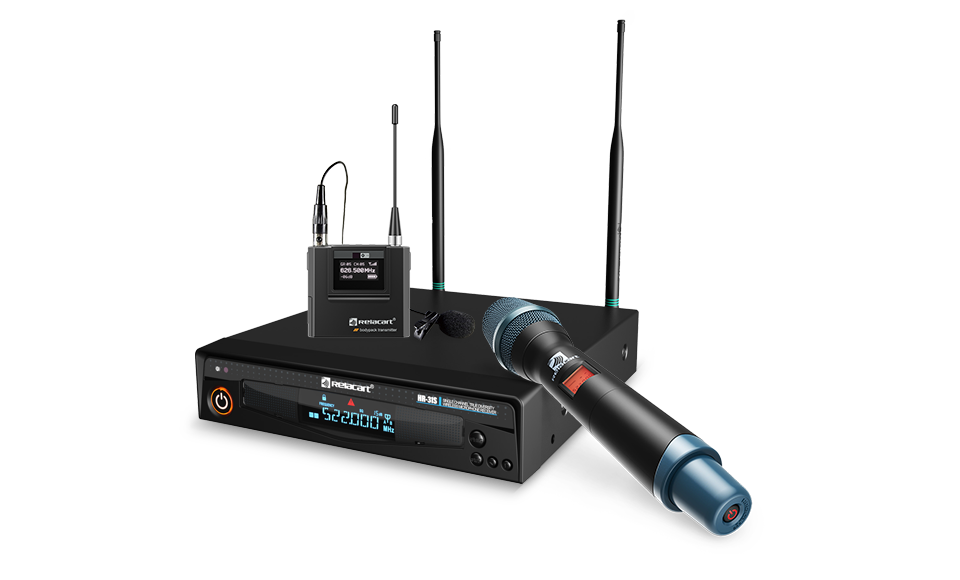

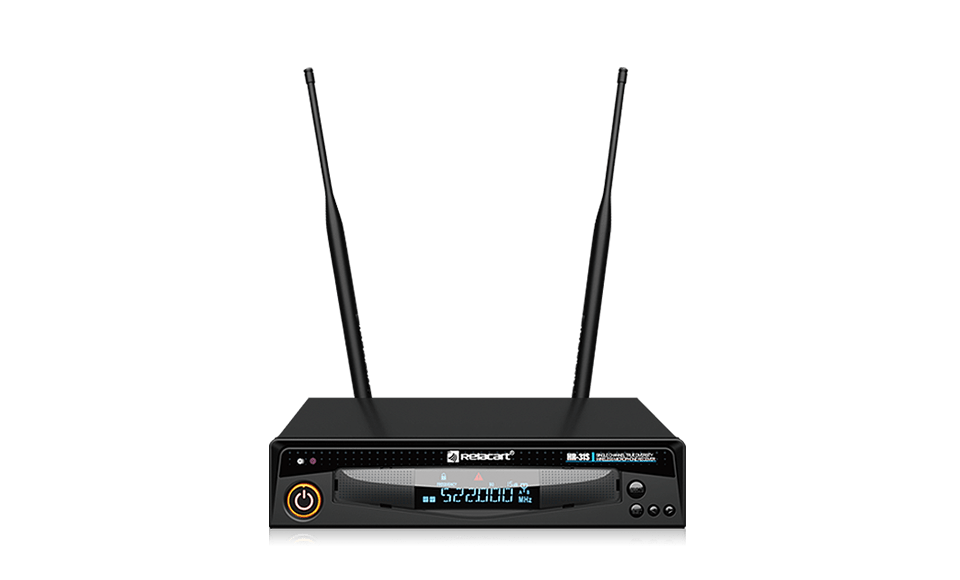

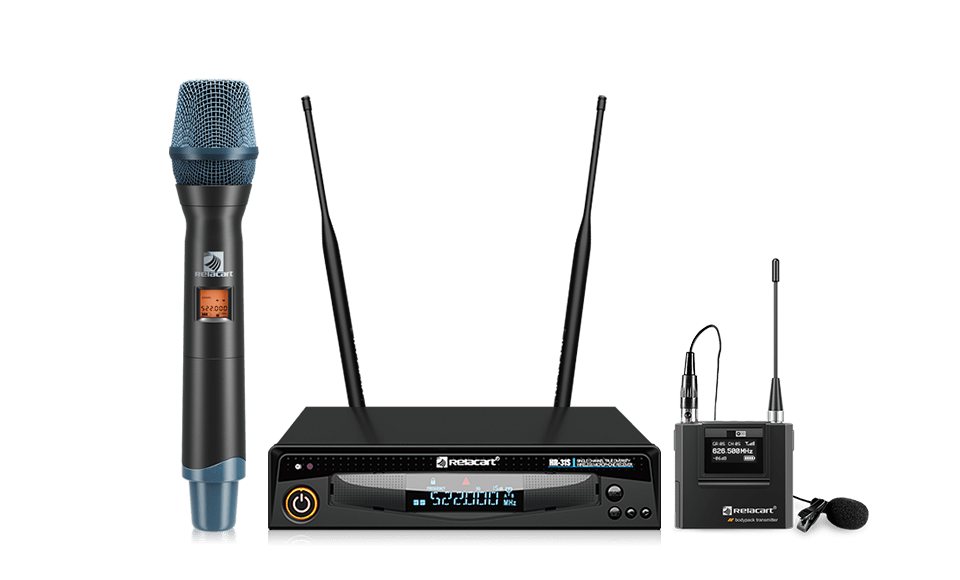

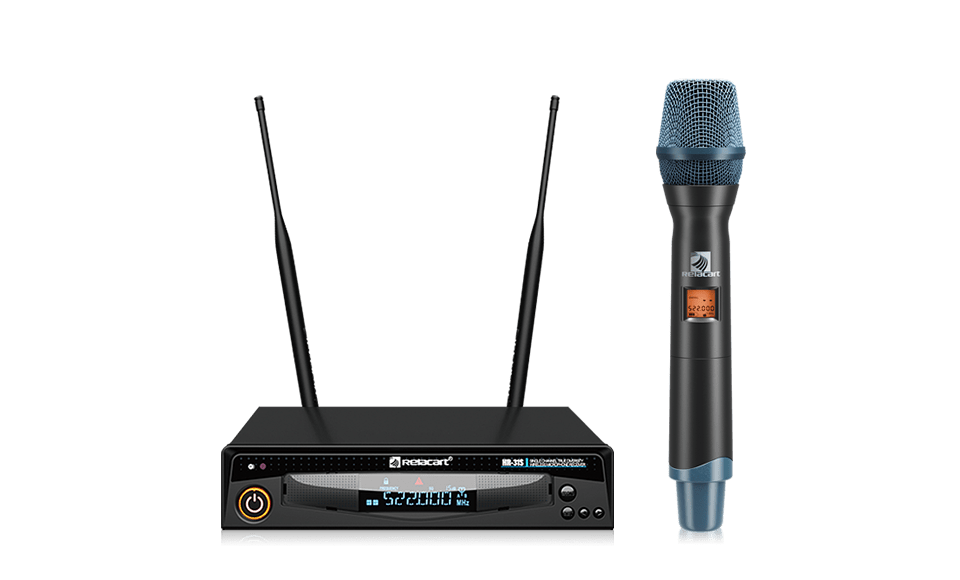

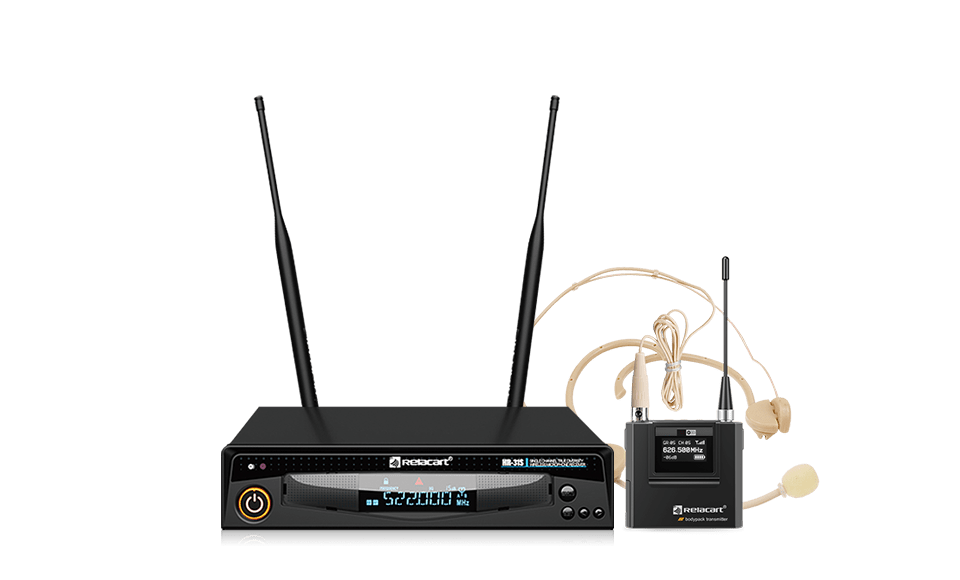

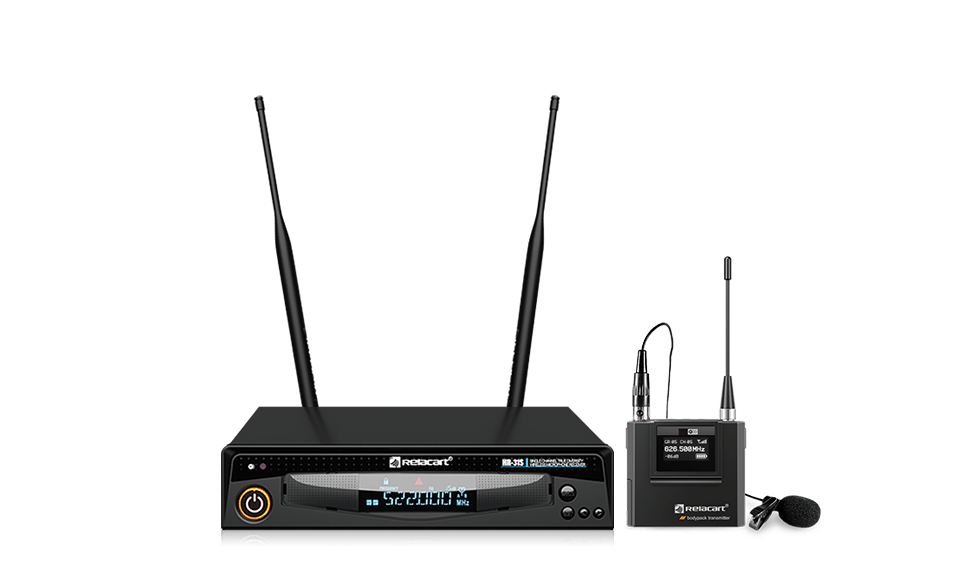

HR-31S

Single-Channel True Diversity Wireless System

Product Description

HR-31S true diversity wireless microphone system is a wide bandwidth true diversity wireless audio system that designed for the large-scale live show.Powerful function,reliable performance,can get the best effect in different kinds of complicated professional performance.

Performance Introduction

Intelligent Management

The optional "RWW" wireless transmission system monitoring and management software can use computer networking to monitor on-site, search for radio wave interference points in the actual environment of the scene and frequency blind spots on the stage, and control and modify system settings.


Energy Conservation

Precise low consumption circuit design makes the battery life twice as long as that of ordinary microphones.


IR Infrared

With [IR] infrared automatic frequency matching function, as long as the [SYNC] button is pressed, the transmitter can automatically and accurately lock the working frequency of the receiver.


Super Wide Frequency Range

32MHz broadband design, more than 1280 frequency points can be selected, true diversity reception.


AFS(Automatic Frequency Selection)

With [AFS] automatic search channel function, after pressing the [AFS] key for 3 seconds, it will automatically search and lock on an undisturbed working channel.


Anti-Interference

The stable PLL phase-locked oscillation circuit, combined with the "noise detection" mute control function, can effectively block the noise and radio frequency interference in the working environment.

Technical Specifications

·  Main Frame Size:½ EIA standard 1U


·  Carrier Frequency Range:521.25MHz-936.85MHz


·  Receiving Channel:Single Channel


·  Receiving Mode:True Diversity


·  Frequency Reliability:±0.005%(-10~50℃)


·  Bandwidth :32MHz

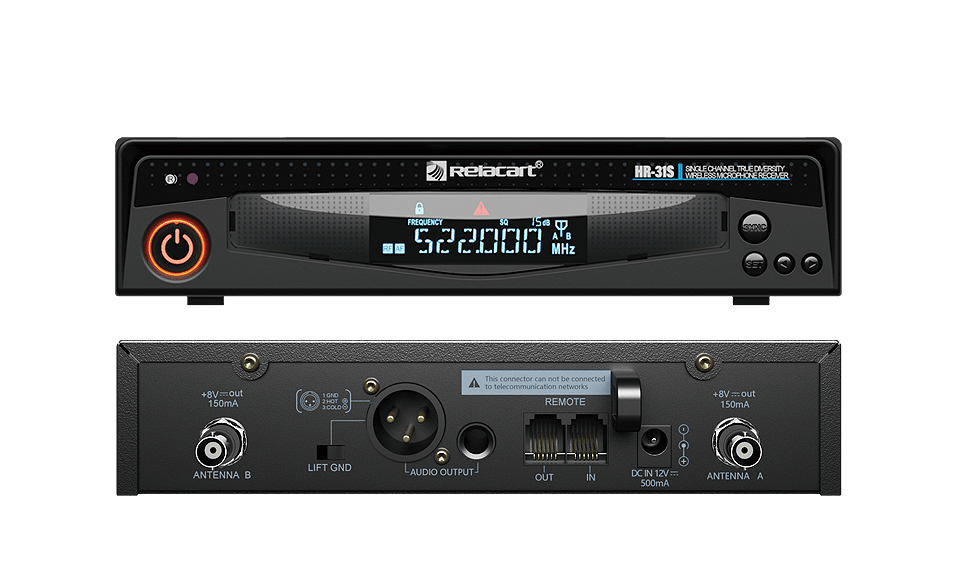

·  Audio Output Jack:XLR balanced socket and Φ6.3mm unbalanced socket


·  Antenna Socket Type:BNC


·  Control Cable:4P telephone line connect to the U485, U485 USB connect to computer.


·  Operationg Distance:80M typical(in open space)


·  Oscillation:PLL synthesized


·  Sensitivity:5dBμV,S/N>60dB at 25KHz deviation


·  Max. Deviation:±45KHz


·  Power Supply:DC-12V / 1A


·  Dimension(mm):206(w)×206(D)×43(H)


·  Weight Approximately:1.0kg

Accessories

Wireless Management System

WMS-1

Wireless Management System

UHF Wireless In-ear Monitor system

PM-320

UHF Wireless In-ear Monitor system

Wideband 4-Channel Antenna Distribution System

R-14D

Wideband 4-Channel Antenna Distribution System

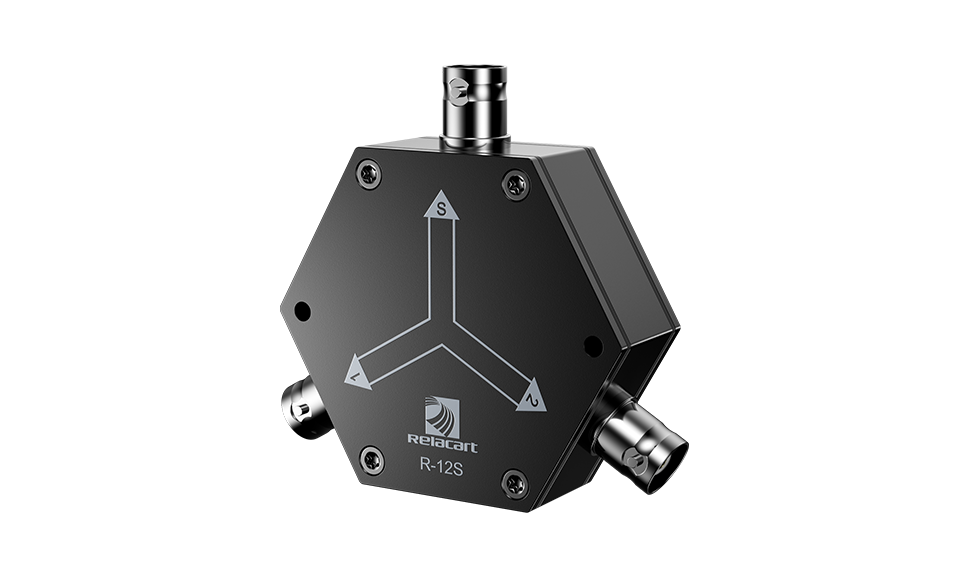

Antenna Divider

R-12S

Antenna Divider

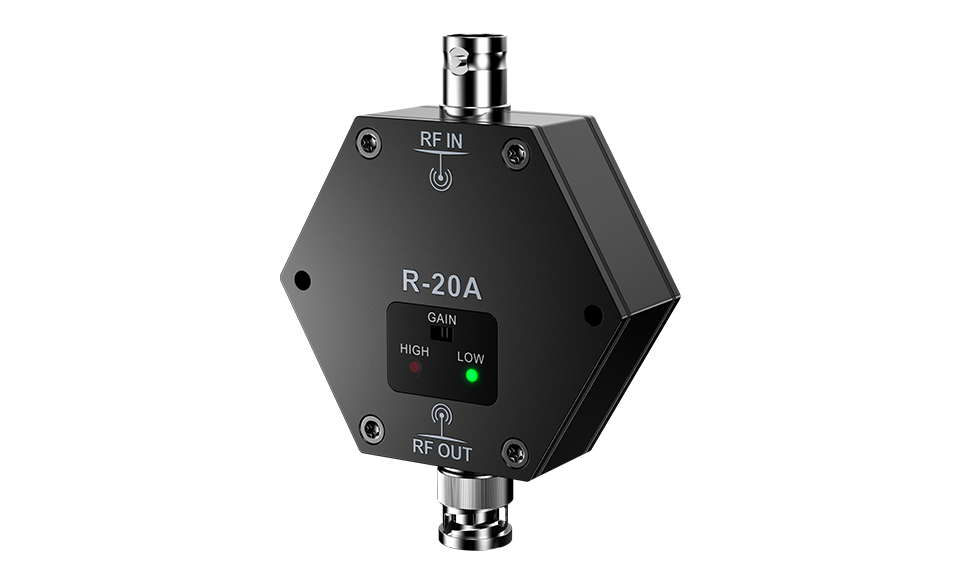

Antenna Booster

R-20A

Antenna Booster

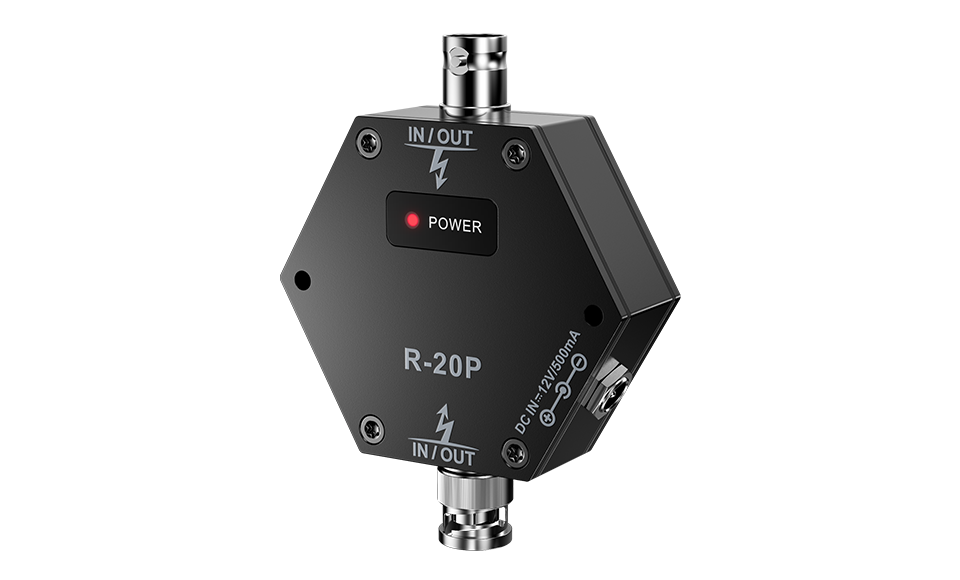

Power Supplier for Antenna
