Product Description

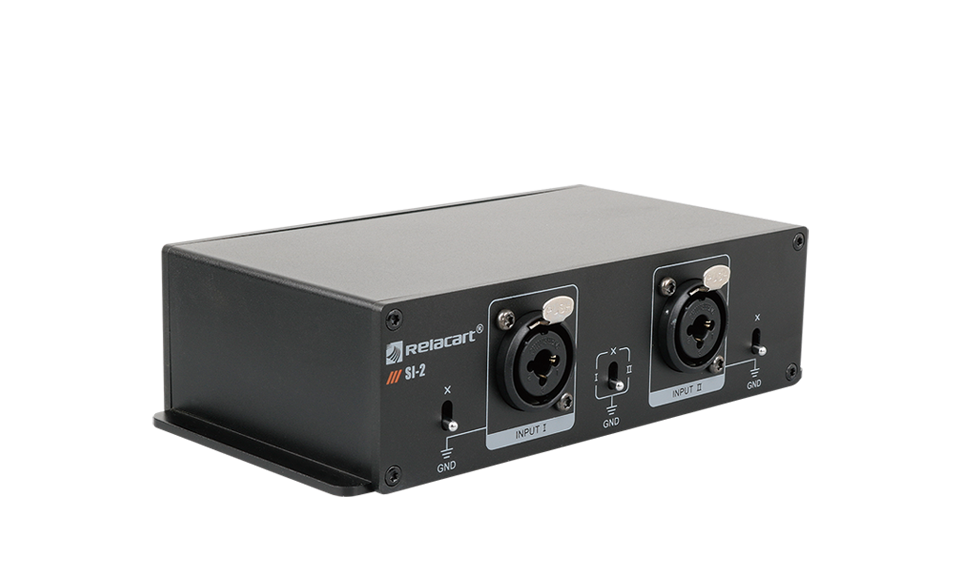

SI-2 two channel professional passive audio isolator, made of aluminum alloy, is exquisite and durable, and the chassis is high. It can be installed in the cabinet with corner code, which is simple and convenient to use.
Details
Connection diagram
Polar Pattern
Package Contents
Specifications
Frequency Response
DC Impedance: 127Ω at the input and 127Ω (1:1) at the output
AC Impedance: 600Ω at the input and 600Ω at the output (1:1)
Frequency Response: 20Hz-20KHz
Dynamic Range: >110dB@1KHz
Distortion: <0.03% @1KHz at +4dBu
Loss Attenuation: -0.7 dB@1KHz
Maximum Input Level: +4 dBu@20Hz at 1% +13 dBu @50Hz at 1% >30 dBu@1KHz at <0.15% THD
Isolation Voltage: 0-1250V

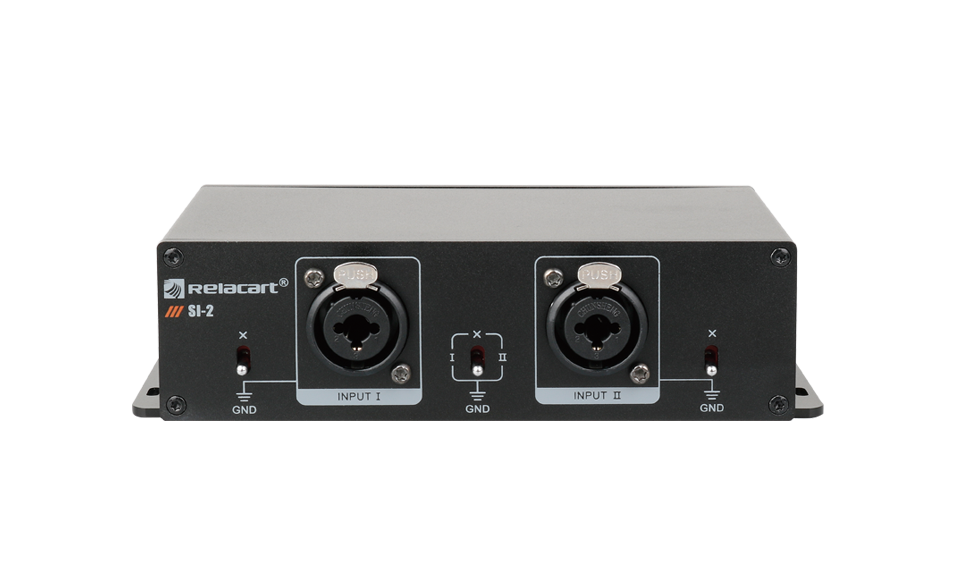

Input Interface: XLR Female X2

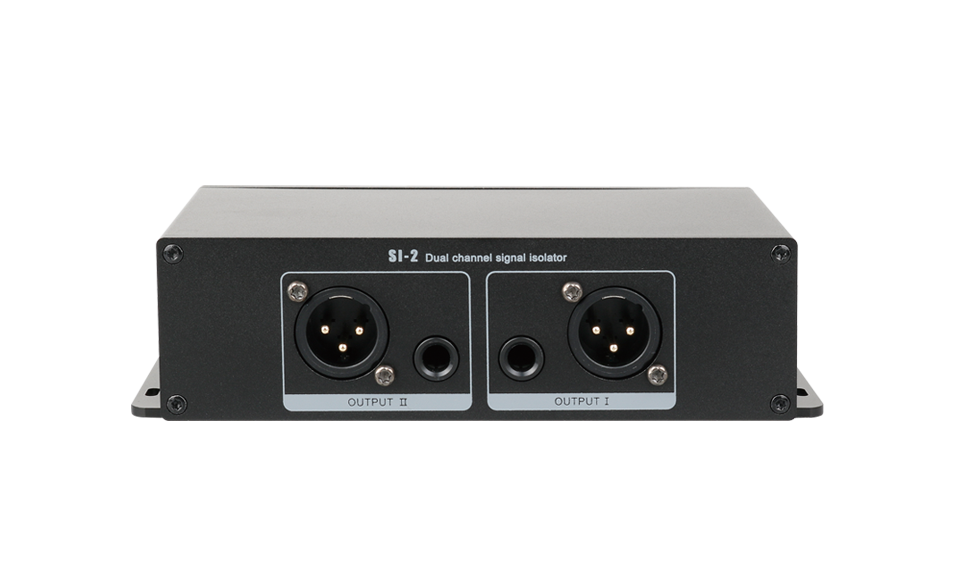

Output Interface: XLR Male X2 6.35mm jackX2
Switch: A channel grounding switch
B channel grounding switch, A+B shielded case grounding switch
Dimensions (mm): 166 (W)×43.8 (H)×83 (D)
Weight: 0.5kg
