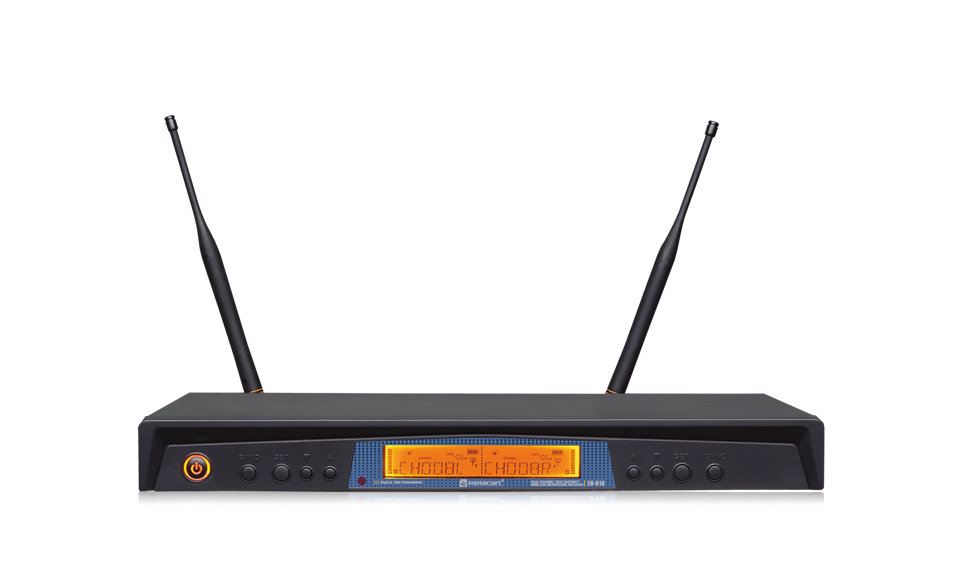

EU-610

Diversity Wireless Receiver

Product Description

EU-610 is a true diversity wireless receiver independently developed by Relacart; you can choose a handheld microphone, a body bag lavalier microphone or a headset microphone, and a desktop gooseneck conference microphone; it adopts true diversity FM superheterodyne receiver to ensure RF reception The stability of the signal and the anti-interference of the receiver itself; the operating frequency range is 522MHz~936MHz according to the radio wave control laws and regulations of various countries.

Functional Features

Chassis Standard

Details

Specifications

Package Contents

Connection diagram

Polar Pattern

Frequency Response

RF carrier frequency range: 521.25MHz-936.85MHz

Frequency stability: ±0.005%

Effective working distance (ideal environment): 100m (meters)

Audio companding: Relacart's classic audio companding circuit

Audio frequency response: 50Hz to 18KHz/±3dB

Dynamic range: >102dB

Signal-to-noise ratio (A-weighted): >102dB

Total harmonic distortion:<0.6%@1KHz

Operating temperature range: -10°C to +50°C

Reception mode: FM superheterodyne true diversity reception

RF Sensitivity: When the offset is equal to 25KHz, S/N≥60dB when input 5dBv

Squelch adjustment: 10dB to 40dB, 5dB per step

Frequency synchronization method: IR Sync

Maximum output level: maximum output +11dBV

Output level adjustment range: -6dB to +18dB, 3dB per step

Power supply: DC12V/1A

Normal working current: DV12V, 330mA

Dimensions: 410mm(W)x43mm(H)x206mm(D)

Net weight: 1.8Kg
