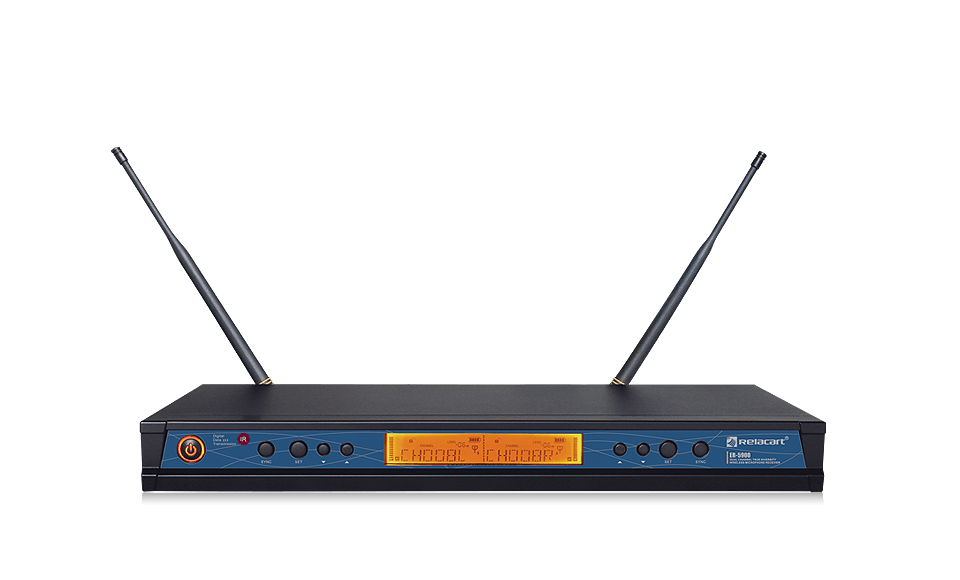

ER-5900

Dual Channel Wireless Receiver

Product Description Functional Features Details Components

Product Description

ER-5900 series is a dual-channel true diversity wireless microphone. True diversity receiving mode is more stable, with AFS function, eliminating the reception drop out problem. The frequency response is wide, the sound quality is rich and full, with strong vocal expression. cardioid directional pickup, high sensitivity, while reducing environmental noise. The tone is high fidelity. It is suitable for karaoke, bars, night clubs, KTV and other entertainment venues.

Functional Features

FM Superheterodyne Reception

The real diversity FM superheterodyne reception is adopted to ensure the stability of the received RF signal and the anti-interference of the receiver itself; The operating frequency range is 522MHz~936MHz according to the laws and regulations of radio wave control in various countries.

IR Infrared Counter-Frequency

With infrared automatic frequency matching function, press the [SYNC] button, the transmitter can automatically and lock on to an open accurately.

Channel Group Mode

Channel group mode is selected, and 50 channel groups in each frequency band provide user selection.

Electronic Volume Adjustment

The receiver comes with the electronic volume adjustment, the adjustment range is -6dB to +18dB, +3dB step.

Classic Audio Companding Circuit

Matching the Relacart's classic audio companding circuit to minimize the noise from the transmission of radio waves, and to ensure the maximum pickup effect of the product in use

Automatic Frequency Selection

With [AFS] (Auto Frequency Selection) function, enter the setup menu and select AFS function, the receiver will auto-scan and lock on to an open interference-free frequency.

Details

Specifications
