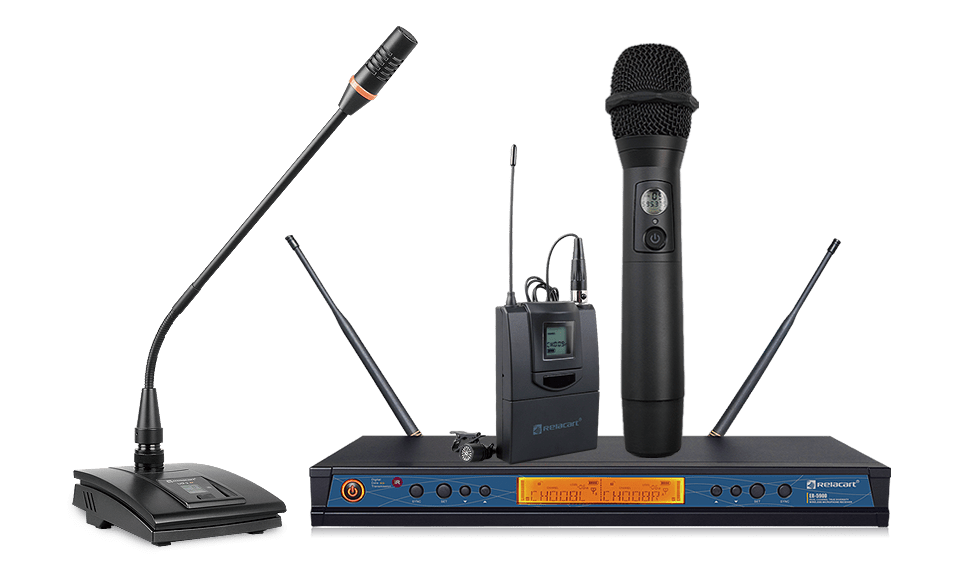

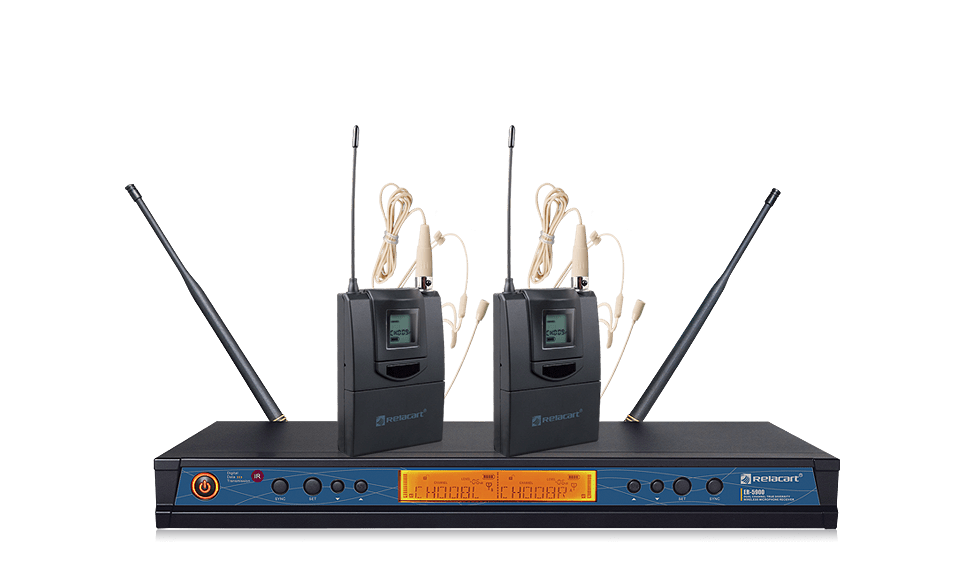

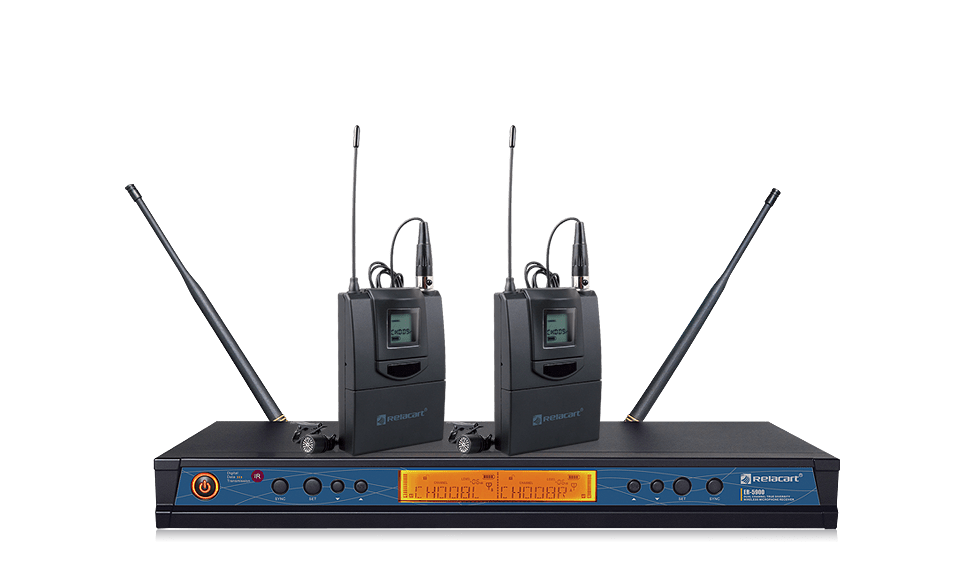

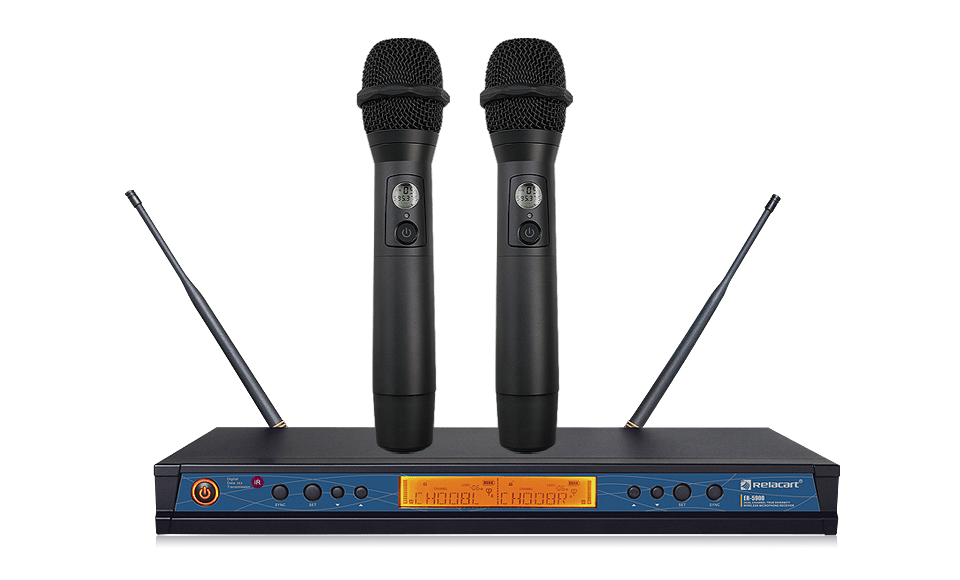

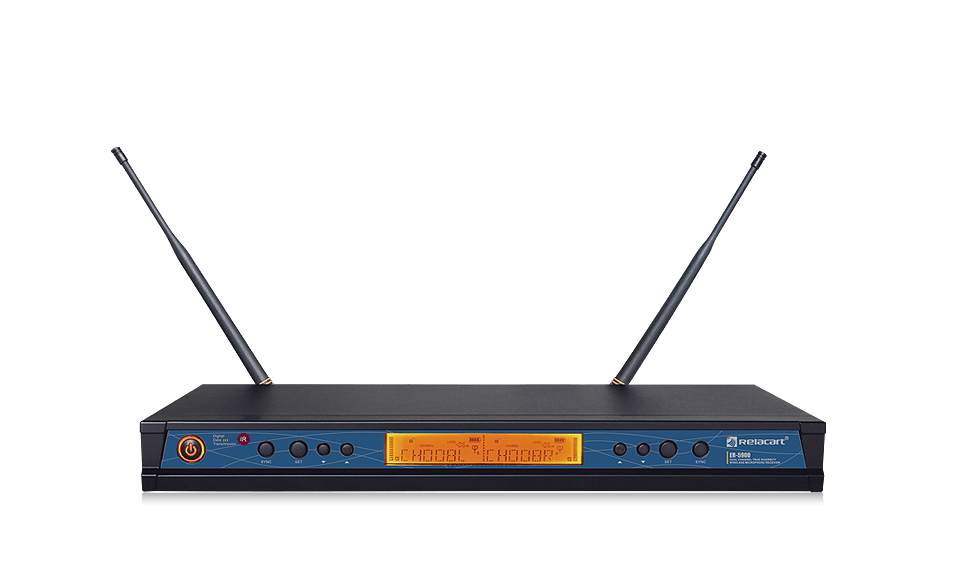

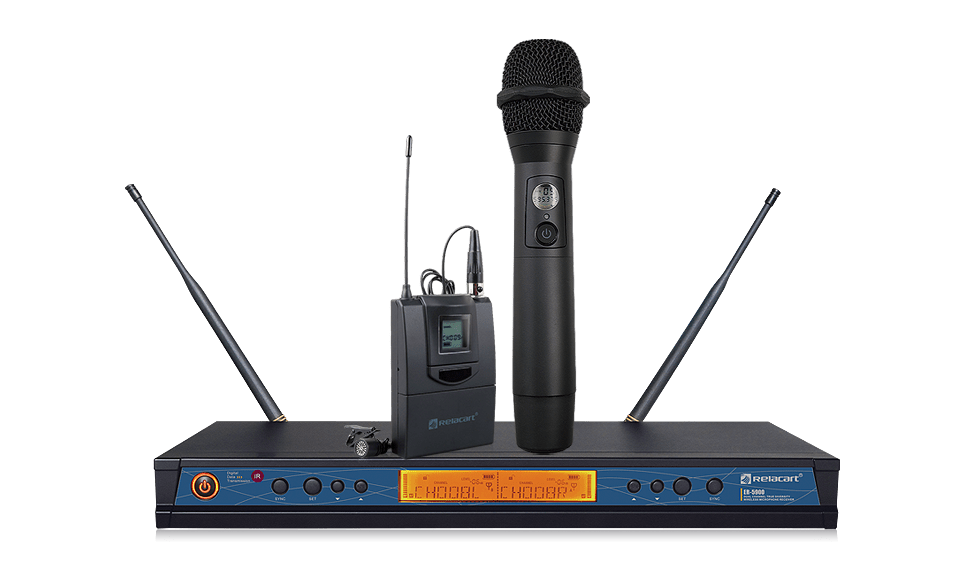

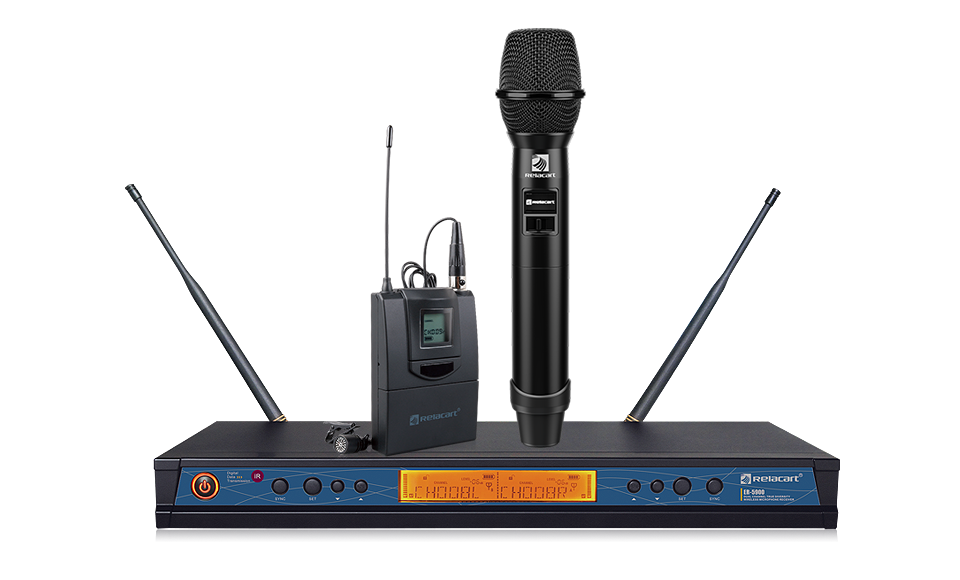

ER-5900

Dual Channel Wireless Microphone System

ER-5900 series is a dual-channel true diversity wireless microphone. True diversity receiving mode is more stable, with AFS function, eliminating the reception drop out problem. The frequency response is wide, the sound quality is rich and full, with strong vocal expression. cardioid  directional pickup, high sensitivity, while reducing environmental noise. The tone is high fidelity. It is suitable for karaoke, bars, night clubs,  KTV and other entertainment venues.

Product Description

ER-5900 series is a dual-channel true diversity wireless microphone. True diversity receiving mode is more stable, with AFS function, eliminating the reception drop out problem. The frequency response is wide, the sound quality is rich and full, with strong vocal expression. cardioid  directional pickup, high sensitivity, while reducing environmental noise. The tone is high fidelity. It is suitable for karaoke, bars, night clubs,  KTV and other entertainment venues.

Functional Features

FM Superheterodyne Reception

The real diversity FM superheterodyne reception is adopted to ensure the stability of the received RF signal and the anti-interference of the receiver itself; The operating frequency range is 522MHz~936MHz according to the laws and regulations of radio wave control in various countries.

IR Infrared Counter-Frequency

With infrared automatic frequency matching function, press the [SYNC] button, the transmitter can automatically and lock on to an open accurately.

Channel Group Mode

Channel group mode is selected, and 50 channel groups in each frequency band provide user selection.

Electronic Volume Adjustment

The receiver comes with the electronic volume adjustment, the adjustment range is -6dB to +18dB, +3dB step.

Classic Audio Companding Circuit

Matching the Relacart's classic audio companding circuit to minimize the noise from the transmission of radio waves, and to ensure the maximum pickup effect of the product in use

Automatic Frequency Selection

With [AFS] (Auto Frequency Selection) function, enter the setup menu and select AFS function, the receiver will auto-scan and lock on to an open interference-free frequency.

Details

Connection Diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Tuning Bandwidth:521.25MHz-936.85MHz


Receiving Mode:FM Superheterodyne true diversity reception


RF Sensitivity:5dBμV, S/N>60dB at 25 deviation


Squelch:10dB to 40dB, 5dB step


Frequency Sync:IR Sync


Maximum output Level Maximum output + 11dBV


Adjustment range of audio output level:-6dB to +18dB, 3dB step


Power Requirements:DC12V/1A


current consumption:DV12V, 330mA


Overall Dimensions(mm):410(W)x43(H)x206(D)


Net Weight:1.8Kg

Accessories

Lavalier Microphone LM-C480

LM-C480

Lavalier Microphone LM-C480

Lavalier Microphone LM-C550

LM-C550

Lavalier Microphone LM-C550

Lavalier Microphone

LM-C460

Lavalier Microphone

Unidirectional Headworn Microphones HM-500B

HM-500B

Unidirectional Headworn Microphones HM-500B

Omnidirectional Headworn Microphones

HM-600S

Omnidirectional Headworn Microphones

Support

Product Brochure

ER-5900-brochure
