ER-5700

Dual Channel Wireless Microphone System

Product Description

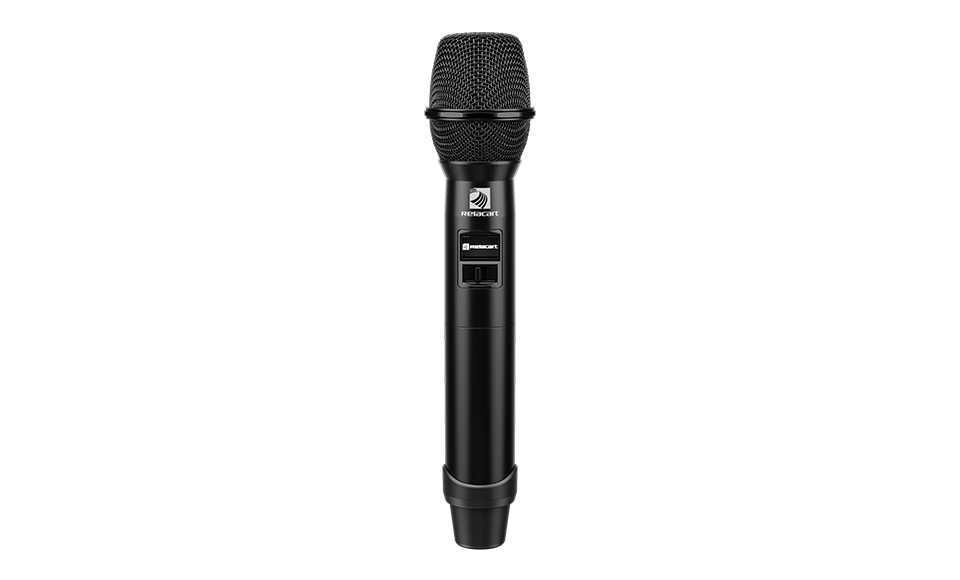

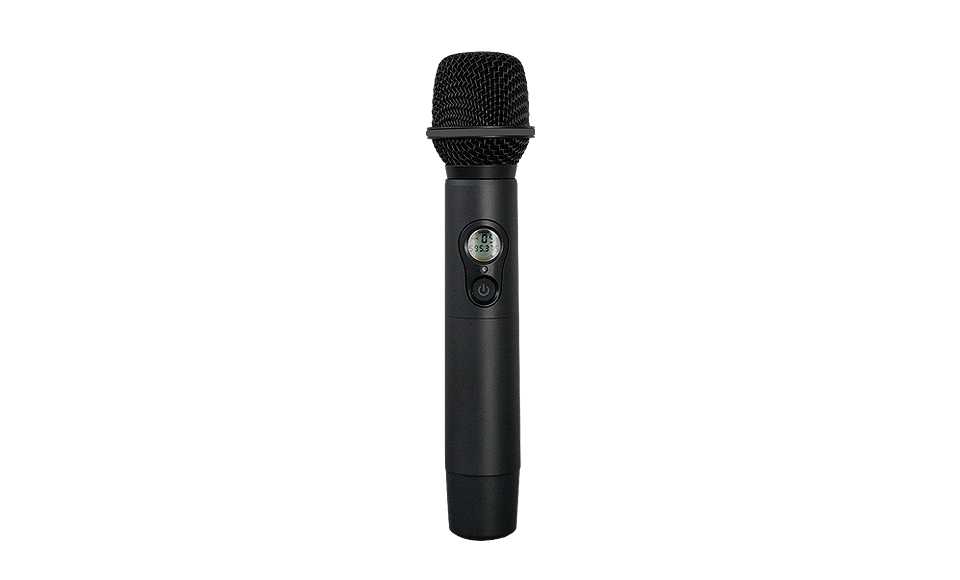

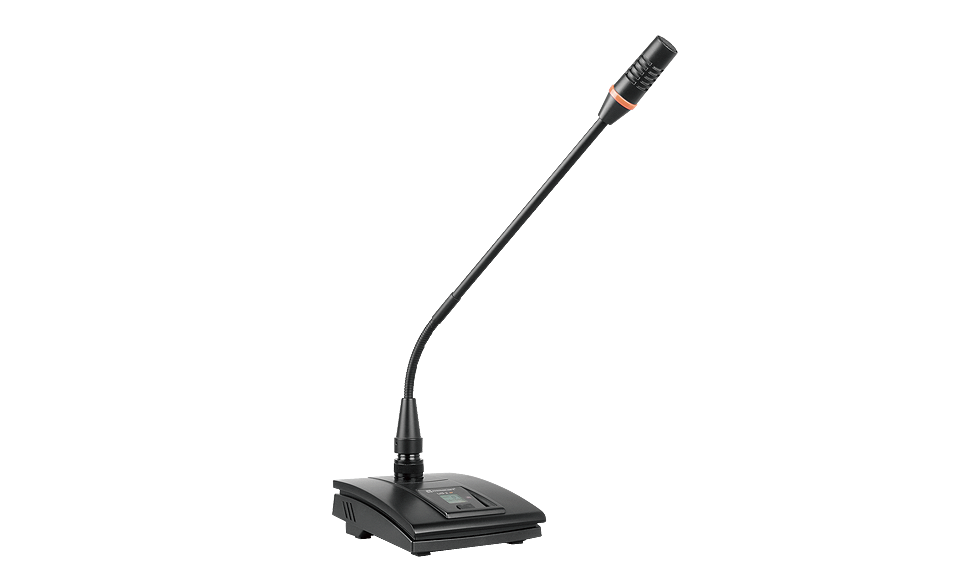

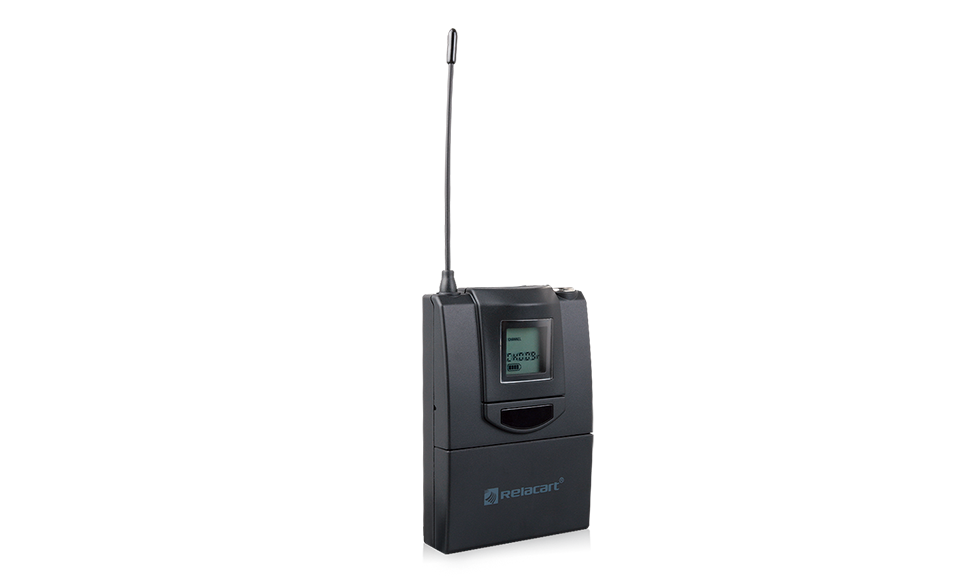

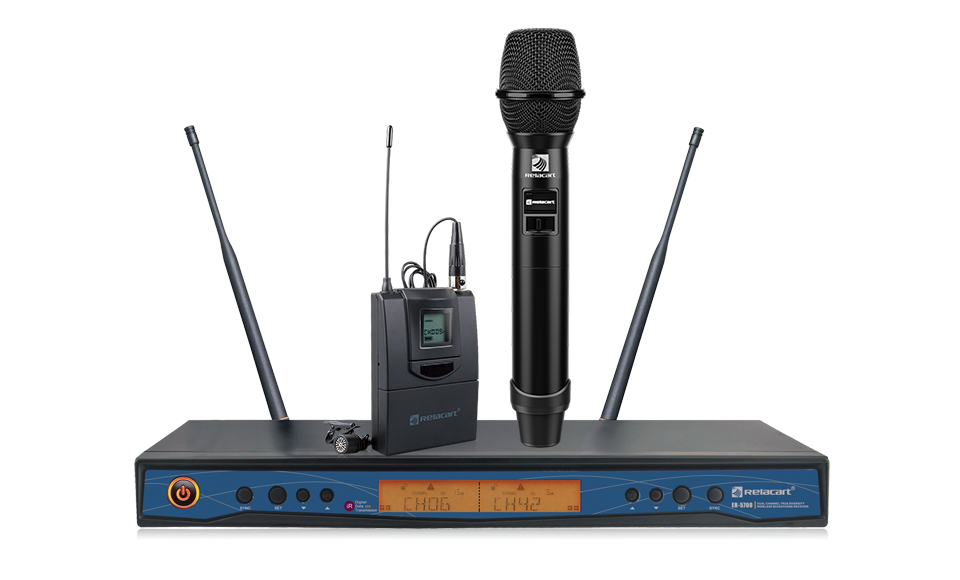

ER-5700 is a true diversity wireless receiver independently developed by Relacart; it can be optionally equipped with hand-held microphones, body-pack lavalier microphones or head-mounted microphones, and desktop gooseneck conference microphones;

The true diversity FM superheterodyne reception is adopted to ensure the stability of the received RF signal and the anti-interference of the receiver itself; the operating frequency range is 522MHz~936MHz according to the radio wave control laws and regulations of various countries.

Functional Features

IR Infrared Counter-Frequency

With [IR] infrared automatic frequency matching function, press the [SYNC] button, the transmitter can automatically and lock on to an open accurately.

True Diversity FM Super-Heterodyne Reception

Adopt true diversity FM super-heterodyne reception to ensure the stability of the received RF signal and the anti-interference of the receiver itself.

Electronic Volume Adjustment

The receiver comes with the electronic volume adjustment, the adjustment range is -6dB to +18dB, +3dB step.

LCD Display

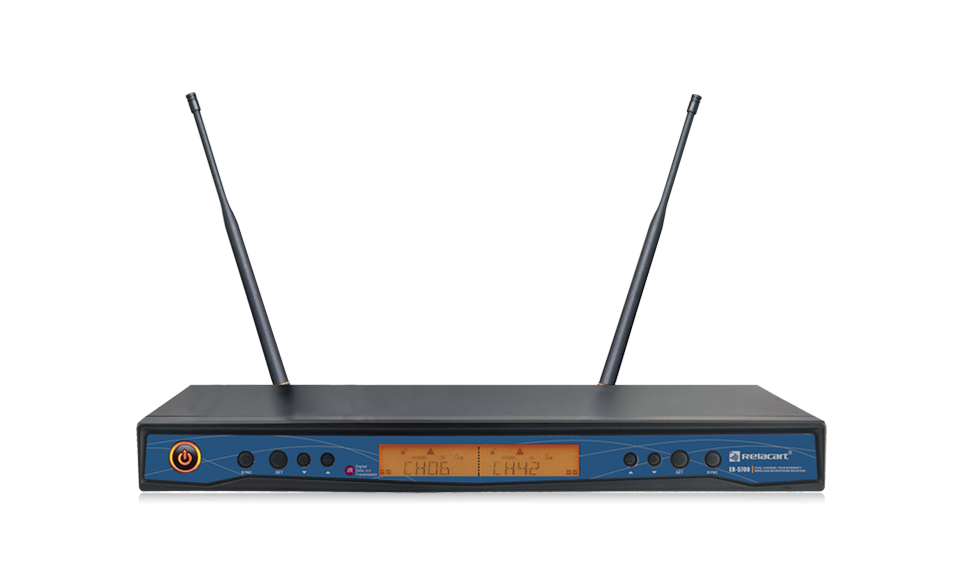

The receiver is equipped with a elegant large LCD display and clearly display the receiving channel, RF and AF signal strength.

Classic Audio Companding Circuit

Matching the Relacart's classic audio companding circuit to minimize the noise from the transmission of radio waves, and to ensure the maximum pickup effect of the product in use.

Automatic Frequency Selection

AFS Automatic frequency selection. Press the [AFS] button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.

Details

Specifications

Main Frame Size:  EIA Standard Rack 1U

Carrier frequency band: 521.25MHz-936.85MHz

Receiving Mode:FM Superheterodyne true diversity reception

RF Sensitivity:5dBμV, S/N>60dB at 25 deviation

Squelch:10dB to 40dB, 5dB step

Frequency Sync:IR Sync

Maximum output Level:Maximum output + 11dBV

Adjustment range of audio output level:-6dB to +18dB, 3dB step

Power Requirements:DC12V/1A

Current consumption:DV12V, 330mA

Overall Dimensions(mm):410(W)×206(D)×43(H)

Net Weight:Approximately1.8Kg



Accessories

Lavalier Microphone

LM-C480

Lavalier Microphone

Lavalier Microphone

LM-C550

Lavalier Microphone

Lavalier Microphone

LM-C460

Lavalier Microphone

Unidirectional Headworn Microphones HM-500B

HM-500B

Unidirectional Headworn Microphones HM-500B

Omnidirectional Headworn Microphones

HM-600S

Omnidirectional Headworn Microphones

Support

Operation manual

ER-5700datasheet

Product Brochure

ER-5700-brochure
