Home > Products-zong > Products > Video Tracking System > DMC Series > Digital Automatic Mixer Controller

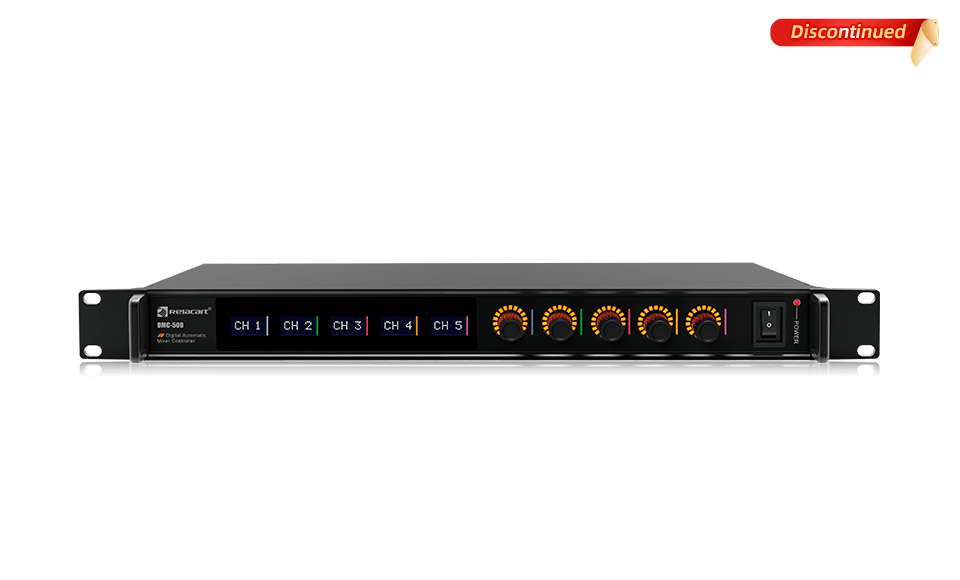

DMC-500

Digital Automatic Mixer Controller

Product Description Performance Introduction Technical Specifications FAQ

Product Description

Can be set to any channel of the mixer to adjust the volume of the set channel. You can connect multiple controllers hand in hand to control the volume of multiple channels. In order to facilitate the equipment debugging personnel on-site equipment debugging.

Performance Introduction

Chassis Standard

The international EIA standard 1U chassis is adopted, which can isolate some electromagnetic interference and most conventional cabinets.

Intelligent Management

The host adopts RS-232 connection mode, and can connect special software to realize the connection and control of multiple DAM series and Confer X mixers, so as to meet the customer's requirements for multi-channel volume control and adjustment.

Practical Function

5 channel settings · Control the input and output channel volume of the mixer · OLED display screen displays the channel name and volume of the mixer · Video tracking

Flexible Expansion

The RS-232 input interface is connected to the RS-232 interface of the mixer· RS-232 output interface When multiple DMC-500 handshakes are connected, the RS-232 output of the first set is connected to the RS-232 input interface of the second set, and so on.

Technical Specifications

Power supply：100-240V AC 50-60Hz 46W

Communication protocol：RS-232

Communication interface：3

Display：OLED

Number of channels：5

Control device ：encoder

Chassis sizeEIA standard 1U

Dimensions (mm)：410(W) x43(H) x 206(D)

Weight：Approx. 2.2 Kg

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

DMC-500Operationmanual

Product Brochure

DMC-500-brochure
