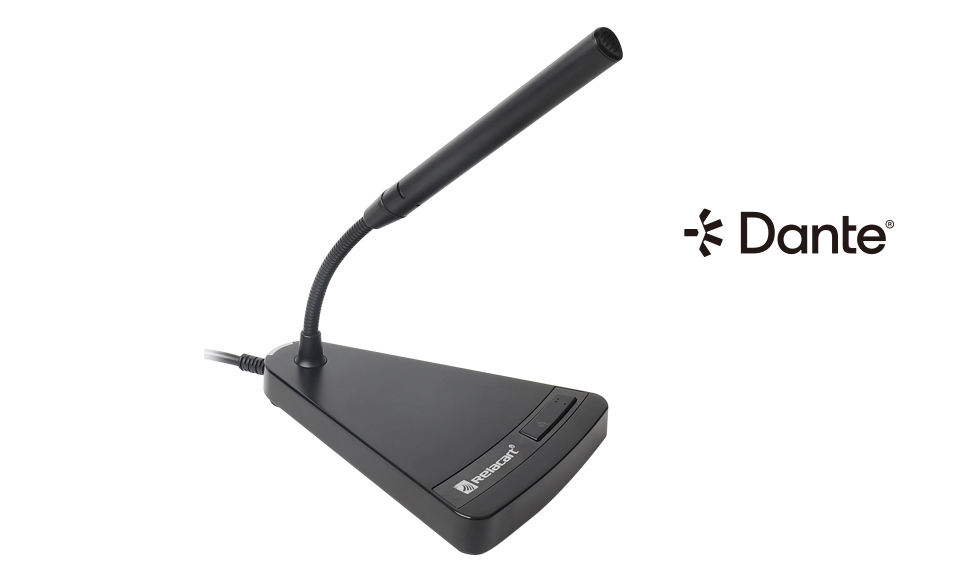

TDN3

Desk Microphone with Dante

TDN3 is a wide-bandwidth condenser super-directional DANTE microphone with high-quality pickup performance. It is designed for enhanced pickup, professional recording, television broadcasting, conferences and other demanding pickup applications.

Product Description

TDN3 is a wide-bandwidth condenser super-directional DANTE microphone with high-quality pickup performance. It is designed for enhanced pickup, professional recording, television broadcasting, conferences and other demanding pickup applications.

Functional Features

Dante audio transmission protocol

Equipped with a Dante interface, it can communicate and transmit audio with any device equipped with Dante.

Triangular tube gooseneck microphone

The microphone adopts a small triangular shape gooseneck design, which has a simple and elegant appearance, and can easily and flexibly adjust the pickup capsule to the required position.

Zinc alloy conference base

The conference base is made of strong and durable zinc alloy, which is artistic and sturdy. Equipped with mute button and working indicator light, it is easy to grasp the status of the equipment.

Light - touch switch troubleshooting

It is equipped with a unique light - touch switch troubleshooting function. After pressing the button, the LED will flash and the location of the faulty microphone can be quickly found, which greatly reduces the difficulty of subsequent maintenance work.

TDM digital control software

Supports TDM digital control software to allow the microphone to visualize the IP address and customize the microphone's treble and bass, frequency, light color and volume. The above settings can be used to directly copy the preset project parameters to the current microphone through the software when using multiple microphones.

RJ45 standard network cable interface

Equipped with standard RJ45 standard network cable interface.

Details

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Frequency response: 20HZ-20KHZ

Gain: 6 levels of gain adjustable

Bass Cut: 150Hz, 18dB/Octave

S/N: 65dB, 1KHz at 1Pa

Power supply method: PoE IEEE802.3af

Output interface: standard Ethernet interface

DANTE network: RJ45 connector, 100Mbps or above, CAT5 or CAT6 or above

Indicator light: LED multi-color adjustable status indicator light

Equalizer: 4-band parametric equalizer, set through TDM software

Power consumption: 2.3W

Weight: about 715g

Overall size (mm): length 148*width 115*height 233
