TDN2

Desk Microphone with Dante Network Output

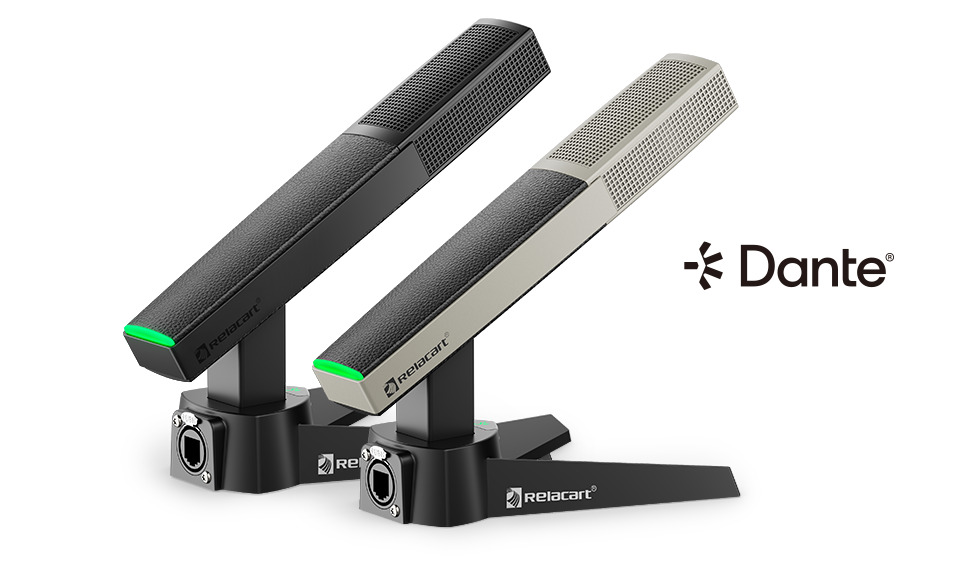

TDN2 is a desktop conference microphone with Dante interface. It adopts a new square microphone tube and a condenser supercardioid capsule to accurately pick up the sound, reducing the interference of ambient noise. The V-shaped base spreads the weight of the microphone more evenly, making it more stable on the table. To connect Relacart TDM  digital control software by a Cat5 network cable to enable the microphone to have IP address visualization and customize the microphone's low cut, EQ, light color and volume. The above settings can be copied directly from certain microphone to another through the software. Unique troubleshooting function, when press the CALL button the LED light of the microphone will flash, and the position of the microphone can be quickly found.

Product Description

TDN2 is a desktop conference microphone with Dante interface. It adopts a new square microphone tube and a condenser supercardioid capsule to accurately pick up the sound, reducing the interference of ambient noise. The V-shaped base spreads the weight of the microphone more evenly, making it more stable on the table. To connect Relacart TDM  digital control software by a Cat5 network cable to enable the microphone to have IP address visualization and customize the microphone's low cut, EQ, light color and volume. The above settings can be copied directly from certain microphone to another through the software. Unique troubleshooting function, when press the CALL button the LED light of the microphone will flash, and the position of the microphone can be quickly found.

Details

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Frequency Response: 20Hz-20KHz

Gain adjustment: 6-level gain adjustable

Bass Cut: 150Hz, 18dB/Octave

Signal-to-noise ratio: 65dB, 1KHz at 1Pa

Base power supply mode: POE IEEE802.3 af

Output interface: standard Ethernet interface

DANTE network: RJ45 connector, above 100Mbps, above CAT5 or CAT6

Indicator light: LED multi-color adjustable status indicator

Equalizer: 4-band parametric equalizer, set by control software

Microphone up and down adjustment angle: 48 degrees

Power consumption: 2.3W

Weight: about 800g

Overall size (mm): length 225*width 135*height 95/220 (minimum angle/highest angle)

Colour: Black/Champagne gold


Support

Operation manual

TDN2 datasheet

Product Brochure

TDN2 brochure
