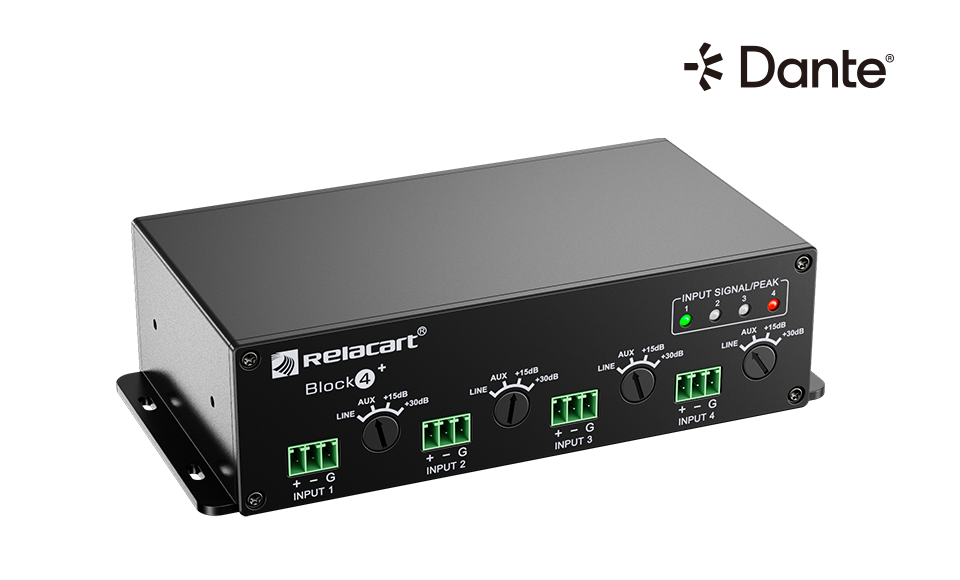

The Block 4+ is a powerful and easy-to-use Dante audio converter, offering 4 microphone inputs (with 48V phantom power) / 4 line-in / 4 aux-in and 4 line out. It provides a complete audio processing solution for optimizing specific venues and systems. Ideal for Dante audio applications, as well as for upgrading traditional audio systems.
Product Description
The Block 4+ is a powerful and easy-to-use Dante audio converter, offering 4 microphone inputs (with 48V phantom power) / 4 line-in / 4 aux-in and 4 line out. It provides a complete audio processing solution for optimizing specific venues and systems. Ideal for Dante audio applications, as well as for upgrading traditional audio systems.
Details

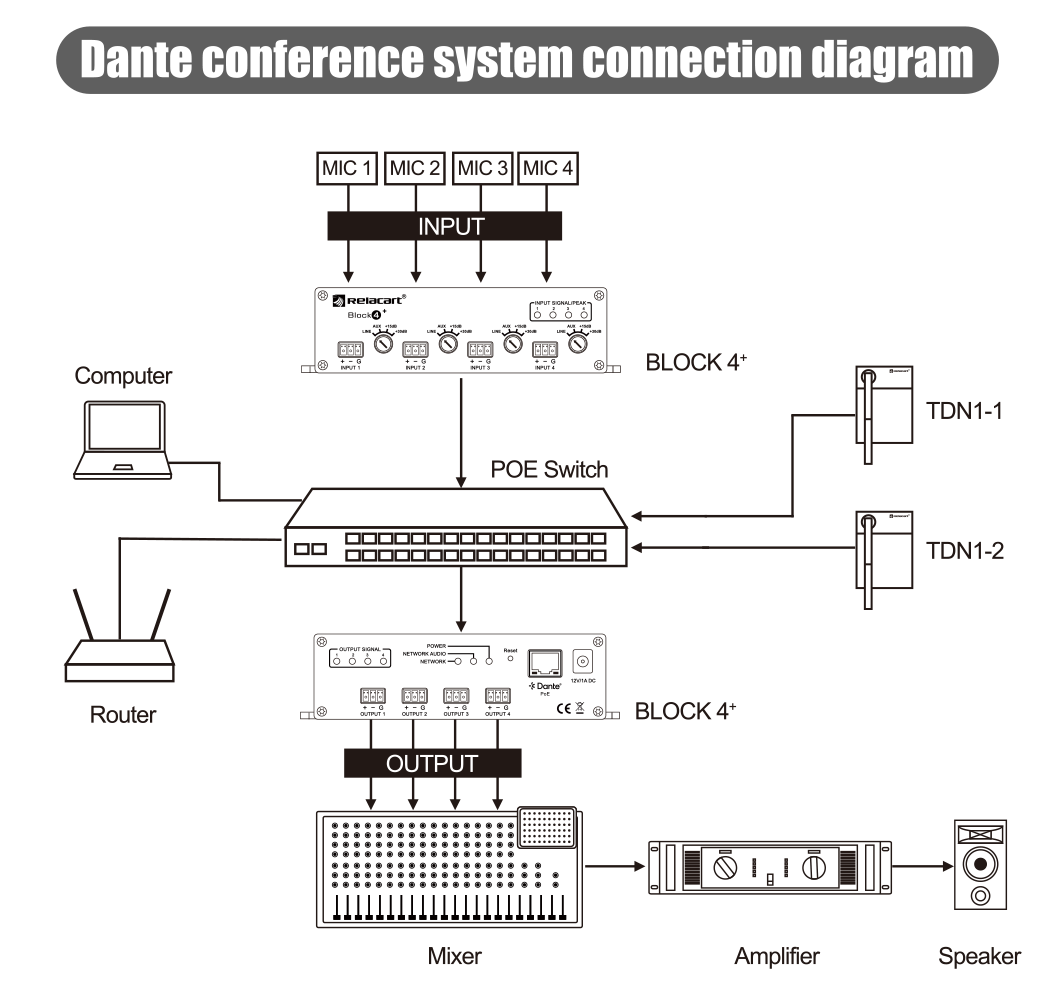

Connection diagram
Frequency Response
Polar Pattern
Specifications
Package Contents
Weight: 0.5KG
Audio Interface: Standard 3.81mm pitch plug type connection terminal
Audio Frequency Response: 20Hz~20KHz +2dB
Dynamic Range: 98dB, Analog to Analog
Input channel gain:
Nominal: LINE / AUX / +15dB / +30dB
Gear level: -10dBV / 0dBV / +15dBV / +30dBV
Max input: +16dBV / +7dBV / -8dBV / -22dBV
48V status: 48V status / OFF/ OFF / ON / ON
Input impedance: 2.2kΩ
Ouput level: +16dBV MAX
Output impedance: 600Ω
output channel: AUX: +10dBV
Power consumption: 4W
DANTE Network: RJ45 connector, CAT5E or CAT6 cable over 100 Mbps
Dimension: 166 x83 x 44.6(mm)
Power supply: PoE IEE802.3af standard,DC 12V/1A DC power supply
