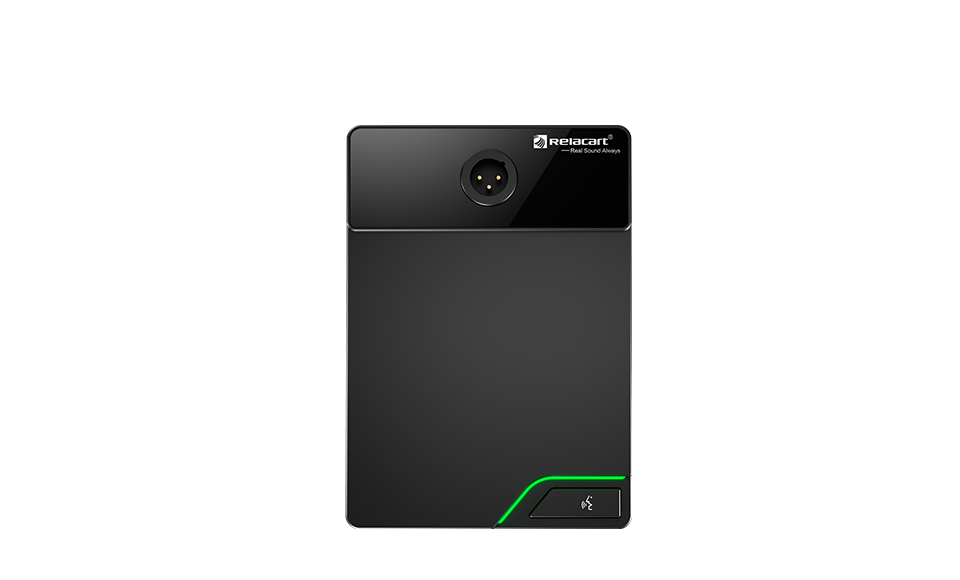

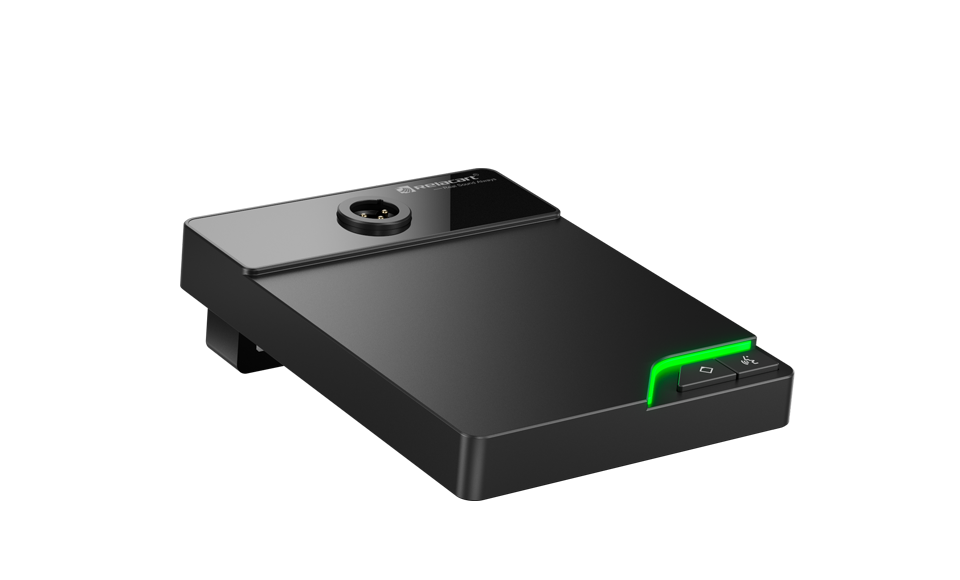

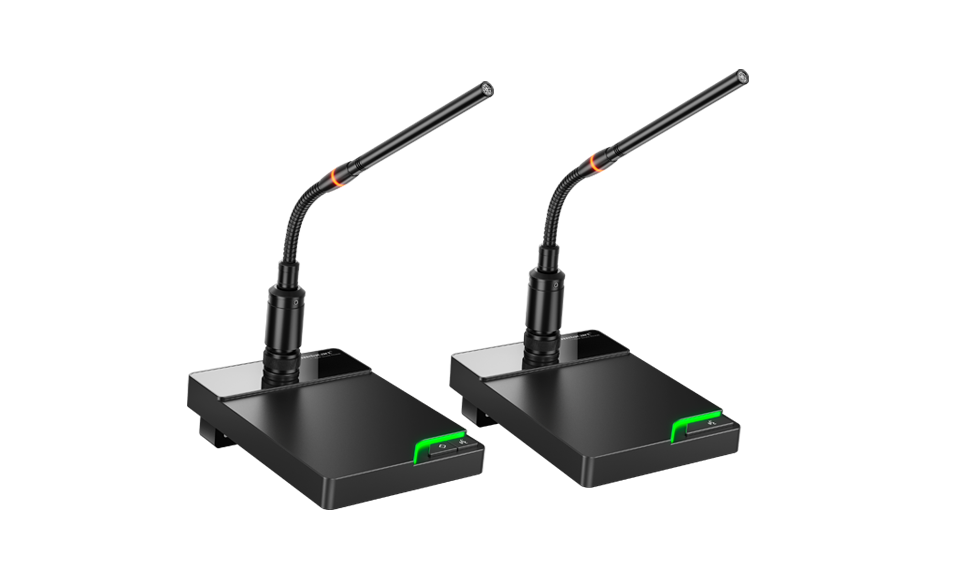

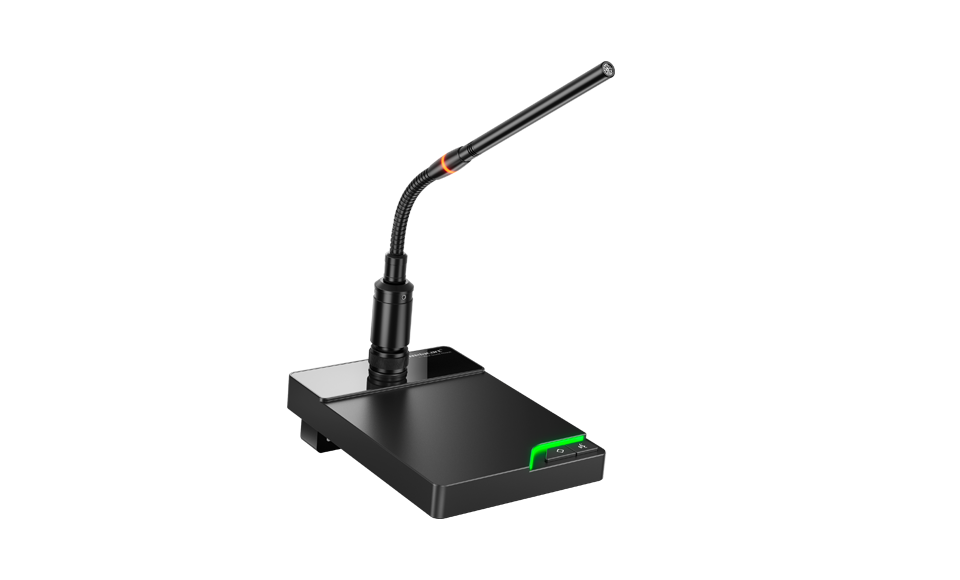

CS-N1 C/D

Professional Wired Digital Conference Unit
Inquire Now Next Product

CS-N1 C/D

Product Description Details Components Accessories Support

Product Description

CS-N1 C/D can freely replace a variety of adaptive microphones. The newly developed voice control mode allows participants to start the microphone unit to speak without manual operation and speaking directly to the microphone. It is simple to use and fully applicable to various conference occasions.

Details

Specifications

Package Contents

Connection diagram

Polar Pattern

Frequency Response

Frequency Response:  50Hz-20KHz

Sensitivity:  -20dB+/-3dB(0dB=1V/Pa,f=1KHz)

SPL:  110dB(THD<5%, f=1KHz)

S/N(A weighted): >100dBA(THD<1%,f=1 KHz)

Distortion: <0.1%

Power Supply:  24V DC(supplied by the central controller)

Power Consumption: 0.72W

Unit Interface:  RJ45/CAT5 network port

Dimension (mm):  170 (L)×120 (W)×270 (H)

Weight:   Approximately 670g

Color:  Nickel black

Button:  Priority & on/mute (chairman)  on/mute(delegate)


Accessories

internet cable

Category 5 network cable

internet cable

Tee connector (black/white)

Tee matching terminal

Tee connector (black/white)

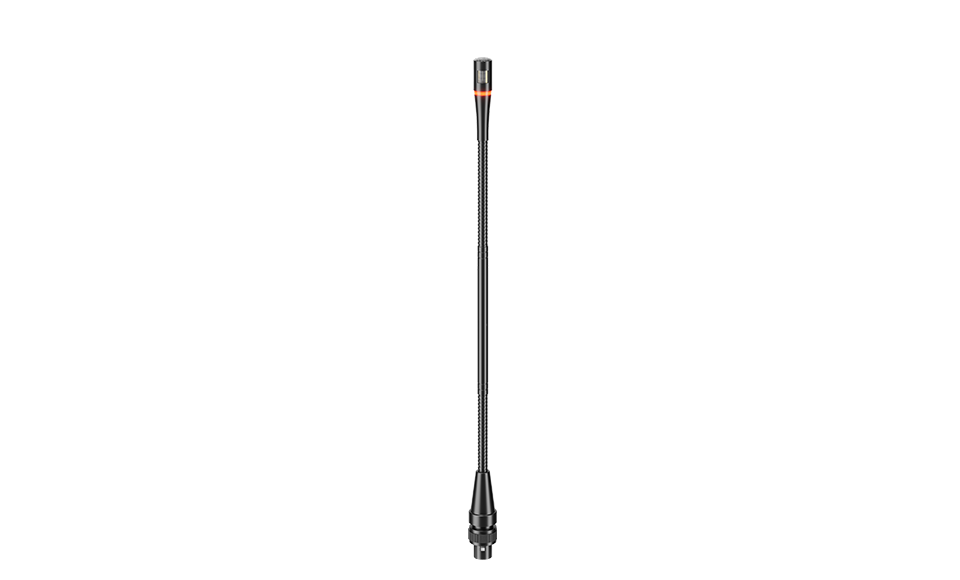

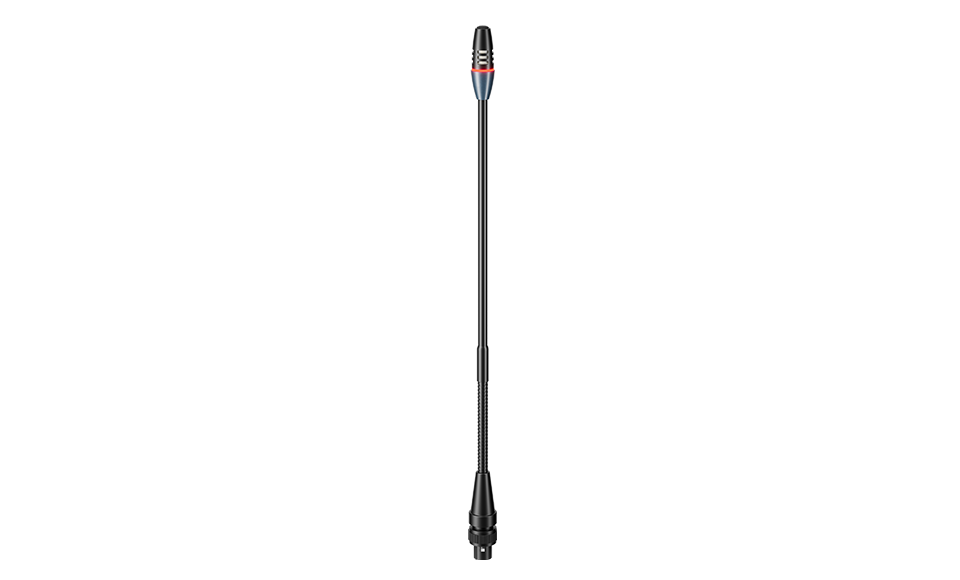

Gooseneck Microphone

GF-902

Gooseneck Microphone

Gooseneck Microphone

GF-901

Gooseneck Microphone

Gooseneck Microphone

GF-501

Gooseneck Microphone

Gooseneck Microphone

GF-301

Gooseneck Microphone

Gooseneck Microphone

GF-101

Gooseneck Microphone

Detachable Square Microphone

GF-933

Detachable Square Microphone

Detachable Square Microphone

GF-923

Detachable Square Microphone

Gooseneck Microphone

CF-100

Gooseneck Microphone

After-sales & maintenance Contact
Submit directly here or contact customer service by phone/mail

Support

Operation manual

CS-N1C D datasheet
