Home > Products-zong > Products > Conference Discussion System > CS Wired Conference System Series > Delegate Unit

  • Delegate Unit

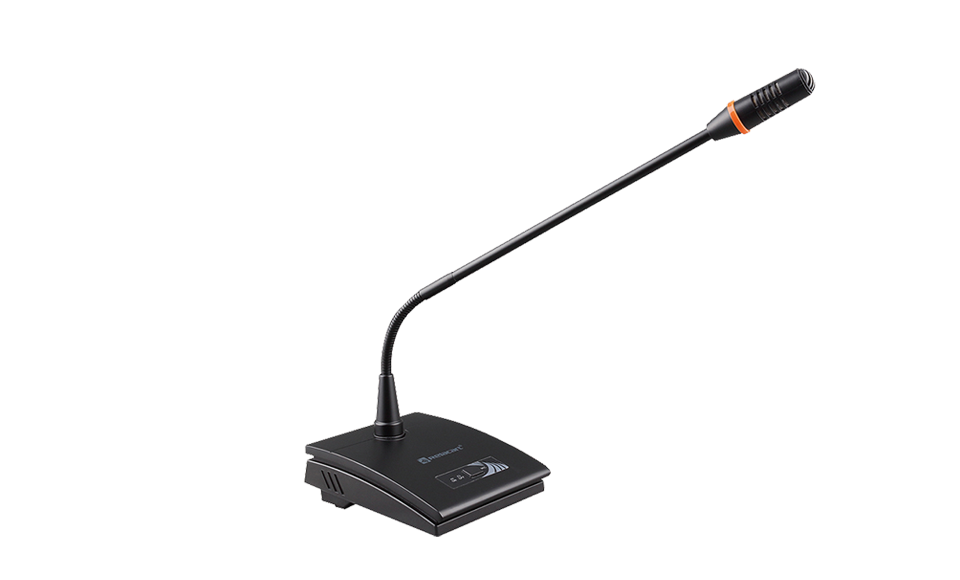

CS-100D

Delegate Unit

CS-100D is an economical desktop microphone with a metal base for various conference scenes

Inquire Now Next Product

CS-100D

Details Components Support

Details

Specifications

Package Contents

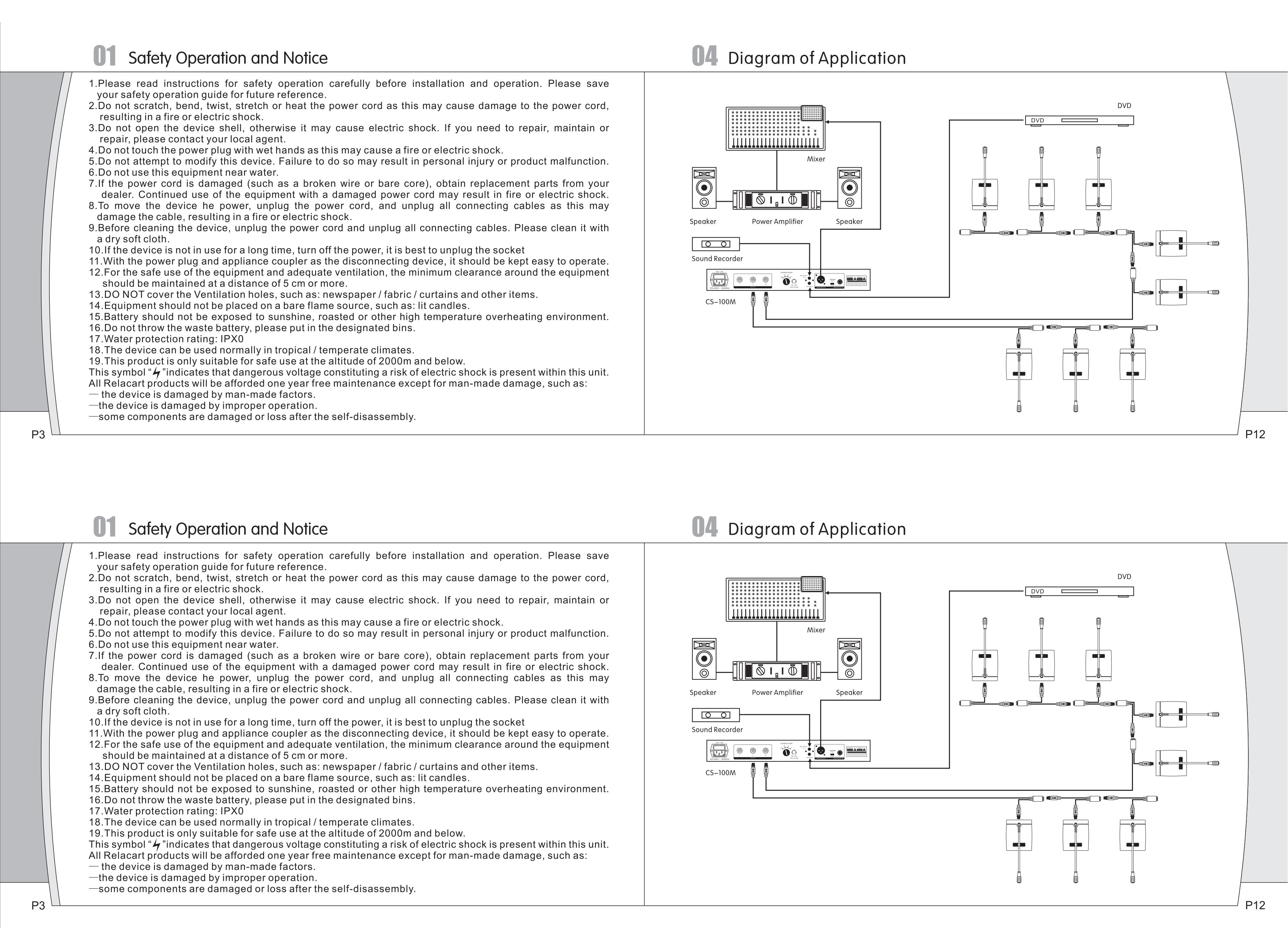

Connection diagram

Polar Pattern

Frequency Response

  • Power Supply: DC12V

  • Microphone Type: Condenser Cardioid

  • Element: Fixed-charge plate, permanently polarized condensers

  • Frequency Response: 55Hz–15KHz±2dB

  • Sensitivity: 21dBV/Pa

  • Signal-to-Noise Ratio: >98dBV

  • Total Harmonic Distortion (THD): <0.2%

  • Maximum Current Consumption: 40mA

  • Output Power: 2 × 300mW

  • Installation: Tabletop

  • Microphone Length (Selectable): 340mm / 420mm (default) / 480mm

  • Base Dimensions (W×H×D): 115×43×140mm (without soft tube microphone)

  • Speaker Unit Button: Speak

  • Color: Black (default) / Silver

  • Weight: 0.8kg (800g)



Delegate Unit

After-sales & maintenance Contact
Submit directly here or contact customer service by phone/mail

Support

Operation manual

CS-100D datasheet
