Home > Products-zong > Products > Conference Mic and Discussion System > CS Wired Conference System Series > Conferencing Discussion System

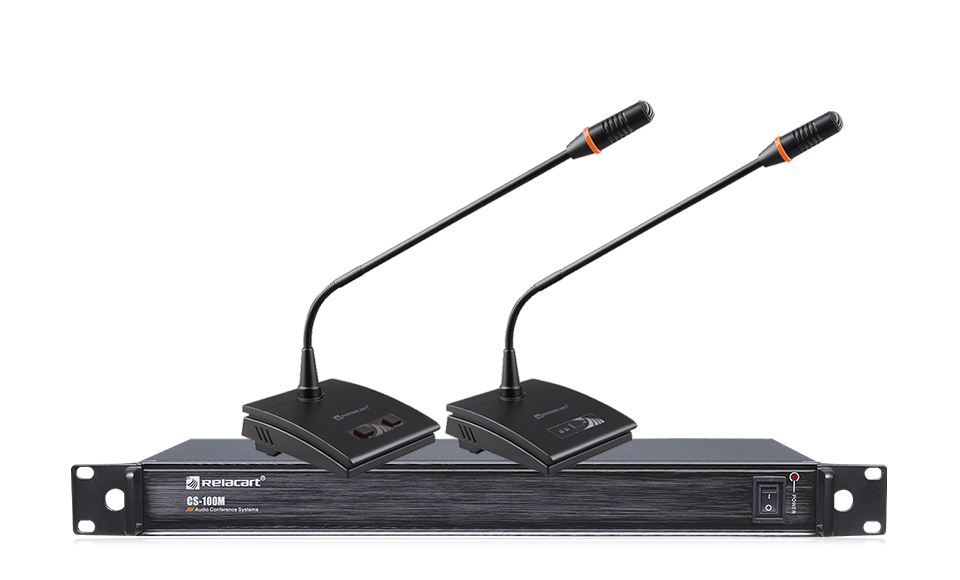

CS-100

Conferencing Discussion System

Inquire Now Next Product

CS-100

Product Description Performance Introduction Technical Specifications Components Accessories FAQ

Product Description

The CS-100 is a compact and affordable audio conference system, yet meets all essential requirements for audio discussion applications. Easy installation and simple operation for variety of mini/medium type conferencing rooms.

Performance Introduction

Exstensible Function

Audio insertion function for connecting external audio processing equipment or telephone couplers.

Flexible Speech

Active 1/2/3 microphones in a time,AUTO speaking mode,chairman unit has priority to override all delegate units.

Chassis Standard

EIA standard 1U chassis.

Applicable Scene

High-quality speech intelligibility is ideal for a variety of small and medium-sized meetings.

Conference Technology

Adopt advanced conference technology, in line with IEC60914 international standard.

Expandable Microphone

Control up to 60 speaking units.

Technical Specifications

Chassis size: EIA standard 1U

Power supply voltage: AC100-240V 50/60HZ

Maximum power consumption: 45W

Frequency Response: 65Hz-15KHz

Signal-to-noise ratio (S/N): >85dB

Distortion (T.H.D):<0.7%

Audio input: LINE IN: 0dBV (f=1KHz, THD<0.3%)

Audio output:XLR: 8dBV、6.3mm: 7.5dBV、RCA: 4dBV

Chairman/Delegate Unit Interface: Anti-dropping 9-pin aviation plug

RS-232 control interface: can be connected to intelligent central control and camera tracking system

Dimensions (mm): 410(W) x 43(H) x 206(D)

Weight: about 2.3kg

Components

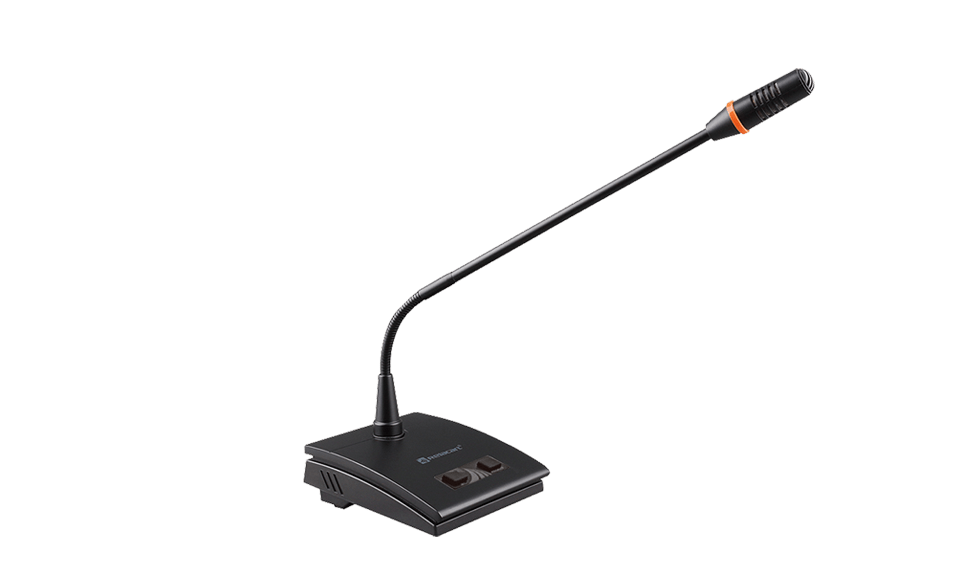

CS-100C

Chairman Unit

CS-100 C/D

Wired Conference Discussion System

Accessories

EXP-112

Conference System Expansion Power Supply

CB-S2

Pop-up Floor Box

MC9

9 Pins Connecting Cable for Conference System

MC9-15

9 Pins Connecting Cable for Conference System

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

cs-100Operationmanual

Product Brochure
