R-14D

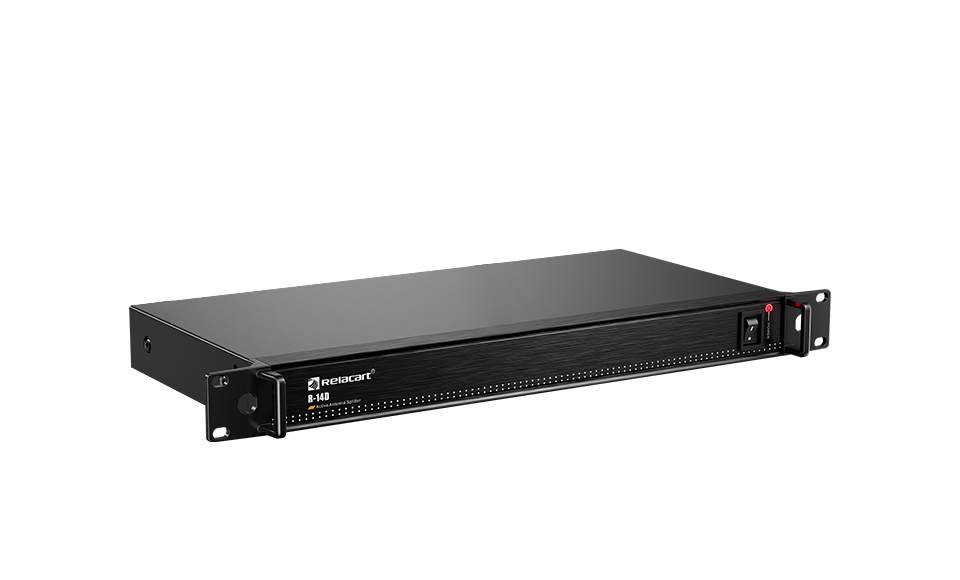

Wideband 4-Channel Antenna Distribution System

The R-14D has a dual-channel 1-point 4-antenna distribution system with low internal tone distortion. Stable features, fully suitable for UHF high-bandwidth wireless system work, support the application of 2-4 Relacart wireless series or other series of wireless systems.

Inquire Now Next Product

R-14D

Functional Features Details Components Support

Functional Features

Brand New Design

Support one pair antenna, two to four pieces of Relacart wireless system or other brand wireless system. Simplify the antenna setup and increase system working efficiency

High Precision Circuit

Precise circuit design, ultra low noise, low inter modulation distortion, can eliminate the interference from mixed frequency when multiple frequencies are working simultaneously.

Stable signal reception

Antenna input jack compatible with R-32AUand R-22AU directional antenna, enabling large area, multiple direction and far distance wireless transmission, make sure the signal reception is stable.

Details

Specifications

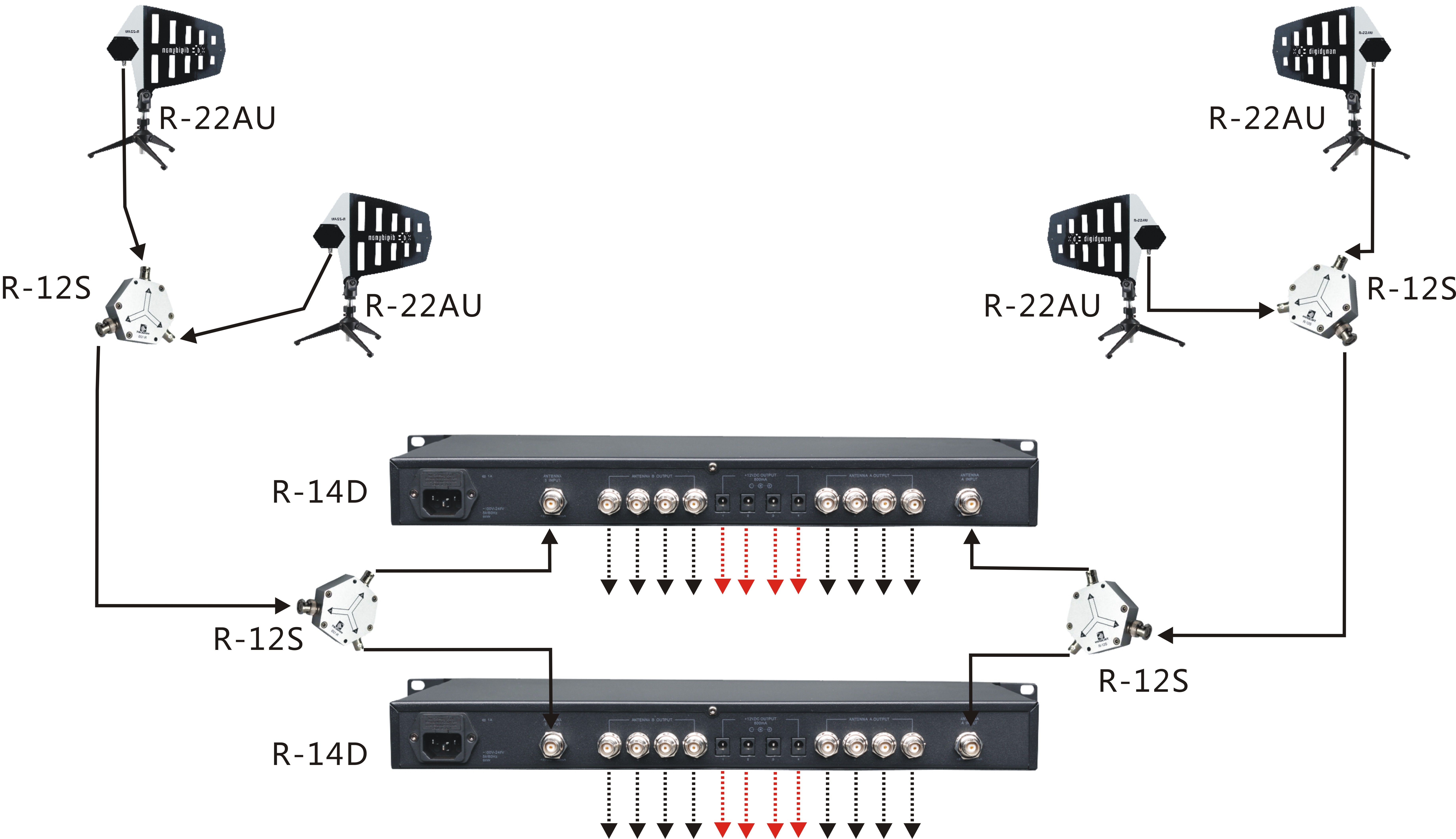

Connection Diagram

Frequency Range:500 – 950 MHz

Gain of Output:0 dB±1dB

Input Impedance:50Ω

Output Impedance:50Ω

Power Supply of Antenna Input:+8V DC

Power Supply of Receiver:Each antenna input port supplies bias +12V DC, 150mA max.

Current Drain:800mA

Power Supply:100—240V, AC 50/60 Hz

Dimension (mm):410(W) X 43(H) X 206 (D)
