  • Wide-band Directional Antenna

  • Wide-band Directional Antenna

R-32AU

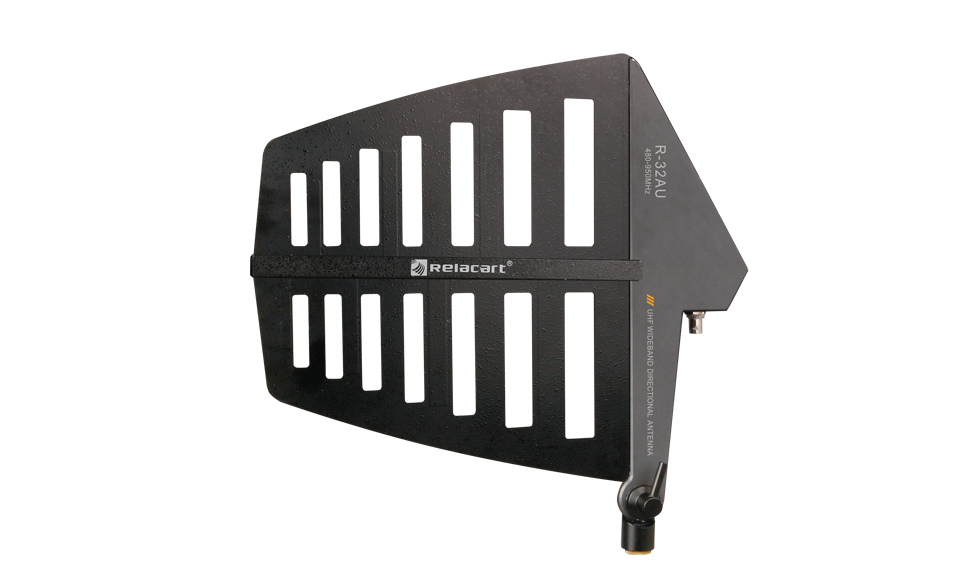

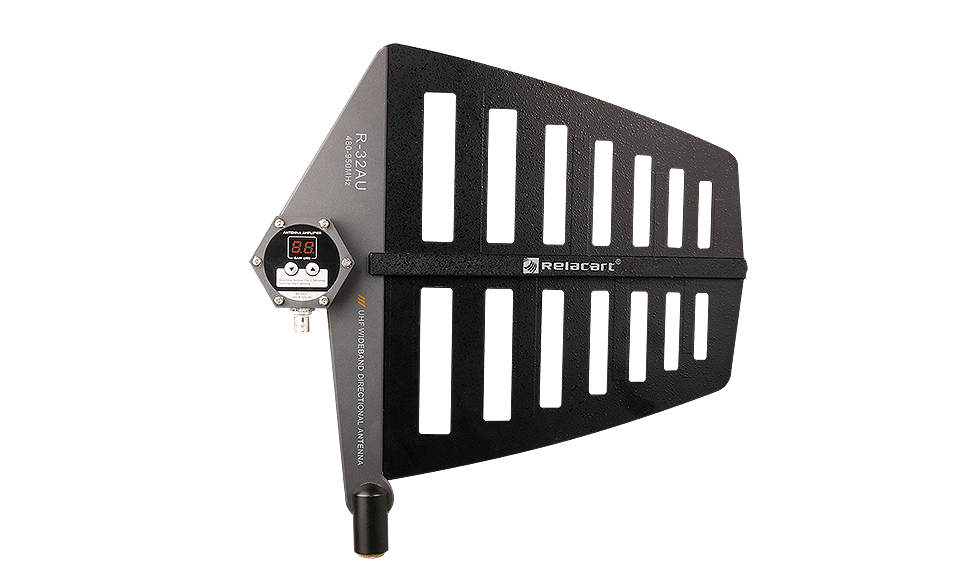

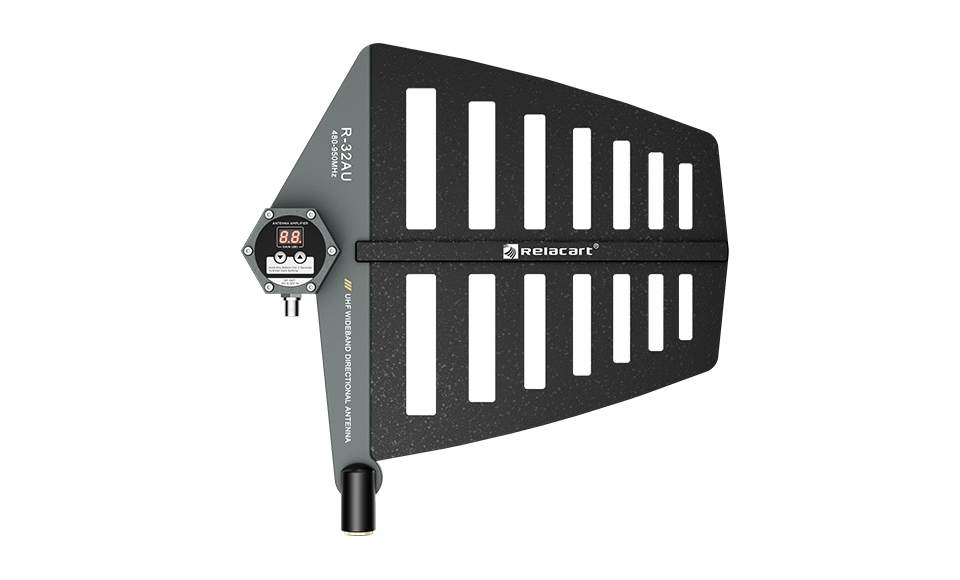

Wide-band Directional Antenna
Inquire Now Next Product

R-32AU

Product Description Details Components Accessories Support

Product Description

The R-32AU's reliable performance and resistance to wear and tear provide the best possible reception within the required coverage. The gain setting is used for enhanced amplification of signal reception. The R-32AU can be mounted on a mic stand, suspended from the ceiling, or attached to the wall using an integrated rotatable stand.

Details

Specifications

Package Contents

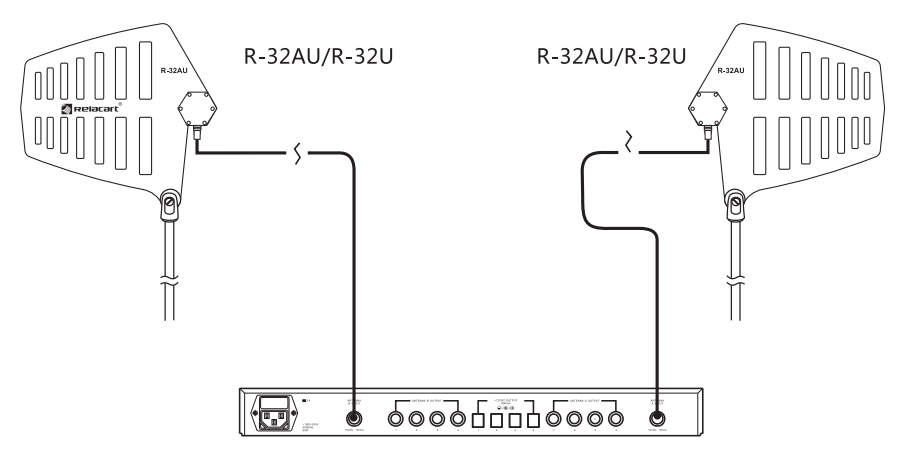

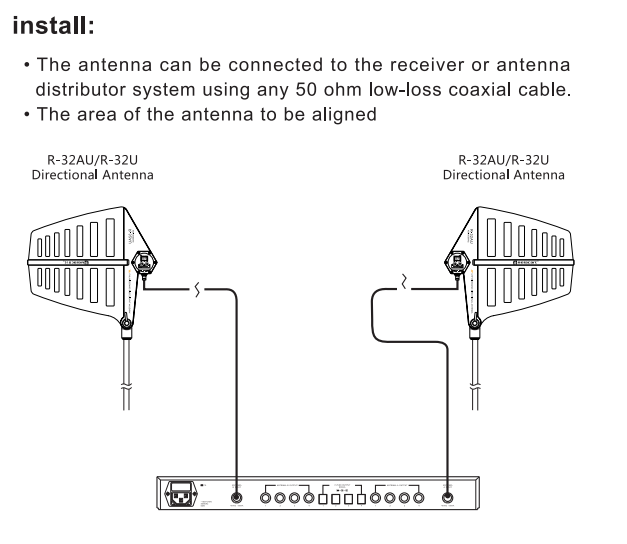

Connection Diagram

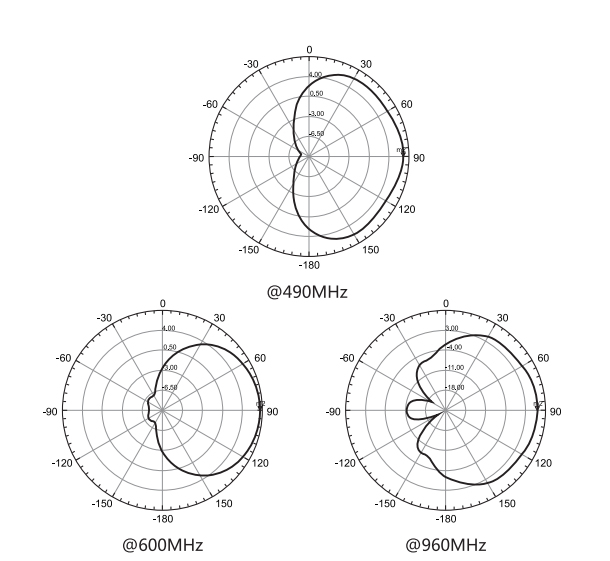

Polar Pattern

Frequency Response

Antenna Frequency Range: 480MHz~950 MHZ

Amplifier Frequency Range: 480MHz~950 MHz

Antenna Directionality: Cardioid

Antenna Polarization Mode: line

Antenna Gain: ≥6.5dB

Antenna Standing Wave Ration: <2

Amplifier Gain: 0 to15dB

Amplifier Low Noise: <0.45dB

Amplifier OIP3: >38dBm

External Power Supply: 6-12VDC

Current: 75mA

Connector Port: BNC female

Dimensions (mm): 332(L)×304(W)×3(H)

Weight(g): Approximately 715g



Wide-band Directional Antenna

Accessories

Antenna Booster

R-20A

Antenna Booster

Power Supplier for Antenna

R-20P

Power Supplier for Antenna

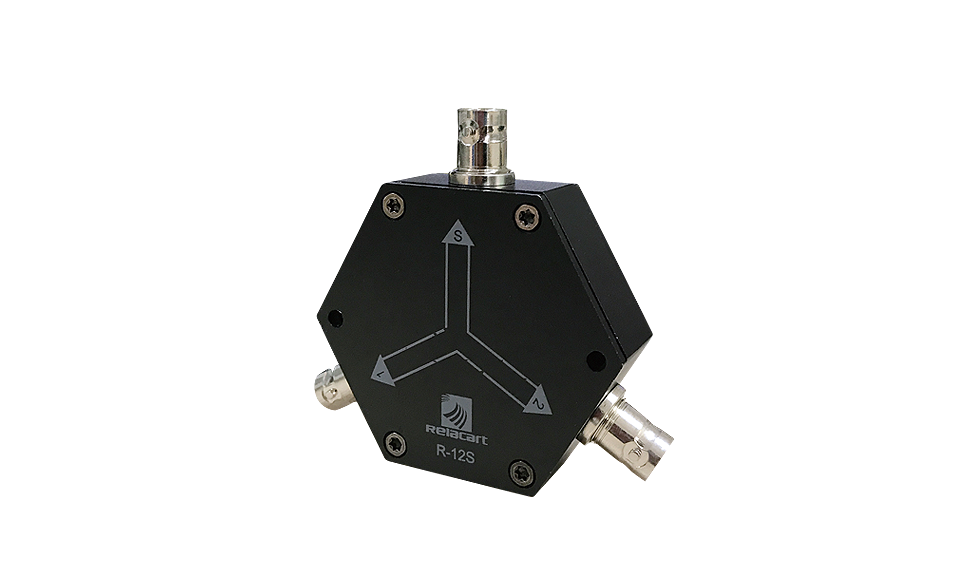

Antenna Divider

R-12S

Antenna Divider

After-sales & maintenance Contact
Submit directly here or contact customer service by phone/mail

Support

Operation manual

R-32AU R-32U Operation manual
