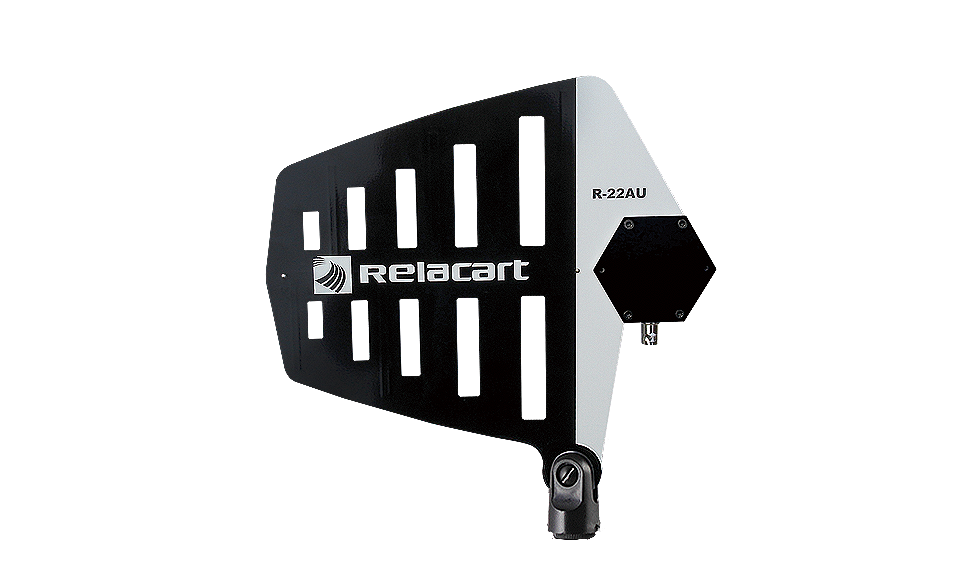

R-22AU

Wide-band Directional Antenna

Product Description Details Components Accessories Support

Product Description

The gain setting is used to enhance the signal reception. The R-22AU can be mounted on a microphone stand, suspended from the ceiling, or mounted on a wall using the integrated swivel stand.

Details

Specifications

Package Contents

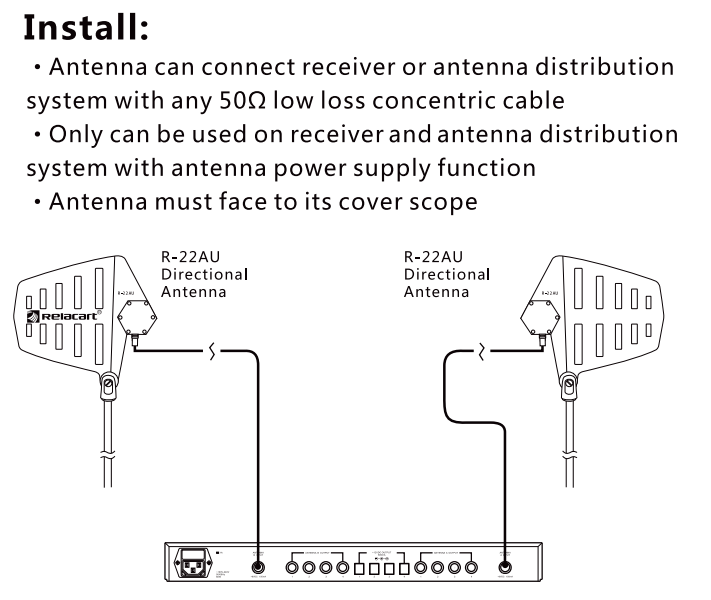

Connection Diagram

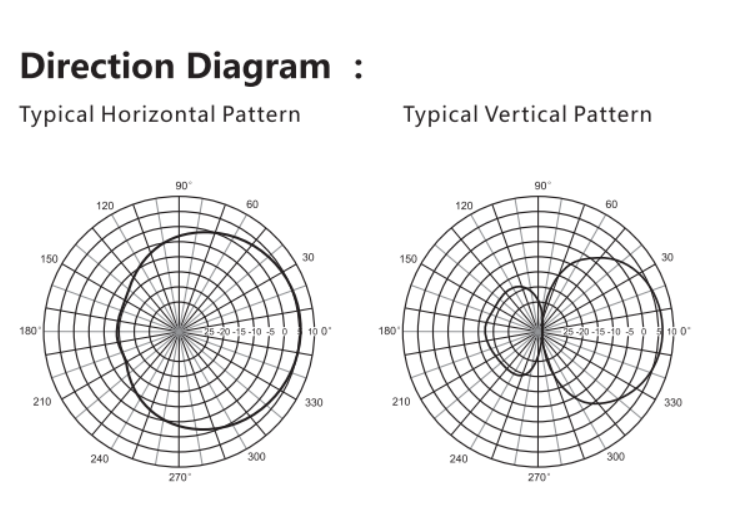

Polar Pattern

Frequency Response

Frequency Range:640-950MHz

Antenna Directivity: Cardioid

Antenna Polarization: Linear

Antenna Gain: ≥6dB

Antenna standing wave ratio: <2

Amplifier gain: 5/13dB

Amplifier noise floor: <1.8dB

Amplifier OIP:＞32dBm

Power Supply Mode: BNC, 8-12VDC

Current: 40mA

Connection Method: BNC

Dimensions (mm): 258×236×31

Weight (g): Approximately 220g

Wide-band Directional Antenna R-22AU

Components

R-14D

Wideband 4-Channel Antenna Distribution System

Accessories

R-20A

Antenna Booster

R-20P

Power Supplier for Antenna

R-12S

Antenna Divider

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

2801-317 R-22AU Operation manual
