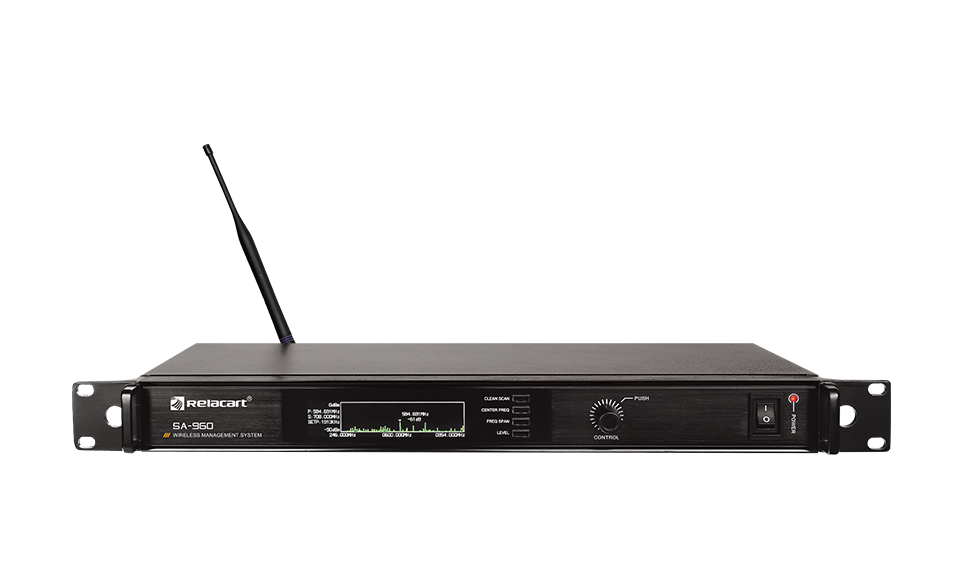

SA-960

Wirreless Spectrum Analyzer

Inquire Now Next Product

Product Description Functional Features Details Support

Product Description

SA-960 is a spectrum analyzer specially developed for wireless frequency management. The frequency is visualized and controllable, creating a stable wireless working environment for the scene.The ultra-wideband scheme is adopted, and the frequency scan is up to 960MHz, the on-site interference frequency is clear.

Functional Features

Instant signal reception

Receive the signal from the field radio.

Display sweep function

Real-time monitoring of wireless frequency status.

Details

Specifications

Main Frame Size: EIA Standard Rack 1U

Frequency Range: 240MHz-960MHz

Step Frequency: 1-720MHz

Amplitude Range: +10~ -110dBm

Interface: BNC

Power Supply: DC 12V /1000mA

Dimensions(mm): 410(W)×206(D)×43(H)

Weight: About 2Kg

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

SA-960 Operation manual

Product Brochure

SA-960 brochure
