Portable Spectrum Analyzer

Product Description Details Performance Introduction Support

Product Description

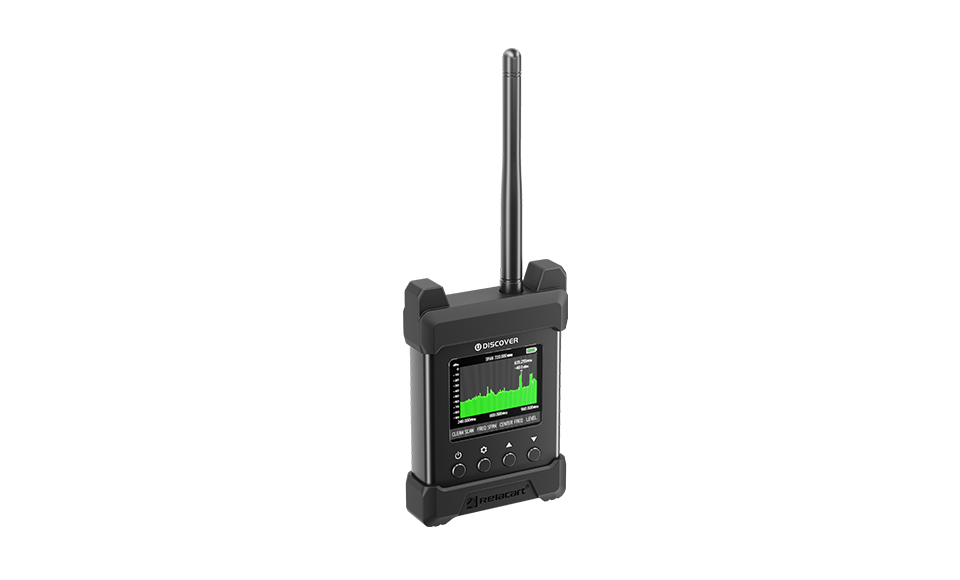

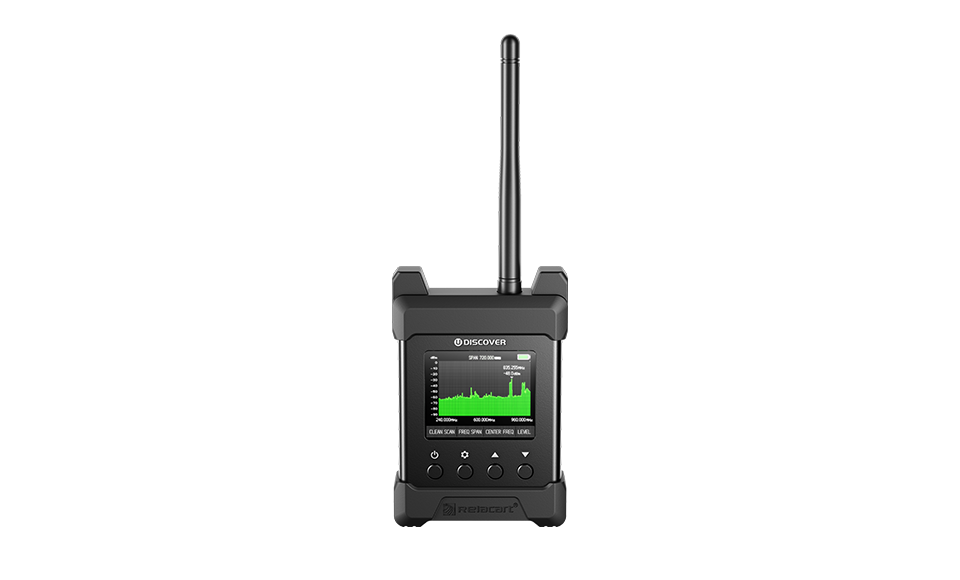

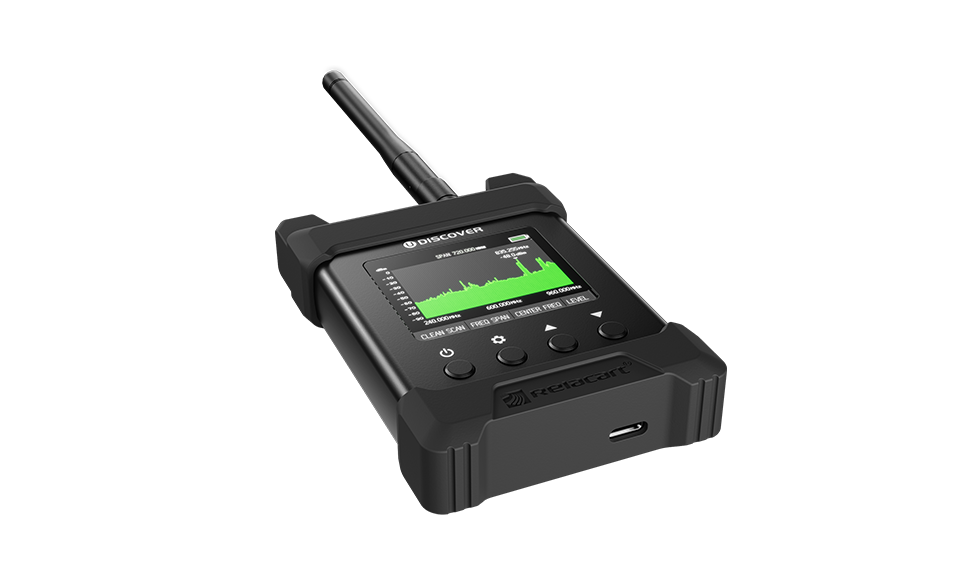

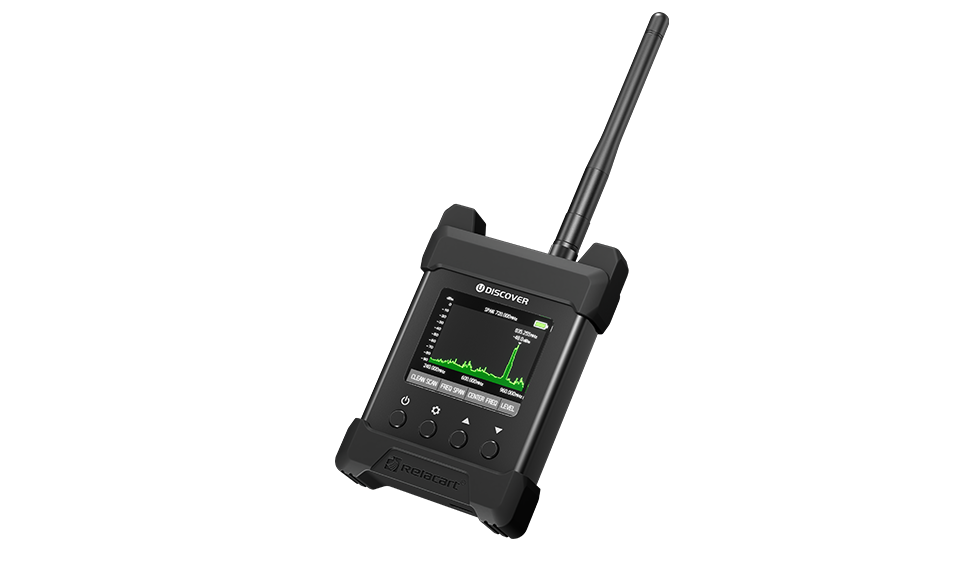

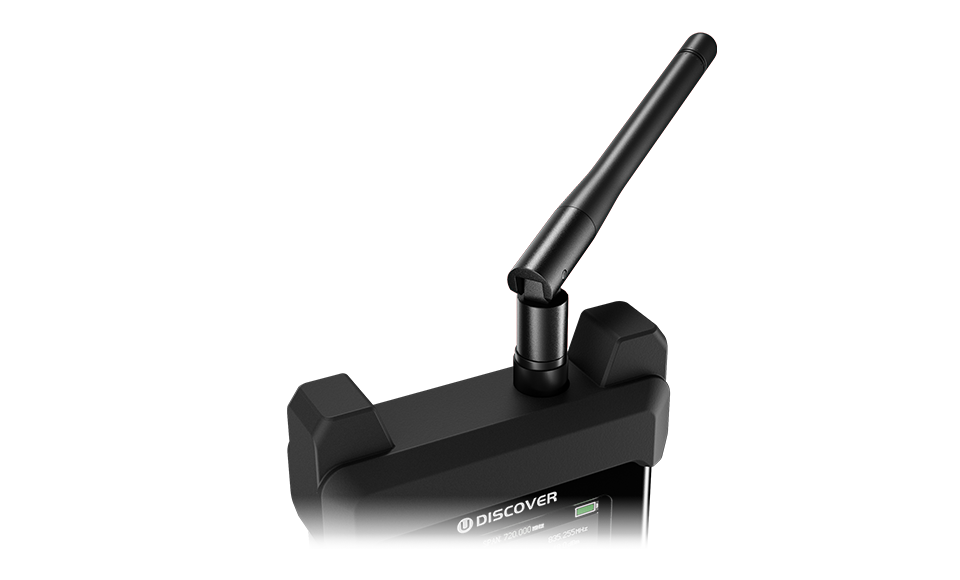

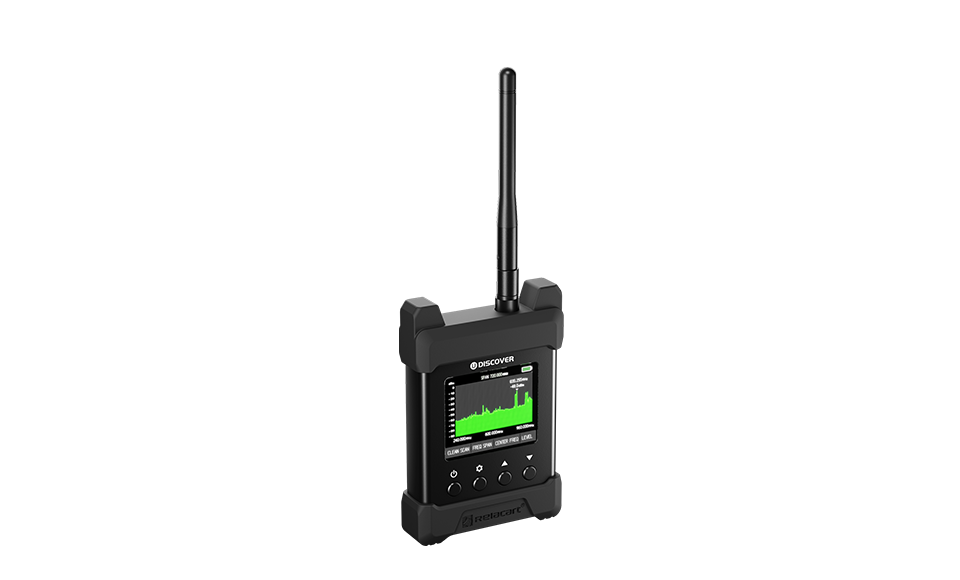

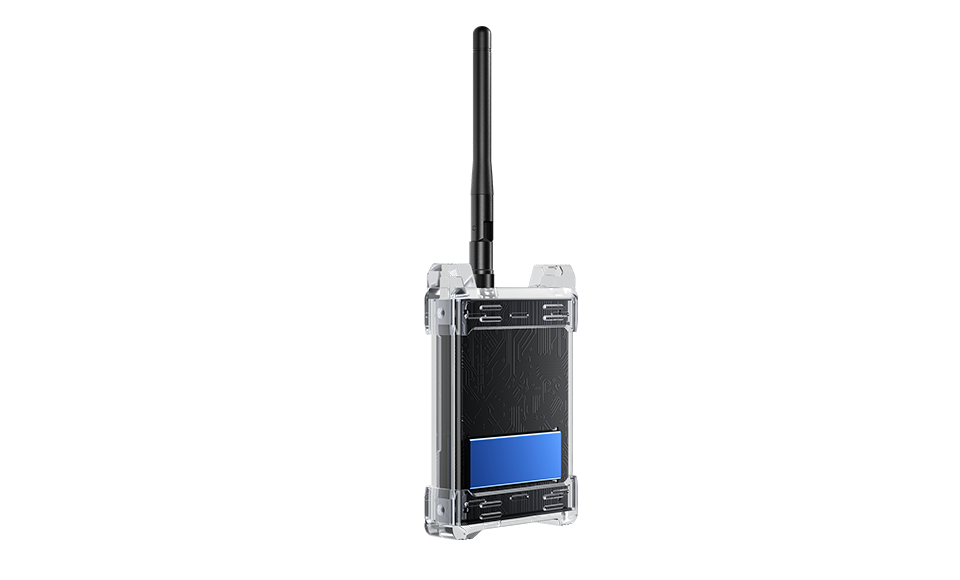

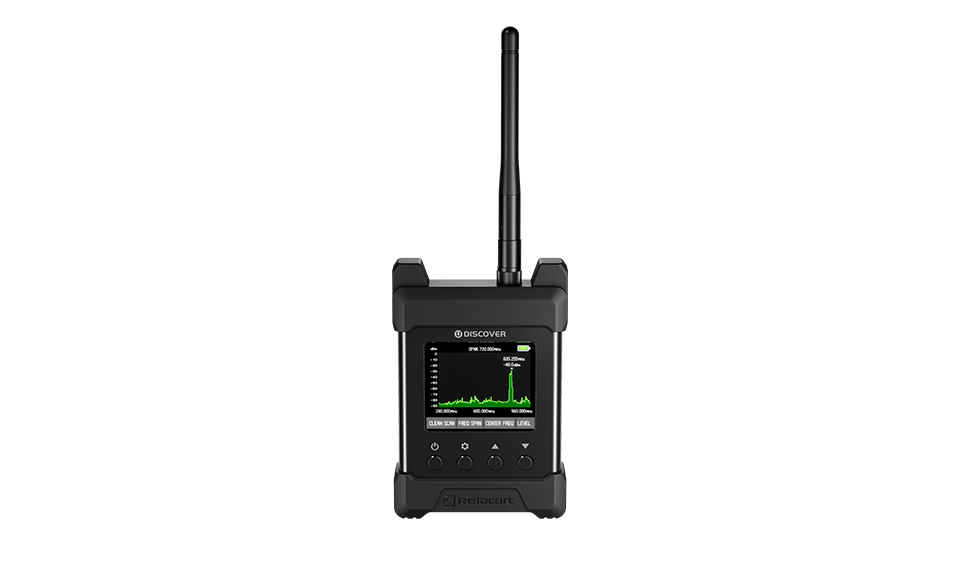

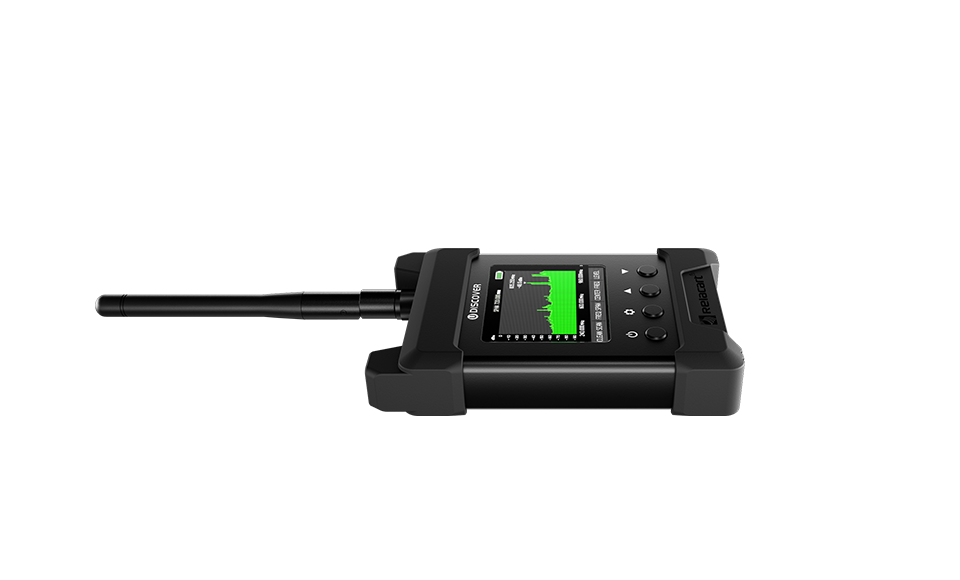

U.Discover is a portable handheld spectrum management controller that adopts an ultra-wideband solution and can scanfrequencies from 240MHz-960MHz. it is equipped with a HD screen to display frequency details, making it clear at a glance the on-site interference frequencies. It can create a stable wireless working environment for the site, making the site frequency visible and controllable.

Details

Connection diagram

Polar Pattern

Package Contents

Specifications

Frequency Response

Input Frequency Detection range:240~960MHz

Input Frequency Detection Bandwidth:1~720MHz Input Signal Amplitude

Input Frequency Step:1MHZ

Spectrum Dynamic range:90dB

Amplitude Range:+10~-110dBm

Display: TFT

Input Interface: SMA female

Current Consumption:65mA

Built-in Power Supply: Built-in 3.7V/1000mA lithium battery

Charging Interface: TYPE-C standard USB 5V charging

Working Temperature:0°C to +45°C

Dimensions(mm):72 (W)x 23 (D)x204 (H)(*Without antenna 108)

Weight:150g

Performance Introduction

Compact and portable

The overall shape is exquisite and compact, and can be carried in a backpack to create a stable wireless working environment anytime and anywhere.

Frequency visualization

Can detect frequency details in the range of 240MHz-960MHz and display them on a clear and bright screen, enabling detection of on-site wireless working environments.

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

U.Discover Quick guide

U.Discover datasheet

U.Discover Manual

Software

U-Discover windows Software
