R-12S

Antenna Divider

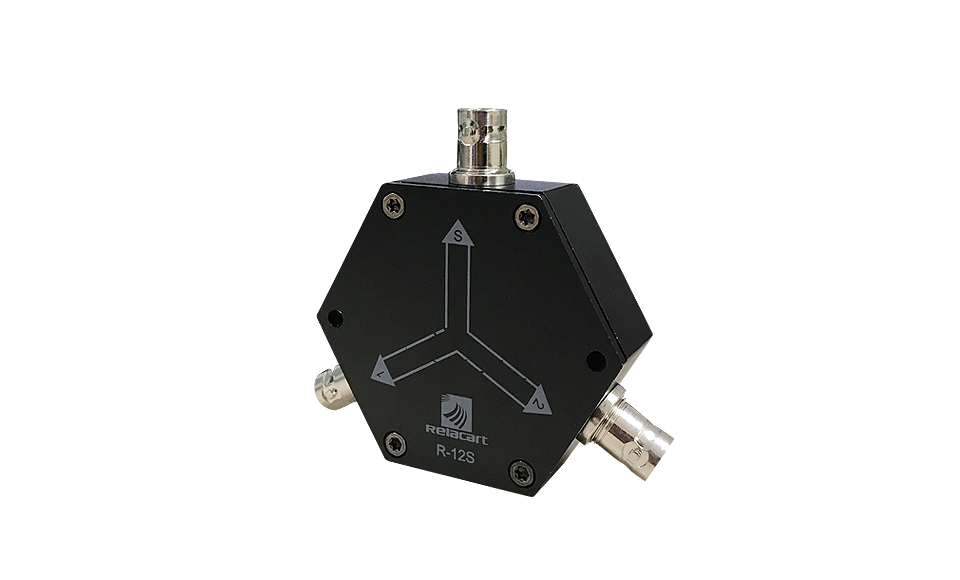

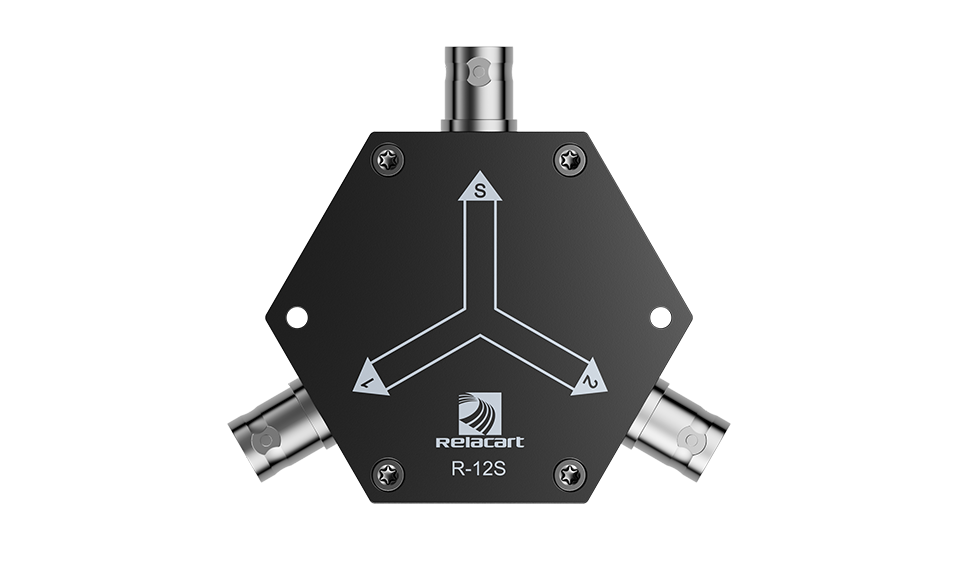

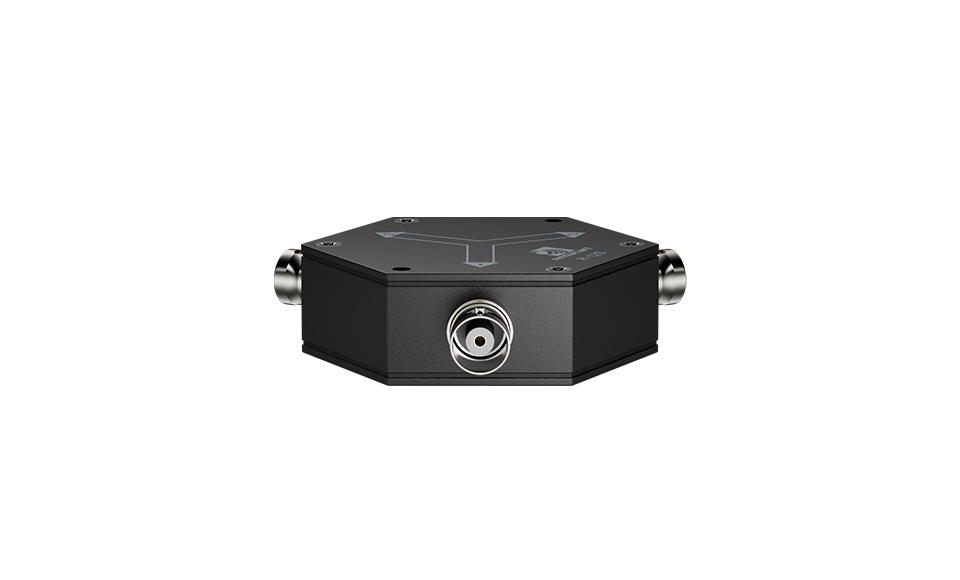

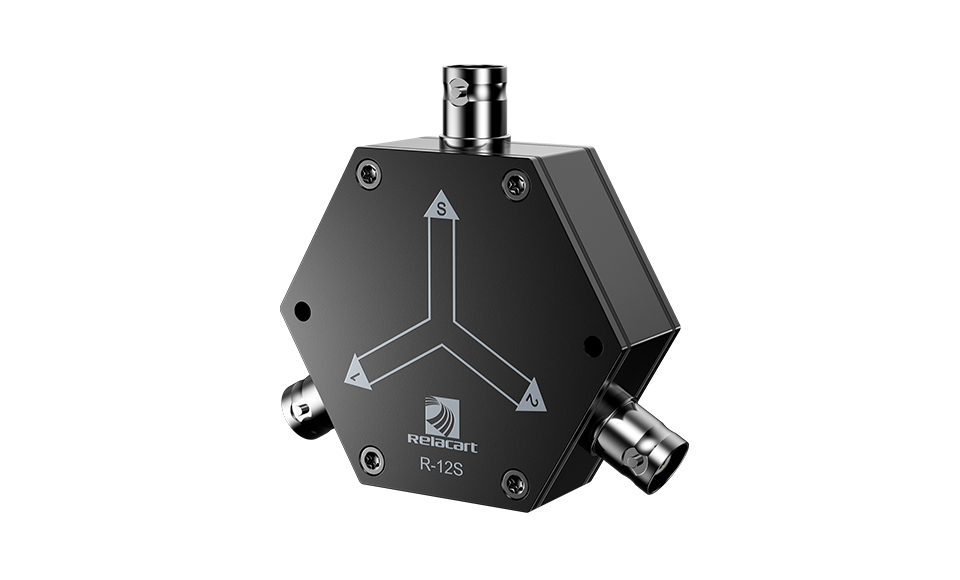

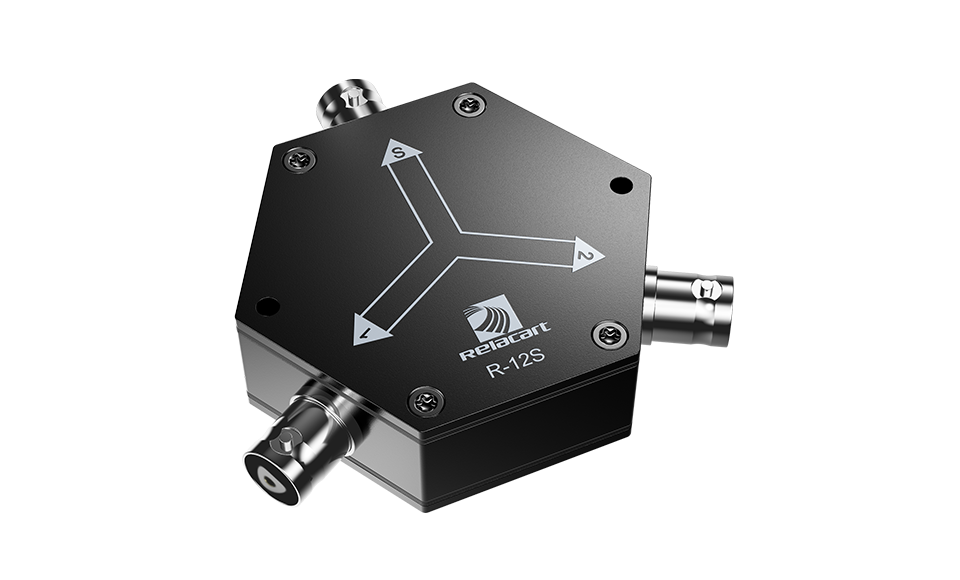

Relacart R-12S Antenna Divider is a versatile RF accessory designed to split one RF signal into two outputs or combine two RF signals into one output. It also functions as an RF signal amplifier, transferring offset voltage to the front for enhanced signal stability, making it an ideal choice for professional antenna systems.

Inquire Now Next Product

R-12S

Product Description Details Support

Product Description

R-12S can separate 1 RF signal to 2 RF signals output or combine 2 RF signals to 1 RF signal output. Also it is a RF signal amplifier can transfter the offset voltage to front, is a ideal antenna system accessory.

Details

Specifications

Package Contents

Connection diagram

Polar Pattern

Frequency Response

Frequency range: 400MHz-1000MHz

Abatement: -3.5dB, ±1dB

Isolation: >-20dB

Impedance: 50 ohms

Maximum passing voltage/current: +50V DC/1.50A

Interface: BNC

Size: 65mm(W)x50mm(L)x20mm(H)

Weight: about 35g

Antenna Divider

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

R-12S-Operation-manual
